found a free hour to draw an image of the ride that swarming in my head

all measurements r taken and all parts r depicted scaled 1:10

e.g. found out that the wheel base is gotta be 1735mm +-10 depending on chain, also i gunna have lots of space for turbo thats bloody good to know

well i will compare the data with end result

there gunna be a really evil mask but me thinks i'll set up the headlights she had come with and a mask will be created later

http://i1175.photobucket.com/albums/...r/DSCF4478.jpg

the seat subbie side panels were made about a month ago for the old frame so the seat i a tad long - the tank was supposed to go 100mm into the subbie, now it won't, ending where the rear bracing is
perhaps i'll shink it somehow haha

http://i1175.photobucket.com/albums/...r/DSCF4477.jpg

trigger wheels modded, an ally hub made just need to sort it out where to jam in the vr sensor? me thinks on the pressure sensor where else? will the vr sensor work there considerin the oil?

http://i1175.photobucket.com/albums/...r/DSCF4484.jpg

another question probably to slingy, the fixin pin on the crank is about 90 before the tdc right? - marked on the piccie
so if i relocate the vr sensor, how crucial the angle, can't it be adjusting later by correcting the retard?

http://i1175.photobucket.com/albums/...r/DSCF4483.jpg

oil shouldn't bother the vr sensor, its just a coil of wire around some steel with a magnet. I have a few over here that are probably alot smaller if your interested in something that might be easyer to fit, post up the dimentions of yours and I'll scratch through a box of bits and see if I have something a little slimmer.

thanks mate! not the sensor but its mount...
actually i meant the density of oil between the wheel and sensor can affect it?

Surt, stop fucking around pack all your bikes in a sea container..and Fuckin move to Oz..shit man there are a shit load of people on here that will adopt you.I even named my pet dingo surt.cause he's always out in the shed rootin around .. .think of the postage you will save!!! ha ha mate what i meant to say was Hades is lookin GOOD

Yeah, its not crucial as it can all be allowed for in the software.

But.... what i'd do is, with the crank at TDC N#1, fit your VR where ever around the trigger that it fits, then clock the trigger wheel so that tooth 9 after the missing tooth is on the VR sensor. This will make setup really easy, and give the right sequence fot the ecu, ie, it gets the reset of the missing tooth then 90 deg later it knows its got TDCN#1 happening, then 18teeth or 180 deg after that, TDCN#2 happens then the missing tooth reset again.

It dosnt have to happen this way bur its the easiest to setup the software for and seems to give the most reliable opperation.

Why not weld a boss into the cover to take the VR sensor that you origionally bought with the trigger wheel? or sell that trigger wheel and get a 51mm one so you can just mount the sensor stock like mine?

What ever i'm sure you'll come up with a good solution mate. Keep it coming ;)

Quote:

---

Originally Posted by rock hard

Surt, stop fucking around pack all your bikes in a sea container..and Fuckin move to Oz..shit man there are a shit load of people on here that will adopt you.I even named my pet dingo surt.cause he's always out in the shed rootin around .. .think of the postage you will save!!! ha ha mate what i meant to say was Hades is lookin GOOD

---

bahahaha! u named a dog after me Morry! so its up to u to adopt me haha nah seriously i want her pics in the shed and portrait too! thanks heaps for kind words Morry! my principal container is my head swollen with ideas

Quote:

---

Originally Posted by slingy88

Yeah, its not crucial as it can all be allowed for in the software.

But.... what i'd do is, with the crank at TDC N#1, fit your VR where ever around the trigger that it fits, then clock the trigger wheel so that tooth 9 after the missing tooth is on the VR sensor. This will make setup really easy, and give the right sequence fot the ecu, ie, it gets the reset of the missing tooth then 90 deg later it knows its got TDCN#1 happening, then 18teeth or 180 deg after that, TDCN#2 happens then the missing tooth reset again.

It dosnt have to happen this way bur its the easiest to setup the software for and seems to give the most reliable opperation.

Why not weld a boss into the cover to take the VR sensor that you origionally bought with the trigger wheel? or sell that trigger wheel and get a 51mm one so you can just mount the sensor stock like mine?

What ever i'm sure you'll come up with a good solution mate. Keep it coming ;)

---

thanks heaps slingy thats how i thought, should renew my half forgotten knowledge on squirtin. 64mm was the smallest wheel on there so i thought its the same 1 u bought either
if i put MY vr sensor through the cover, how could i adjust the gap and location, well i'll try to relocate the bandits vr sensor down and see whats happened, then i can always order 51mm wheel at me work - a better 1 than triggerwheels.com's but hardly any cheaper

Oil wont bother the output, unless its full of bearing steel lol

Quote:

---

Originally Posted by Surt

bahahaha! u named a dog after me Morry! so its up to u to adopt me haha nah seriously i want her pics in the shed and portrait too! thanks heaps for kind words Morry! my principal container is my head swollen with ideas

---

Here he is...Surt, he is awesome at catching a few of the local rats Too!!!
http://i488.photobucket.com/albums/r...ndon-beach.jpg

ahh hes caught a sea wallaby!

Yeah they are feisty little fuckers

still fappin over bracings and mounts little by little but yet goin on

the voice in my head said to make 3 pairs bracings not 2 and the front one from od34x3 piping while others from od34x1.5 stainless piping

yup im all ears cos he knows better bahaha!

http://i1175.photobucket.com/albums/...r/DSCF4492.jpg

assembled tb's still waiting for the boot flanges to be machined

http://i1175.photobucket.com/albums/...r/DSCF4490.jpg

received the microsquirt with 3bar map sensor, boost control valve and connectors

http://i1175.photobucket.com/albums/...r/DSCF4491.jpg

followed the motto on the t'shirt and megasquirted my mind first with latest code now it feels real good hahaha

http://i1175.photobucket.com/albums/...r/DSCF4497.jpg

OOOOOHHH!!! Me like that there Fancy Dan Shirt you be wear'in. :cool:

who the fuck is fancy dan slingy? check up ur in box mate i have a better copy of max boost for ya, a true ebook, not fuckin scans, just 5mbjust need u mail
any one interested feel free to pm me to

That subframe is horn mate, looking good !

thanks heaps mate, sorted out how to make it shorter and more horny haha

after waiting for 3 or 4 weeks for the flanges to be milled i took em back and cut of the odds with the angel grinder and smoothed with files

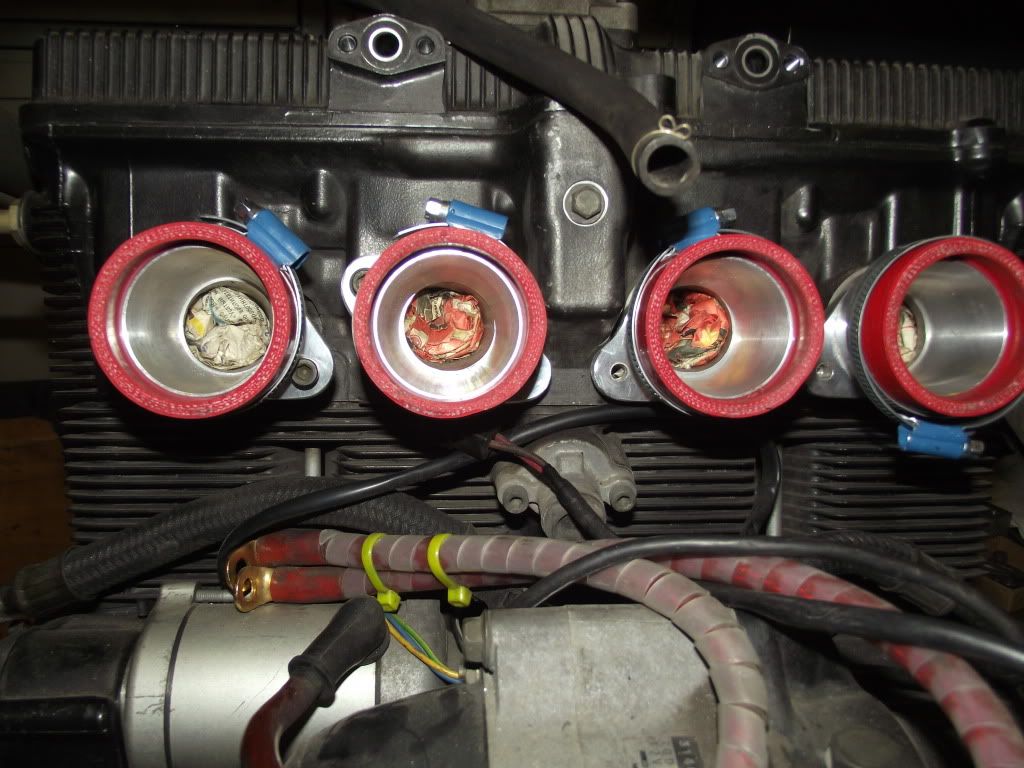

as you can see the oem boots r of bloody centers thats why i made bigger holes in mine

gunna port the fuckn inlets to match the boot holes

http://i1175.photobucket.com/albums/...r/DSCF4500.jpg

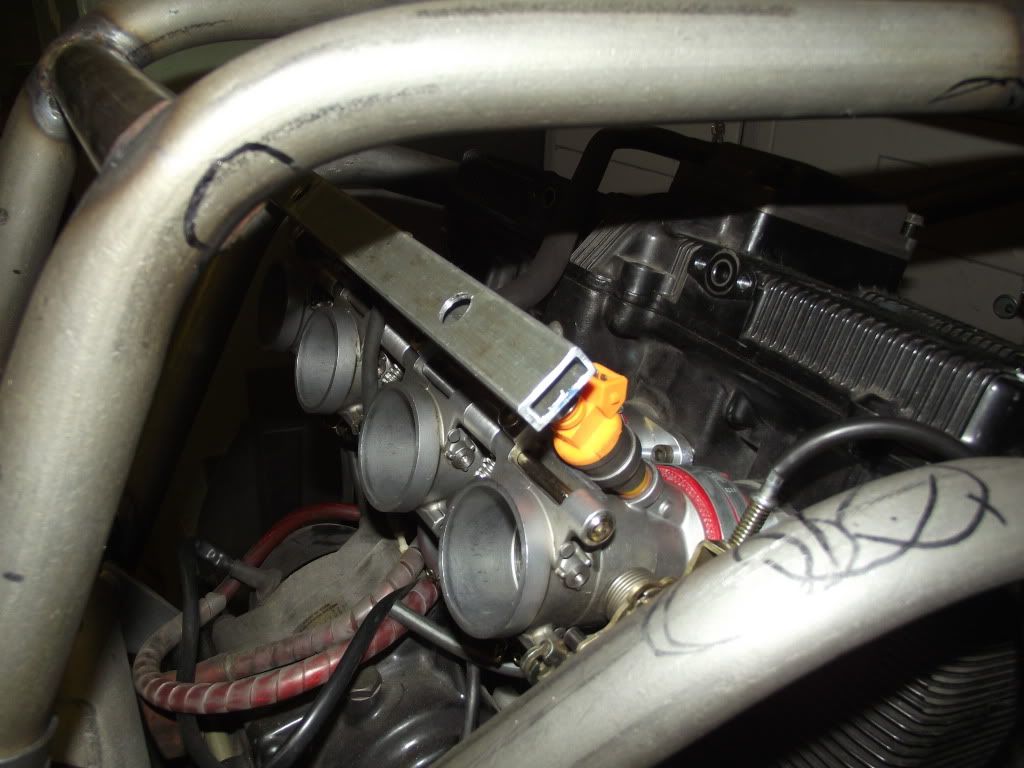

tbs installed time to start fabbin the plenum... actually ive already made a few templates

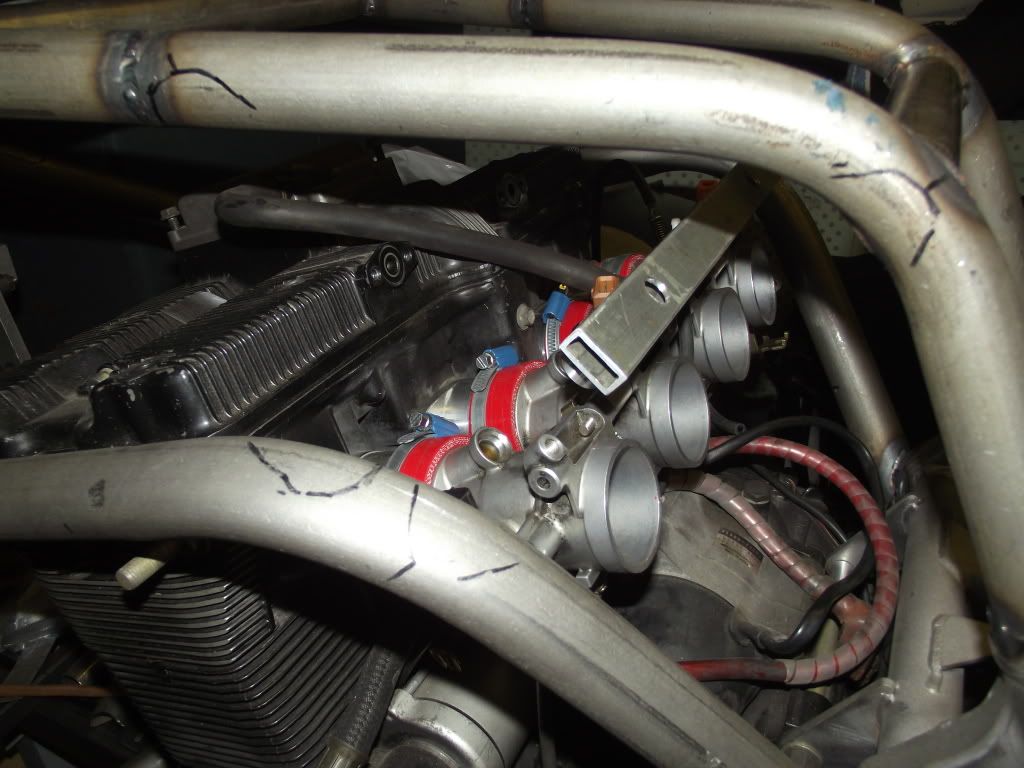

http://i1175.photobucket.com/albums/...r/DSCF4498.jpg

http://i1175.photobucket.com/albums/...r/DSCF4499.jpg

finished with bracings and engine mounts - at looong last, more complex work than fitting the main tubes
main tubes have just 6 merges and 8 bracings have 16 merges respectively

http://i1175.photobucket.com/albums/...r/DSCF4501.jpg

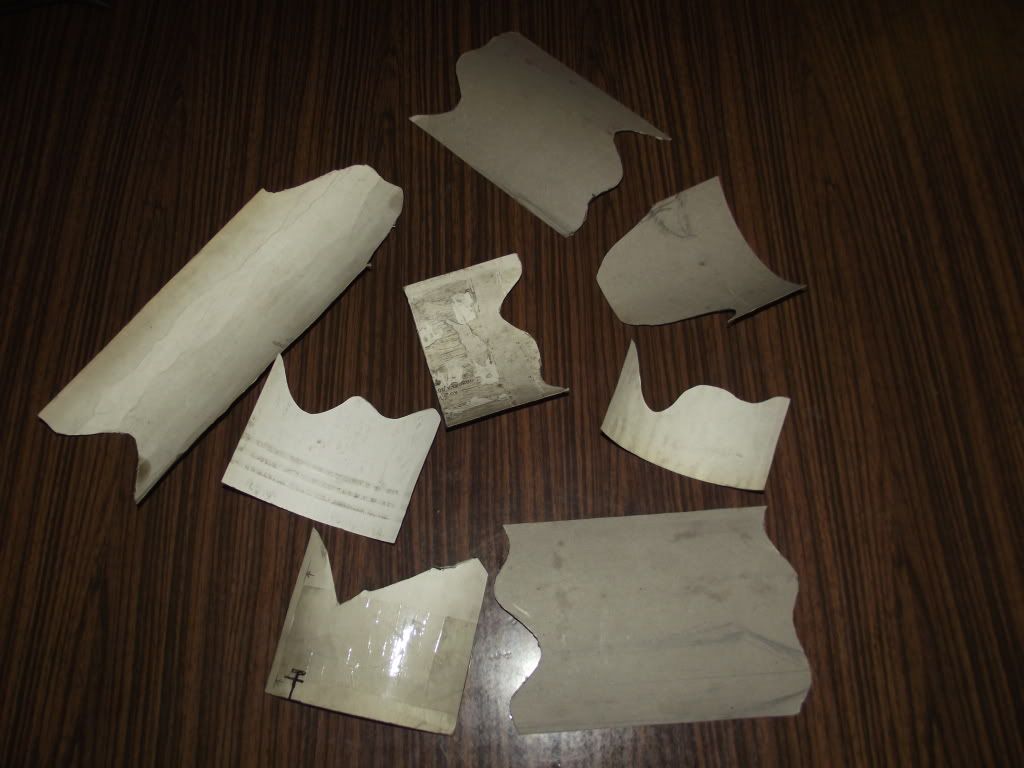

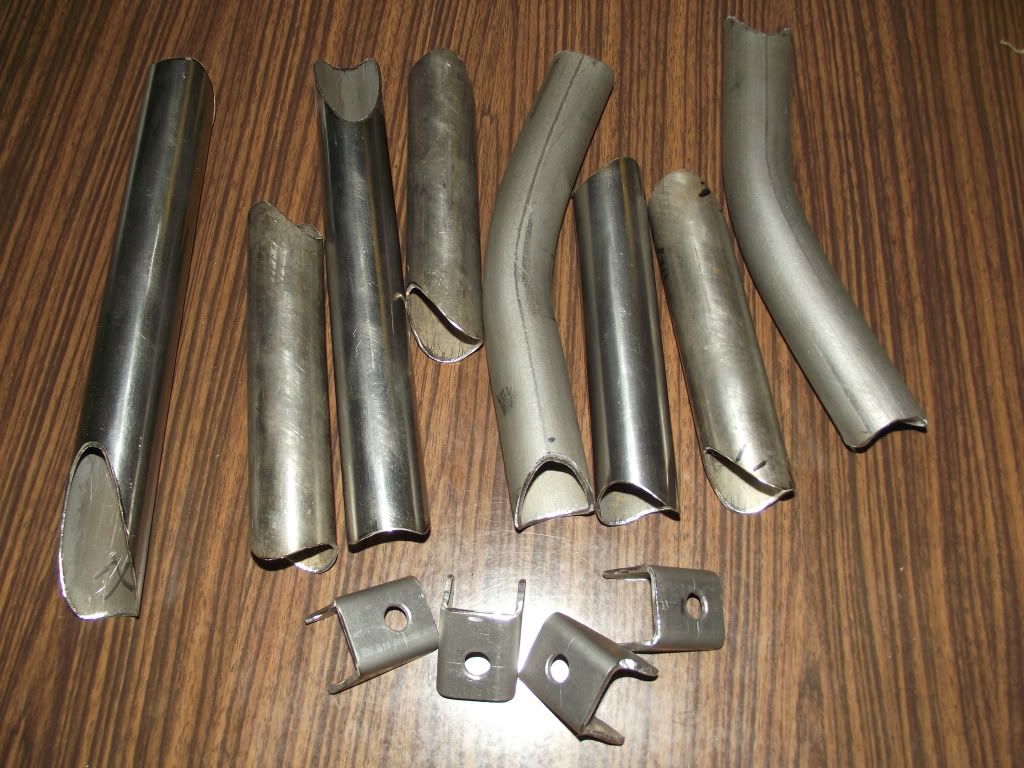

and heres a collection of templates, gunna keep em for the frames to come

http://i1175.photobucket.com/albums/...r/DSCF4502.jpg

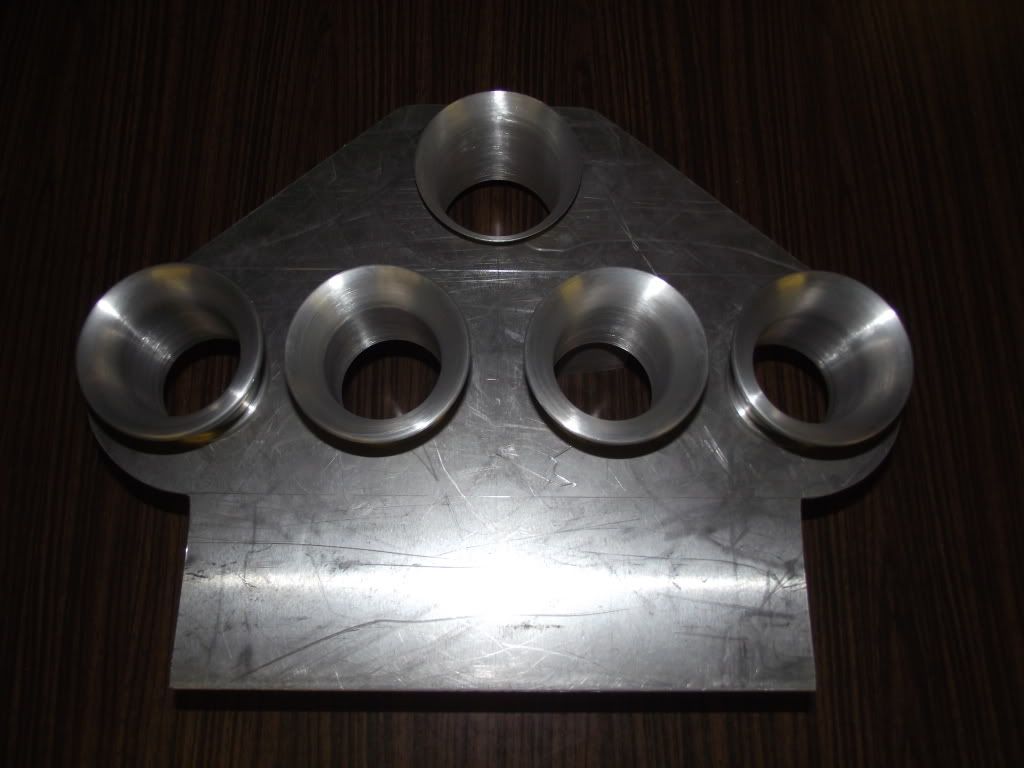

the plenum to be is started with

http://i1175.photobucket.com/albums/...r/DSCF4503.jpg

good stuff you crazy russian fucker

thanks rod proud to be called a psycho nutter not normal etc however i may be more an aussie than most of yas lucky bastards
aussie by heart just was awaken from dream time in the wrong place
if i break my neck before makin it to Oz i'll still be roamin the nullarbor with Mad Max and Bon Scott eternally makin nitro for my mad bikes from my own piss bwahahaha!

http://i1175.photobucket.com/albums/...528Cropped.jpg

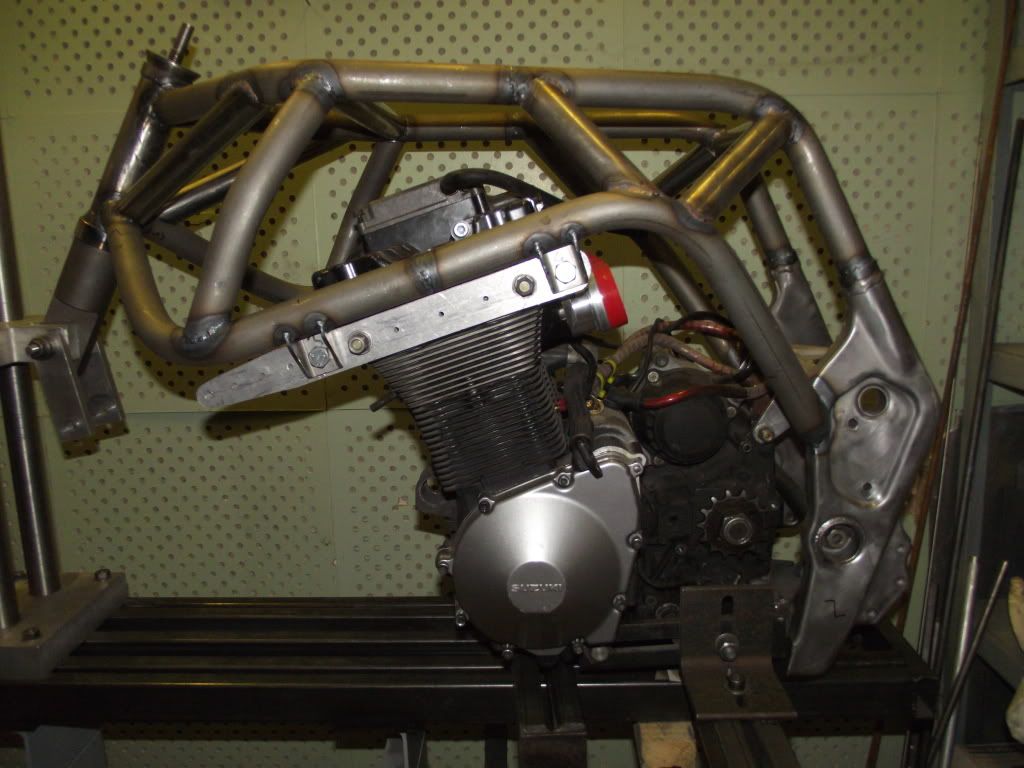

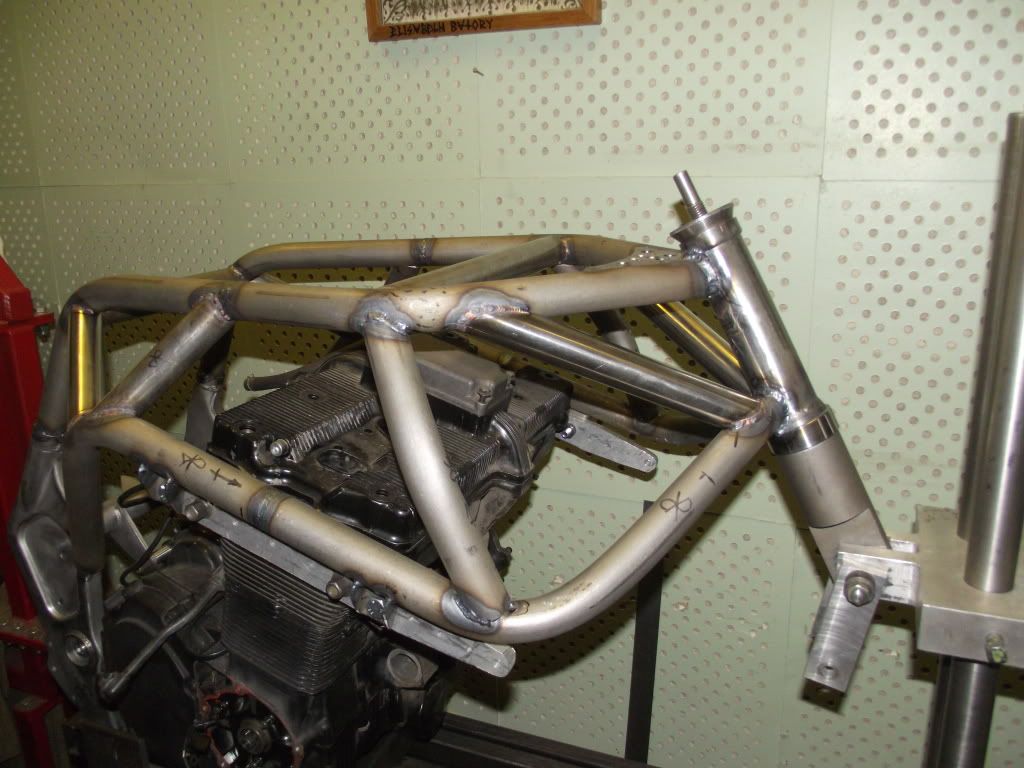

alrighty, the bracings and engine mounts been welded to the frame today, so the frame is almost finished, a few triangles r to be welded to here and there and a side stand mounts

http://i1175.photobucket.com/albums/...r/DSCF4515.jpg

http://i1175.photobucket.com/albums/...r/DSCF4516.jpg

http://i1175.photobucket.com/albums/...r/DSCF4517.jpg

http://i1175.photobucket.com/albums/...r/DSCF4518.jpg

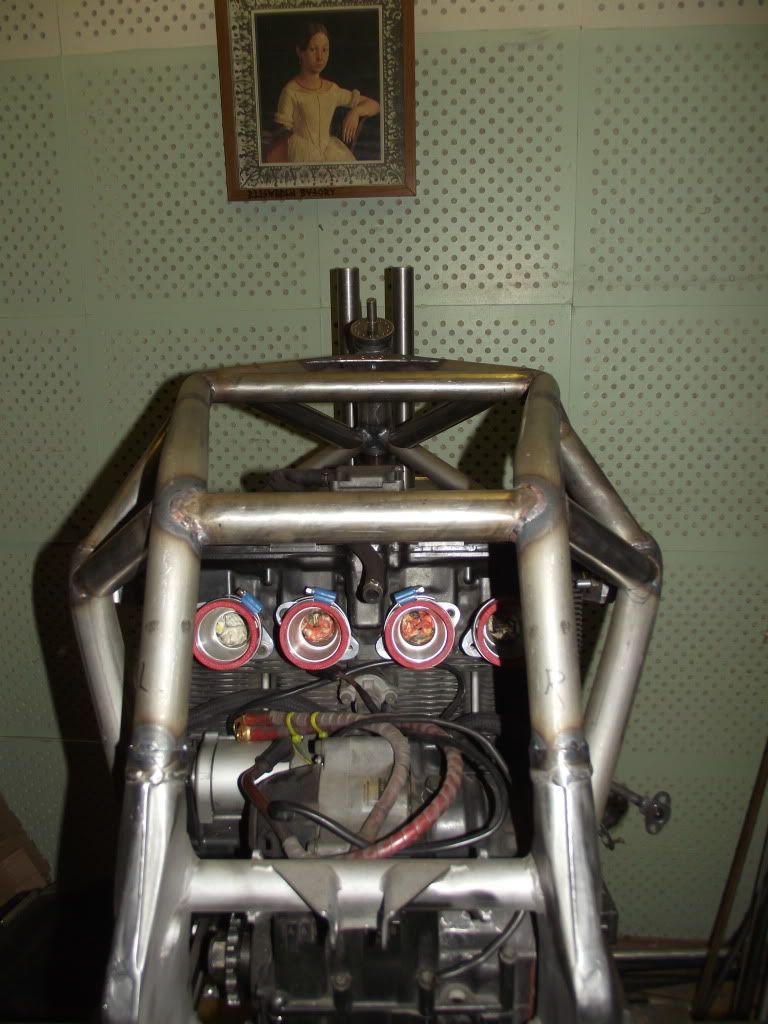

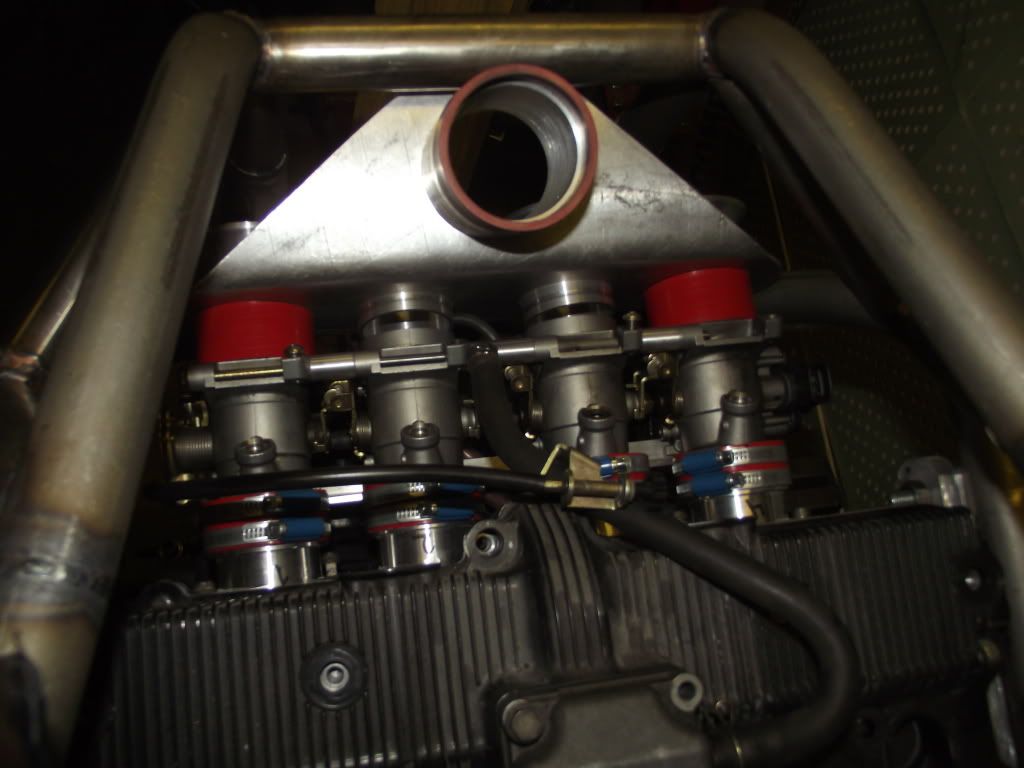

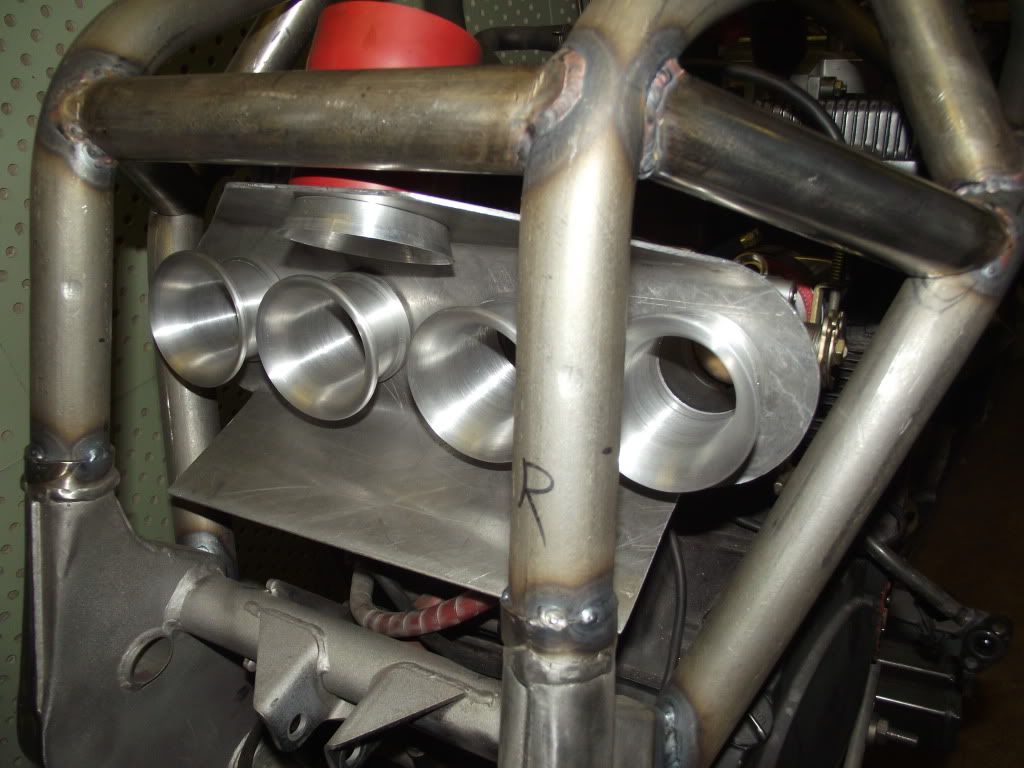

continued with the plenum right out
yup it can be removed out of the frame no worries

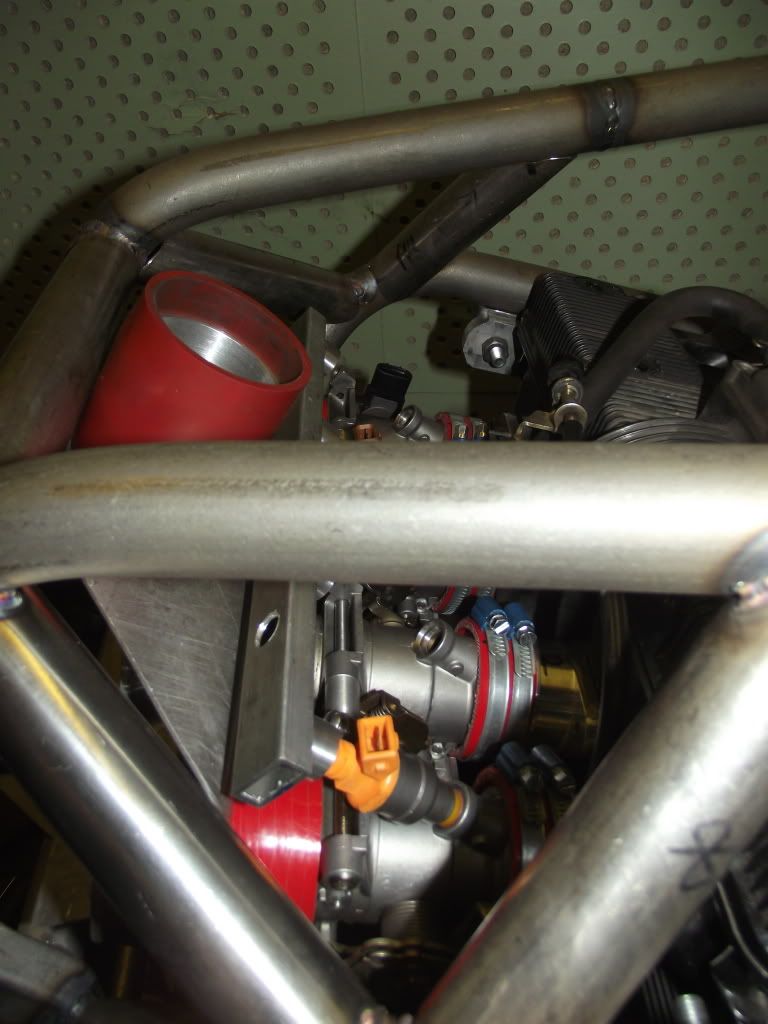

http://i1175.photobucket.com/albums/...r/DSCF4519.jpg

http://i1175.photobucket.com/albums/...r/DSCF4520.jpg

http://i1175.photobucket.com/albums/...r/DSCF4521.jpg

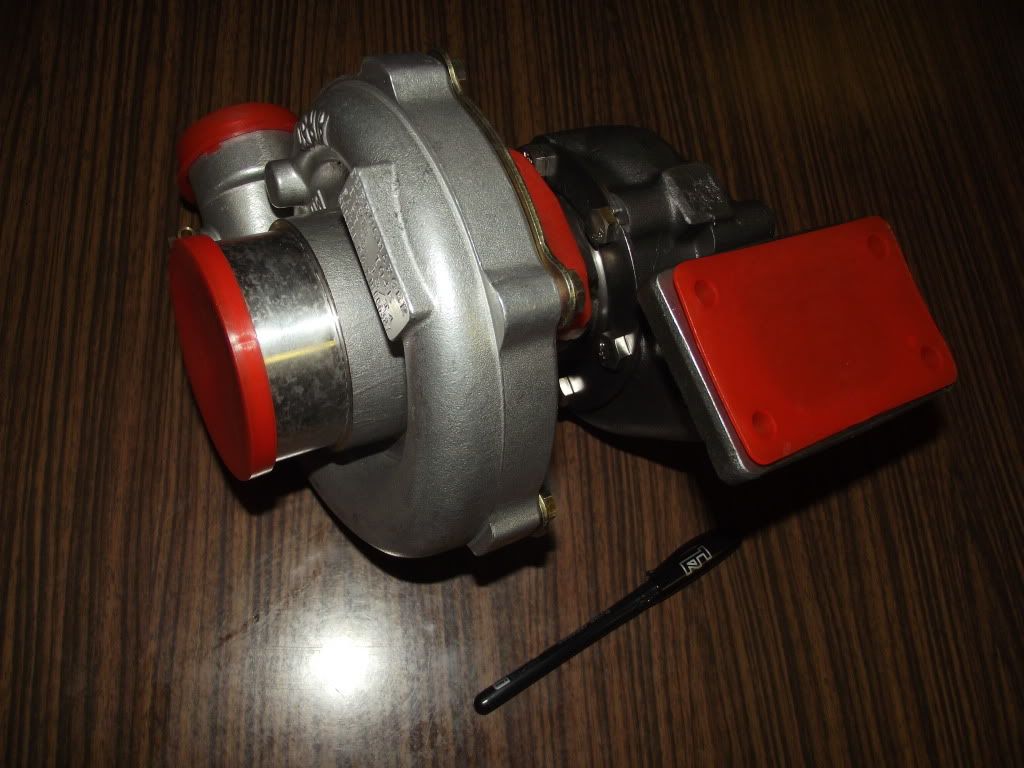

yesterday received the turbine from seppos and fetched it to me work today
never realised its so huge hahaha i cant stop laughing staring at it

http://i1175.photobucket.com/albums/...r/DSCF4506.jpg

http://i1175.photobucket.com/albums/...r/DSCF4507.jpg

http://i1175.photobucket.com/albums/...r/DSCF4508.jpg

http://i1175.photobucket.com/albums/...r/DSCF4509.jpg

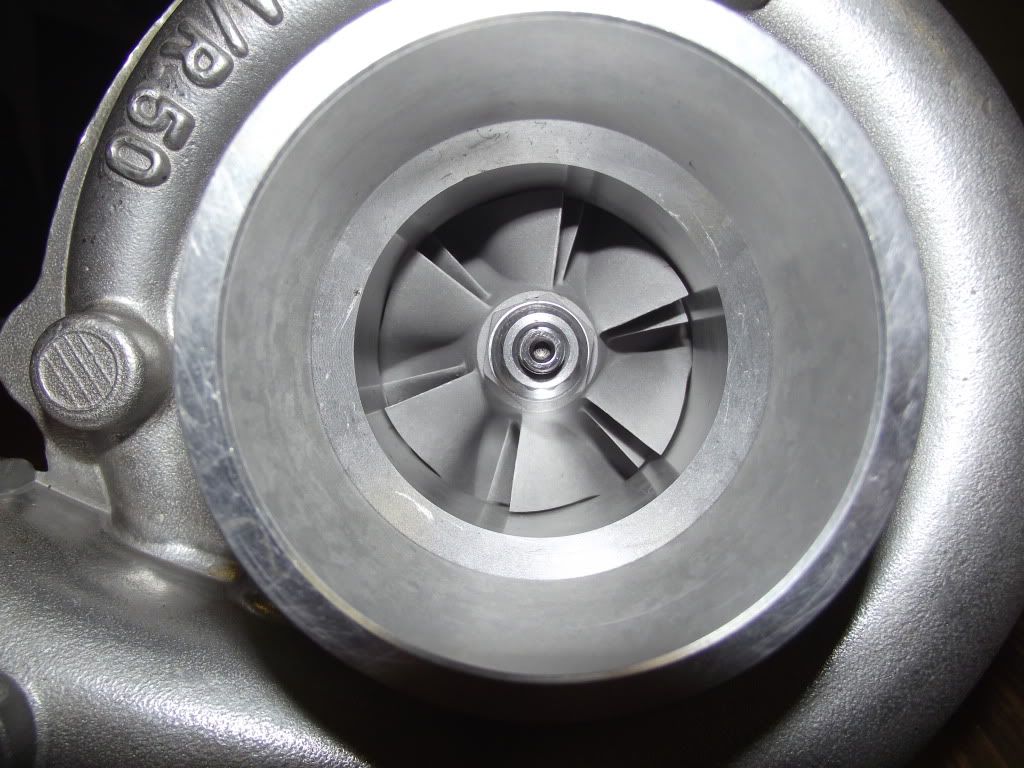

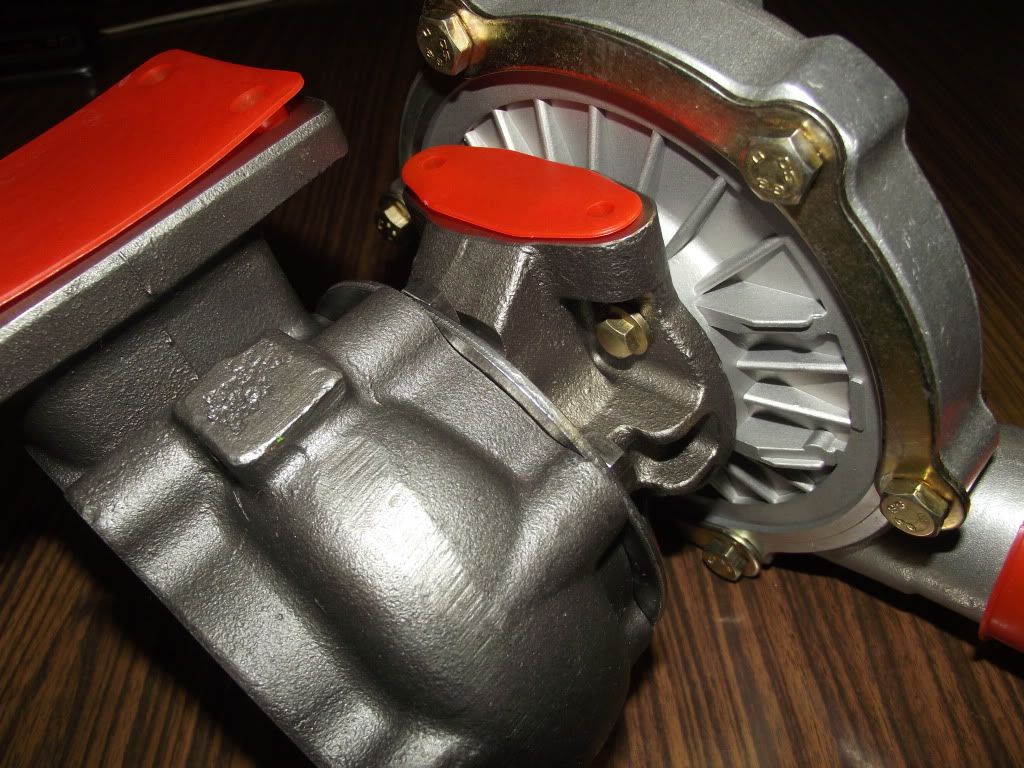

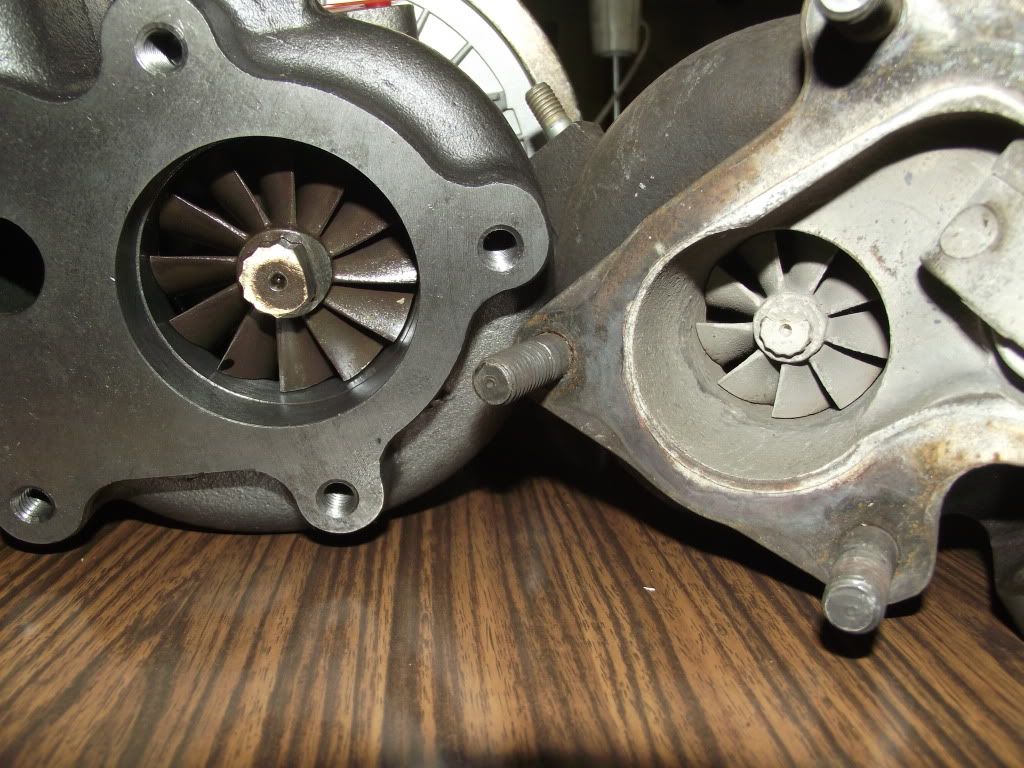

comparing to mhi 3 and ihi 55, i luv its compressor housing but will the bandit?

http://i1175.photobucket.com/albums/...r/DSCF4513.jpg

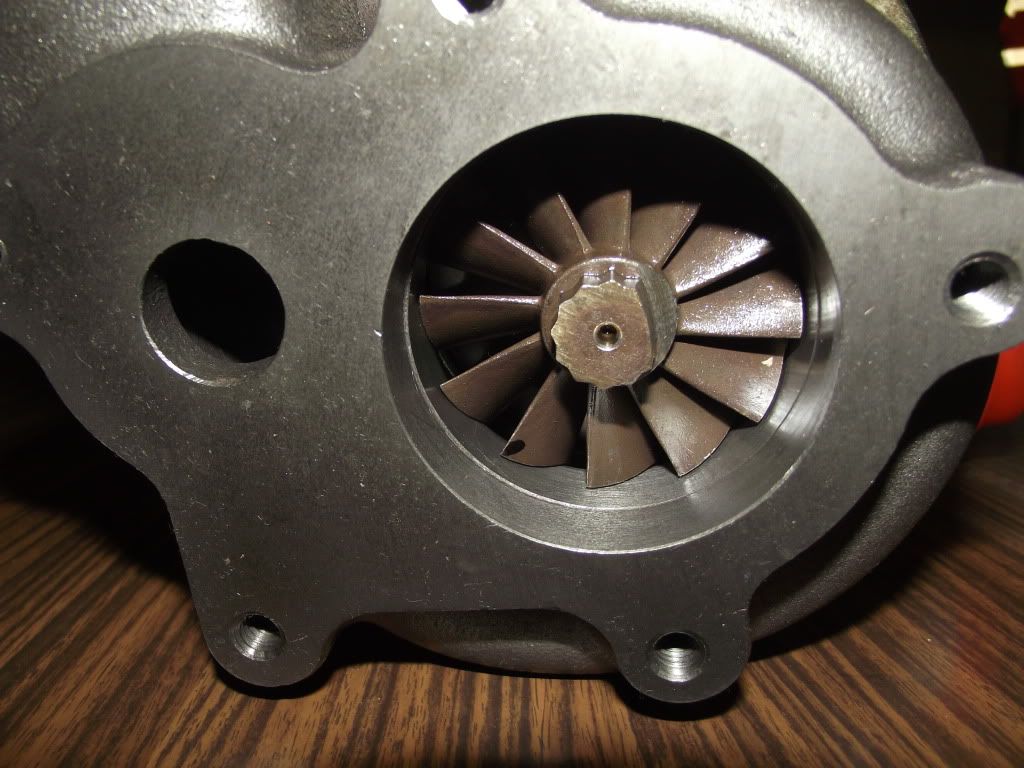

luv the turbine housing as well

http://i1175.photobucket.com/albums/...r/DSCF4514.jpg

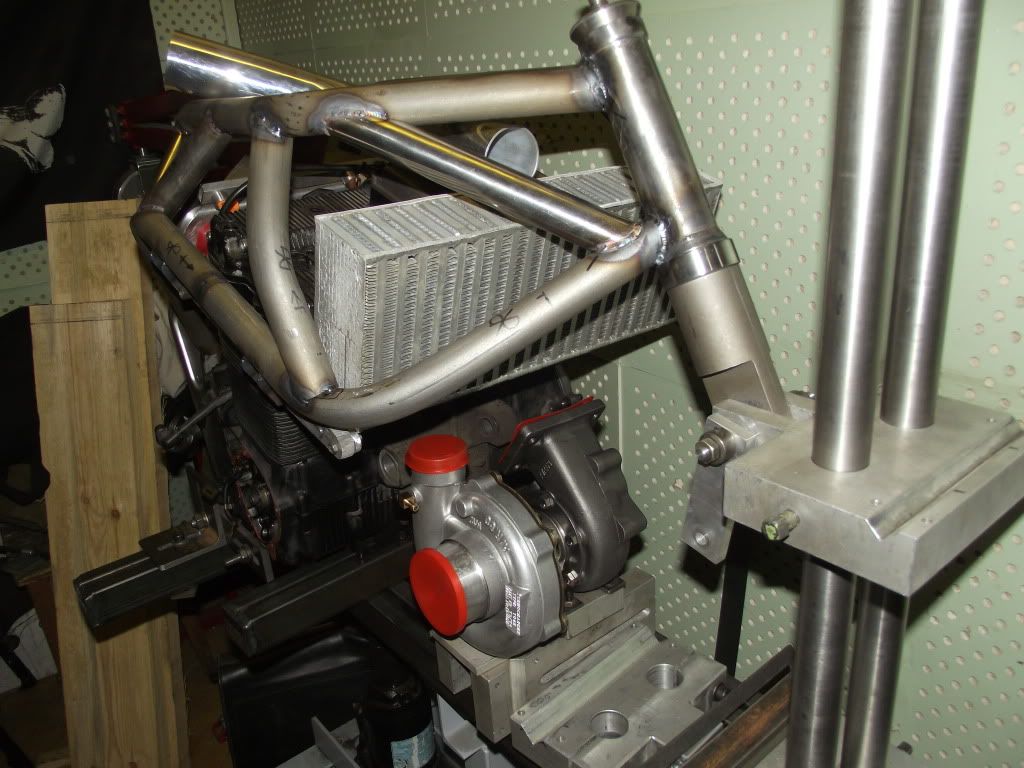

sorting out the turbine position, smth like that

http://i1175.photobucket.com/albums/...r/DSCF4522.jpg

http://i1175.photobucket.com/albums/...r/DSCF4524.jpg

http://i1175.photobucket.com/albums/...r/DSCF4525.jpg

ps sick and tired shitless to upload that many pics to the bucket but knowin yas luv porn... enjoy!

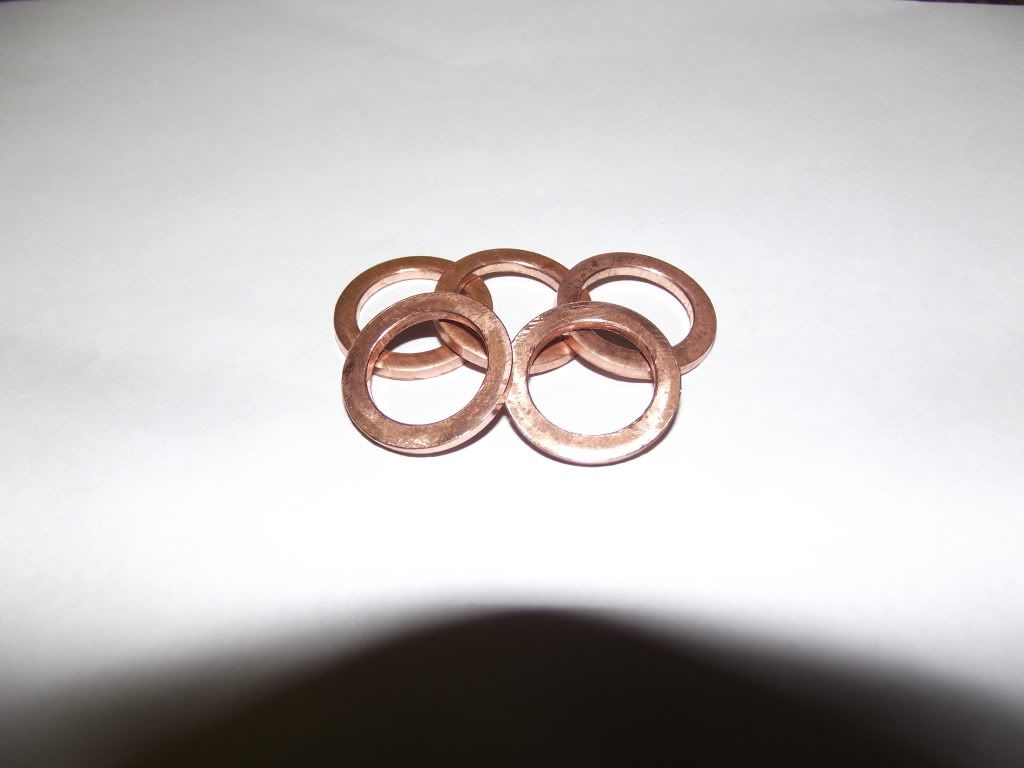

forgotten to show off with 2mm thick custom copper washers for the engine mounting studs hehe /to be annealed/
