same here mate! keen to finish the project and switch to other 3! or 4? lol
Printable View
same here mate! keen to finish the project and switch to other 3! or 4? lol
http://i1175.photobucket.com/albums/...r/DSCF5158.jpg
http://i1175.photobucket.com/albums/...r/DSCF5159.jpg
http://i1175.photobucket.com/albums/...r/DSCF5160.jpg
http://i1175.photobucket.com/albums/...r/DSCF5161.jpg
http://i1175.photobucket.com/albums/...r/DSCF5162.jpg
http://i1175.photobucket.com/albums/...r/DSCF5163.jpg
Lovin it mate.
thank you Albi!
so... due to the may holidays it took a while to carry on
however its happened

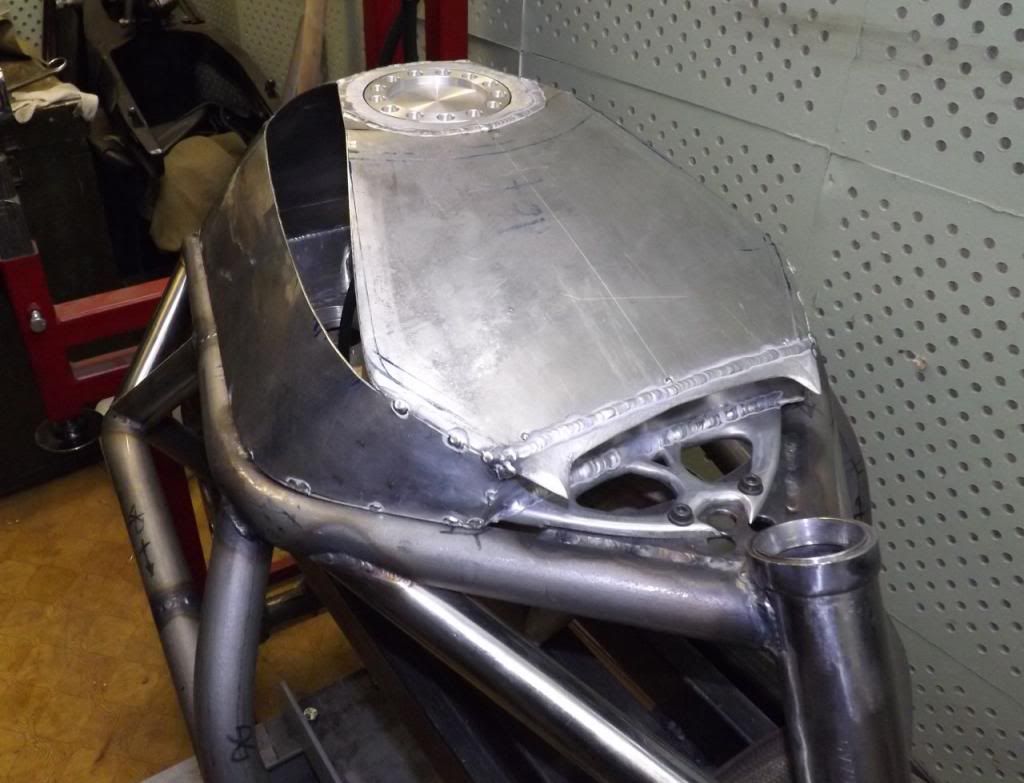

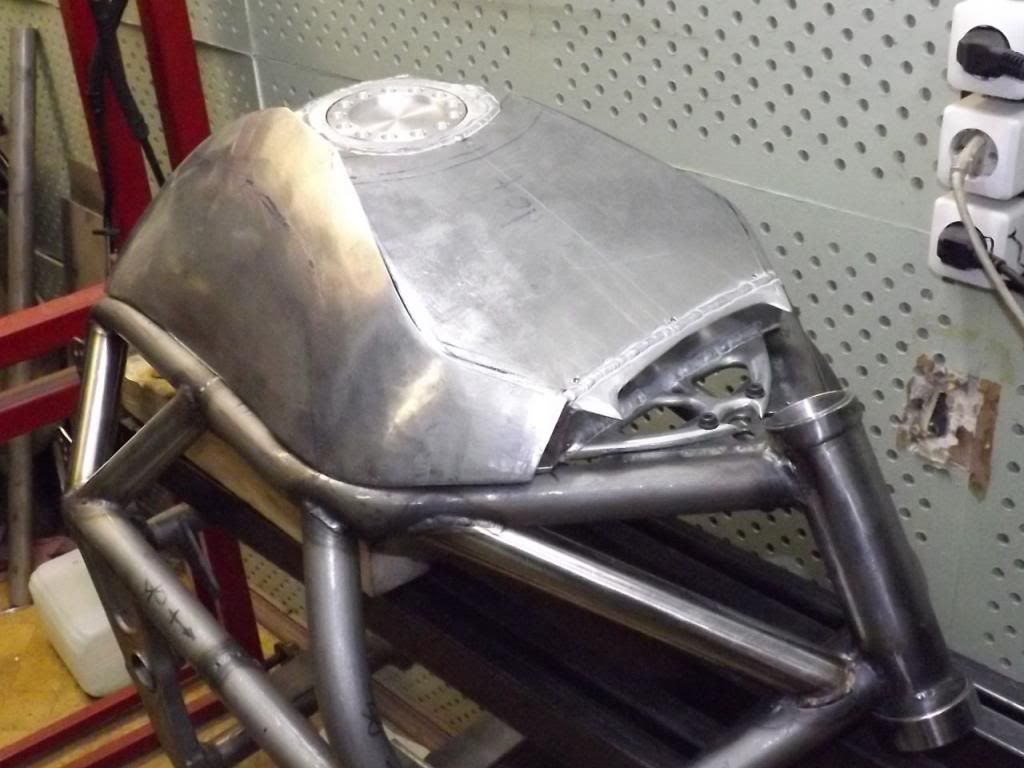

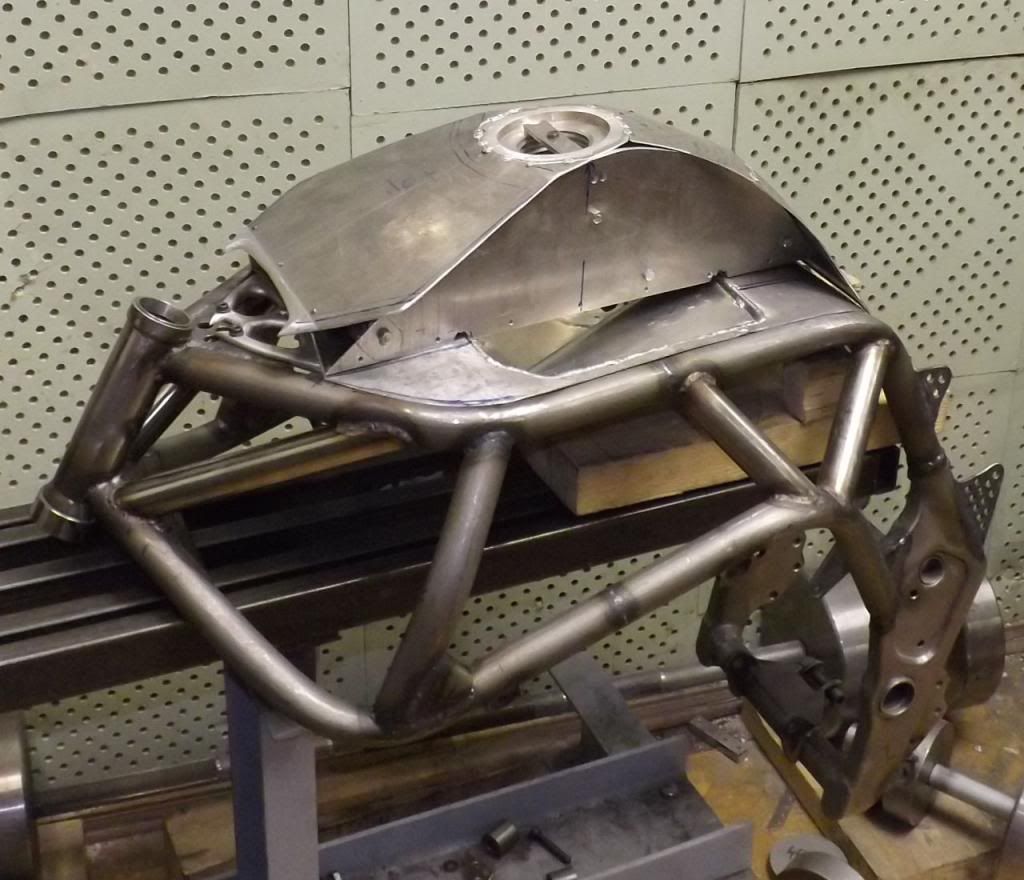

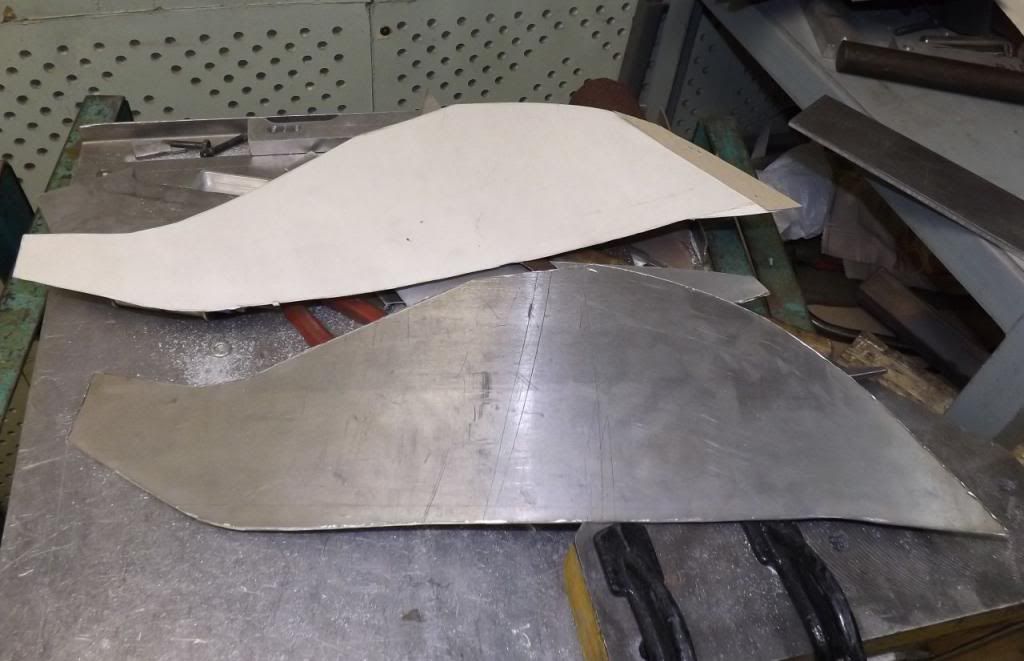

had to cut in halves the side panel coz of their multiple curves and the voices in my head told me to do so lol
http://i1175.photobucket.com/albums/...r/DSCF5164.jpg
http://i1175.photobucket.com/albums/...r/DSCF5165.jpg
http://i1175.photobucket.com/albums/...r/DSCF5166.jpg
http://i1175.photobucket.com/albums/...r/DSCF5167.jpg
actually i pretty pleased with the result, the both sides are symmetric
that looks fucking awesome surt
Looking good Surt
looking good surt
As always, bloody good stuff!
thanks heaps mates gotta do smth to keep my mind and hands busy haha!
Hey Buddy,
Hows this beasty going? The speed you build stuff it should be running by now lol
no updates slingy, bought 4 bikes for cheap for modifying or restoring, pretty busy with the fuckers, keen to get rid of them asap
Fair enough mate. Any interesting out of the 4 cheap bikes?Quote:
Originally Posted by Surt
all of them 4 r interesting to me mate coz they r my babies
not that im gunna just to refresh their paint and to sell off well judge yourself, here r 4 new rides, 3 of them i call quickies like having fast sex with a bike bwahaha
1. a Blasphemy project: a '96 virago 535, now stripped off, its frame and tank r 110mm stretched, a hardley's single carb mod, a straight thru exhaust, a fresh paintjob
http://i1175.photobucket.com/albums/...y/DSCF0037.jpg
http://i1175.photobucket.com/albums/...y/DSCF1008.jpg
http://i1175.photobucket.com/albums/...y/DSCF1035.jpg
2. a Nightrider project dedicated to the Mad Max movie character, a 84 kz750 ltd (shafty) is stripped, the engine is dissasembled completely for restoring (its barrels and pistons r scratched and rings r worn off, so i bought a gpz750 engine to borrow cyl block and pistons from it) and powder coating, the harleyish looking bastard is gunna turn into a cafe racer, so a custom tank and seat unit r soon to be born lol
http://i1175.photobucket.com/albums/...r/DSCF0042.jpg
http://i1175.photobucket.com/albums/...r/DSCF0107.jpg
http://i1175.photobucket.com/albums/...r/DSCF0198.jpg
http://i1175.photobucket.com/albums/...r/DSCF1006.jpg

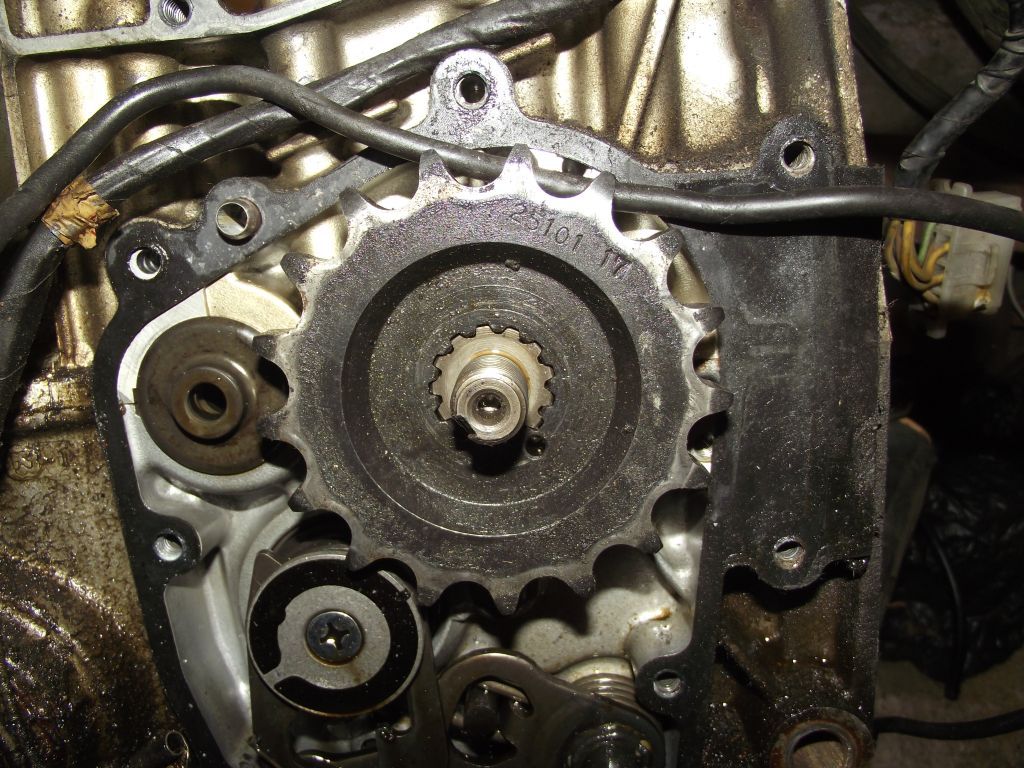

actually firstly i intended to convert it to a chain drive and researched that it could be easily done, here, the shafty motor with the sprocket installed
http://i1175.photobucket.com/albums/...r/DSCF0128.jpg
and see the difference

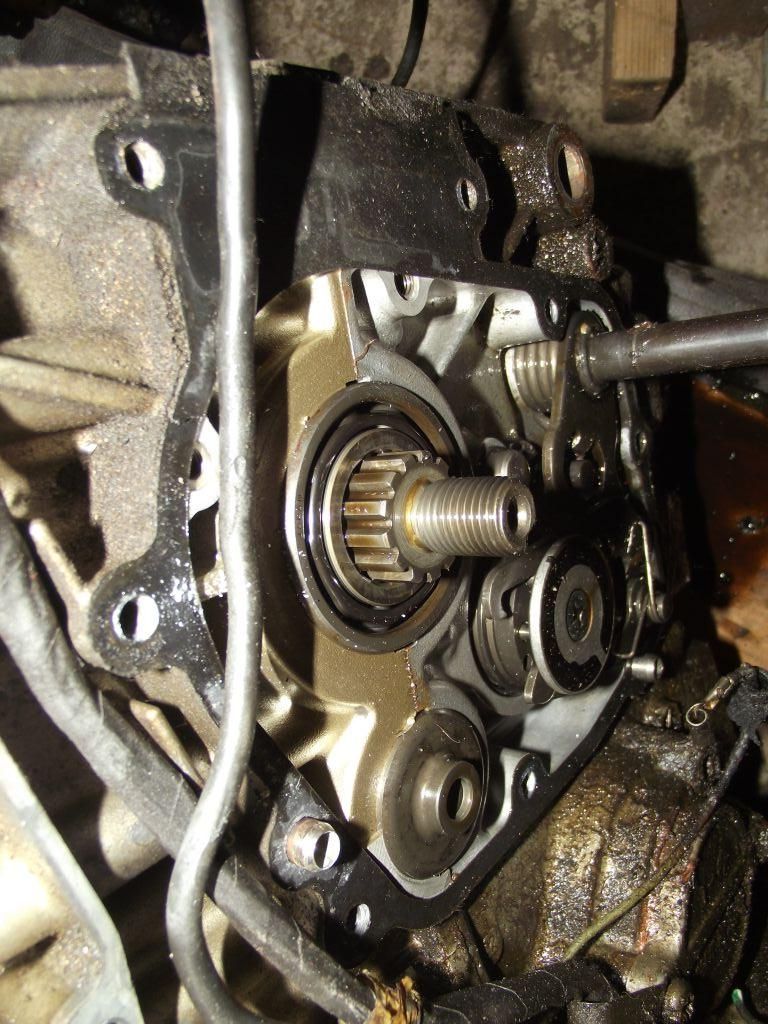

el shafto's (or ciabtos lol)
http://i1175.photobucket.com/albums/...r/DSCF0126.jpg
dick chainy's
http://i1175.photobucket.com/albums/...r/DSCF0127.jpg
but after good reckoning i refuted the mod for building a brand new cafe fighter named Kawasooka
3. a Kawasooka project. the same gpz engine with the same kz worn out cyl block but bored off for +3mm wiseco kit (already bought and eagerly expected)... i looked for a frame and papers for the future bike and bought that
http://i1175.photobucket.com/albums/...a/DSCF0178.jpg
but the engine was to big for the frame
http://i1175.photobucket.com/albums/...a/DSCF0194.jpg
so i stretched the frame haha
http://i1175.photobucket.com/albums/...8824cb719c.jpg
now its big enough for any engine lol
but then i decided to build a frame either from polished stainless steel or ally, so now im lookin for alpha numeral bits of that type
http://i1175.photobucket.com/albums/...DSCF0230-G.jpg
http://i1175.photobucket.com/albums/...DSCF0230-A.jpg
4. a Katorga/Gulag project is about cross breeding a ural with my b12 leftovers: the front end, tank and seat. to bad that i threw away the bandits cut frame (the upper tubes), so now im gunna make them anew
http://i1175.photobucket.com/albums/...7cf3f7e29d.jpg
http://i1175.photobucket.com/albums/...a/DSCF5175.jpg
http://i1175.photobucket.com/albums/...a/DSCF5176.jpg
the b12 tank was pretty much fucked up so i had to make an autopsy lol
http://i1175.photobucket.com/albums/...a/DSCF1017.jpg
then sand blasted it, not really successful for the inside part, the bloody silicone filler or what ever it was didn't surrender
http://i1175.photobucket.com/albums/...a/DSCF1018.jpg
http://i1175.photobucket.com/albums/...a/DSCF1019.jpg
then i cut out the upper part with the fuel throat to weld in a new one instead, no pics sorry
also the rear wheel will be borrowed from the b400 above and a custom ally swinger will be made... not really a quickie but i can't help it bahaha!
fuckin hell Surt you're gonna be busy
your not wrong geesexar lol.Quote:
Originally Posted by geesexar
And i have to say out of all 4, i like the look of the Virago the best which is something i NEVER thought i would be saying, as its, well..... a fucking Virago lol
Bloody awesome work as always Surt
lol thanks heaps mates, yup im bloody busy like hell
outta finish virago and kz first, then proceed with the b12 and then all the others, 9 is their number in sum
my coming home to the land of Oz is being postponed for a while... well Oz is where I am \m/

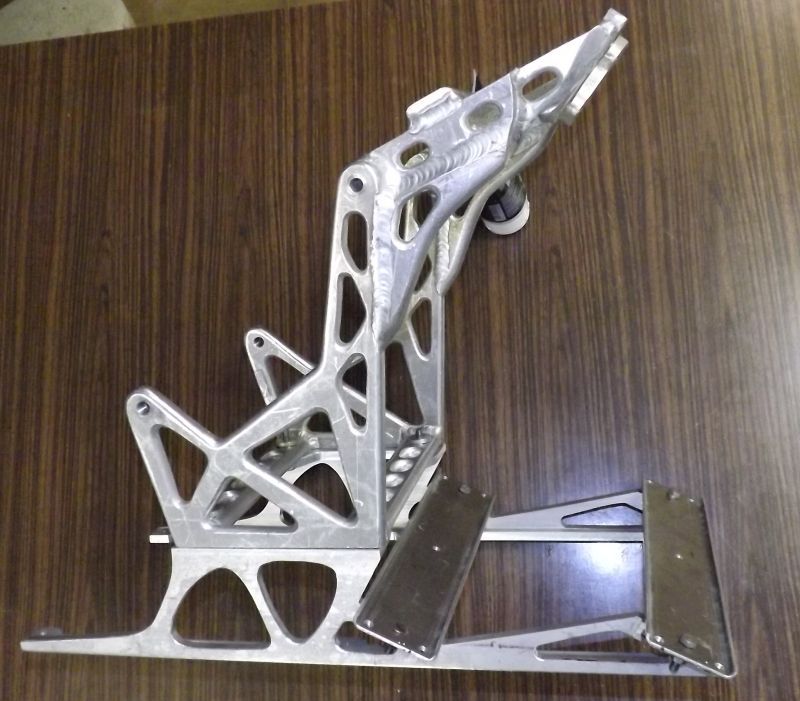

when i was a kid, i read in a book that one bloke had build a bike from a Singer's old german sewing machine and a few bike parts. the deed stuck in my head for years and i decided to prove that that wasn't a fable. but i had to build a sewing machine first

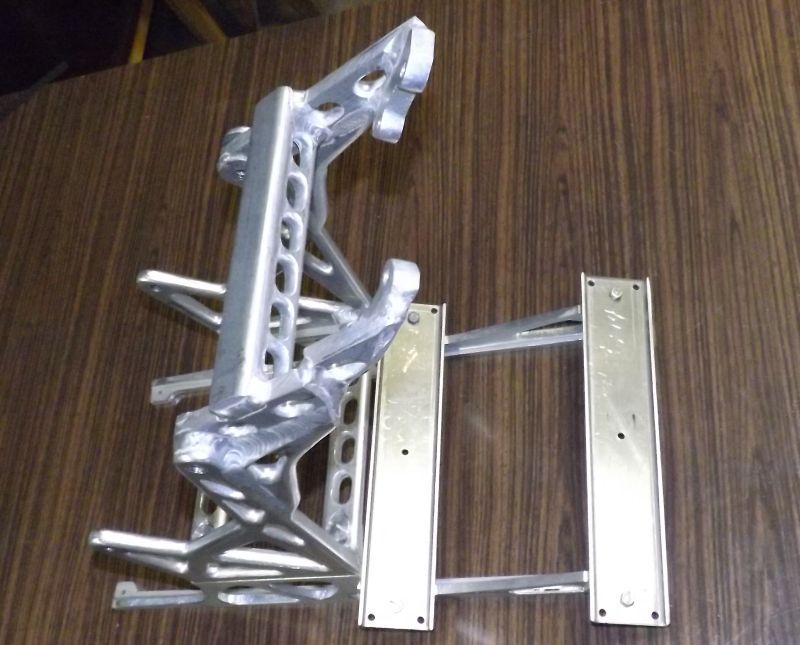

http://i1175.photobucket.com/albums/...r/DSCF1153.jpg
http://i1175.photobucket.com/albums/...r/DSCF1154.jpg
http://i1175.photobucket.com/albums/...r/DSCF1155.jpg
http://i1175.photobucket.com/albums/...r/DSCF1156.jpg
siberian sleigh with oil heating
http://i1175.photobucket.com/albums/...r/DSCF1157.jpg
http://i1175.photobucket.com/albums/...r/DSCF1159.jpg

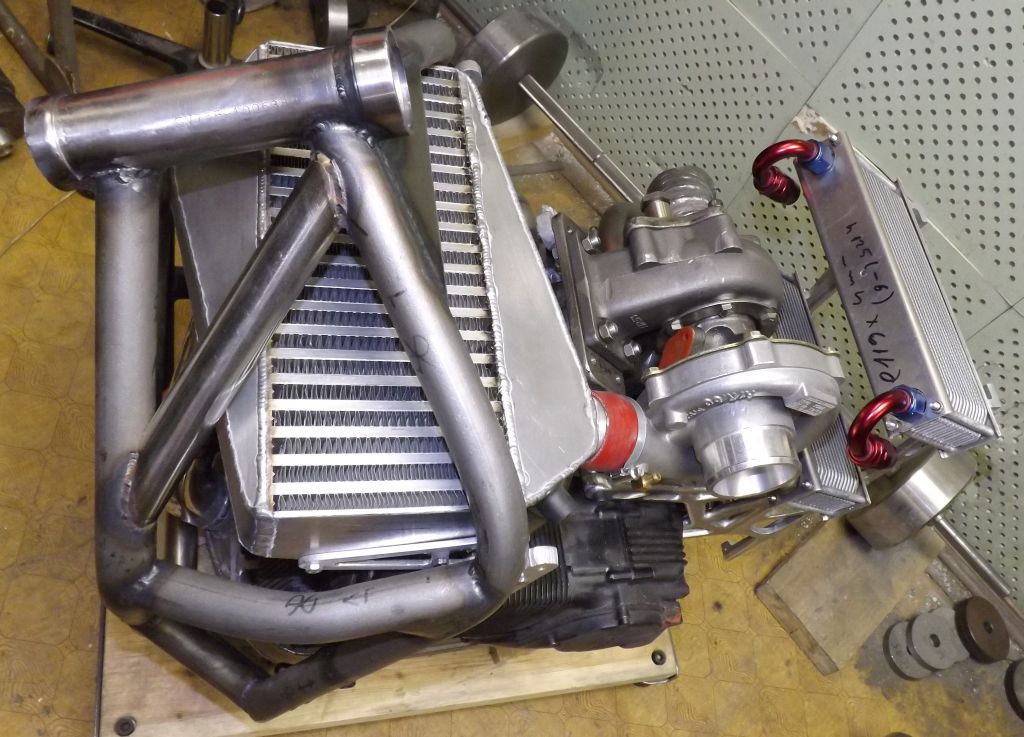

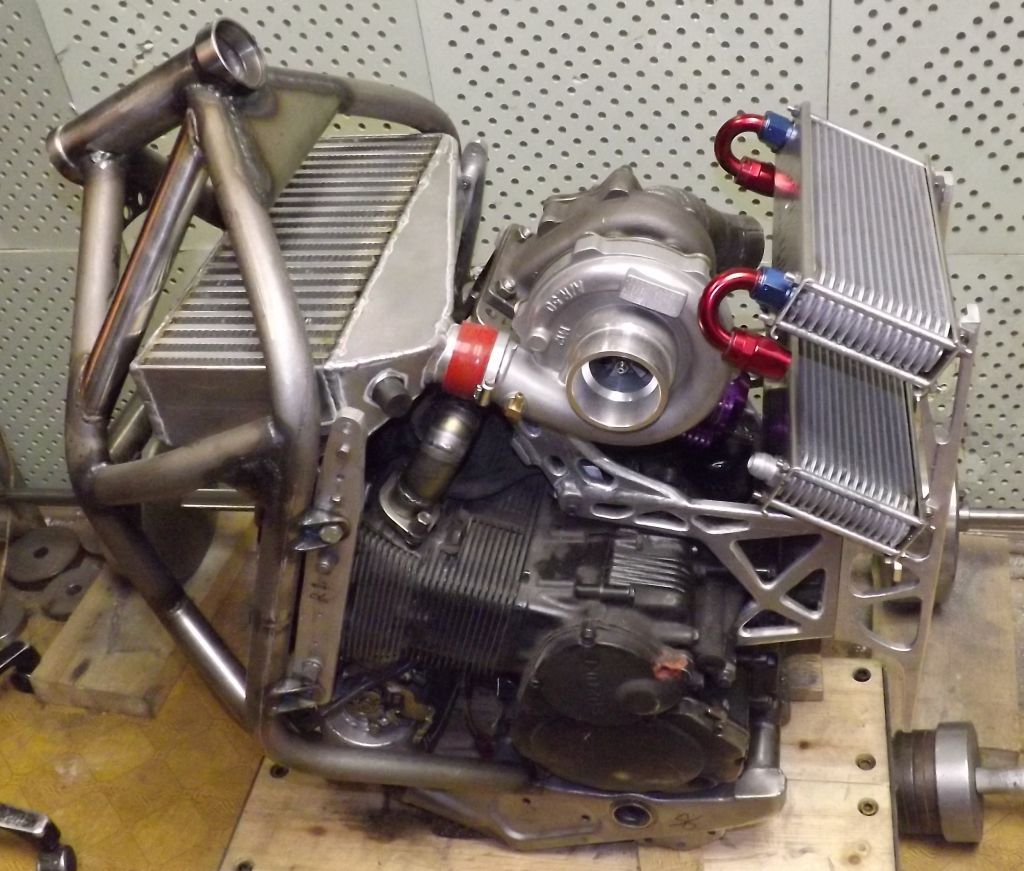

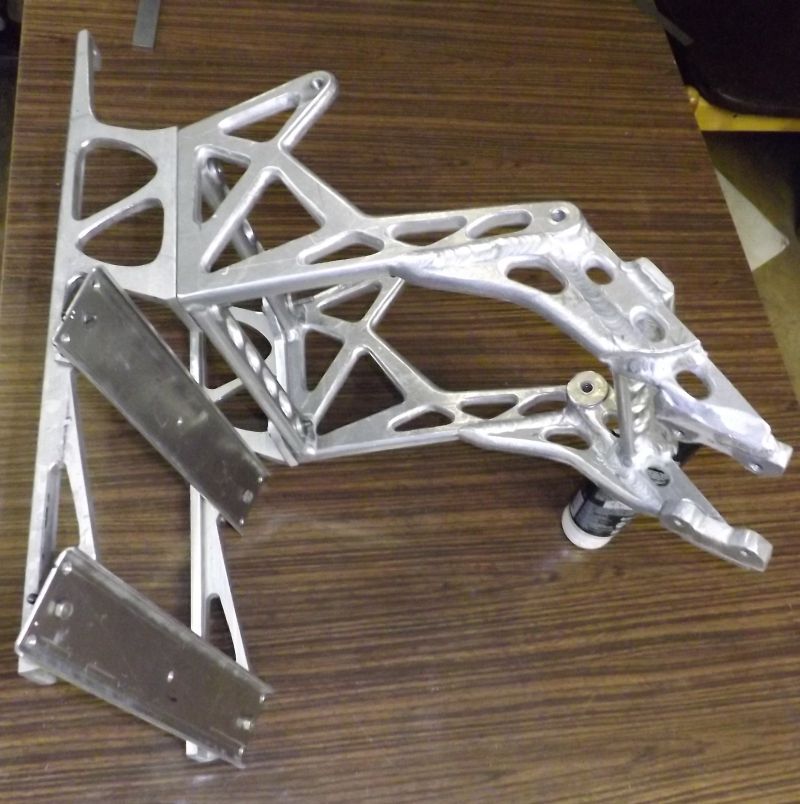

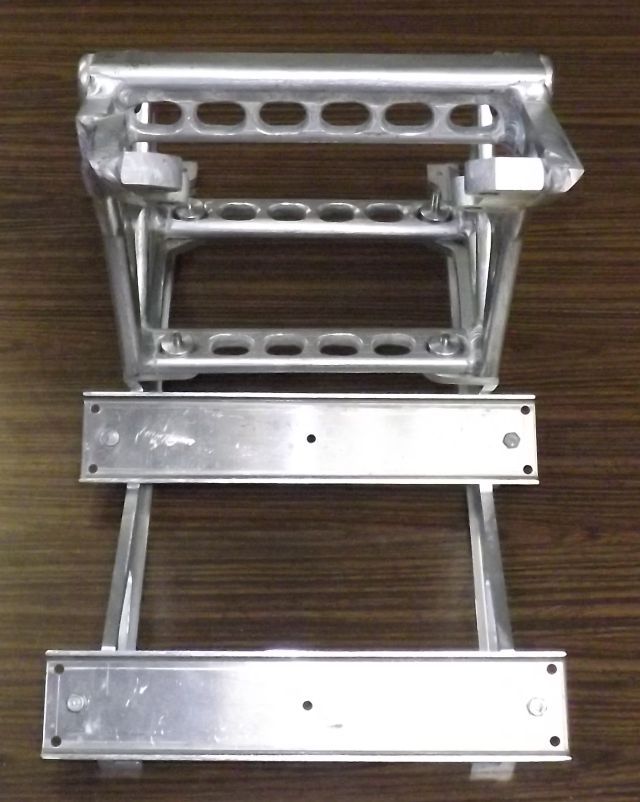

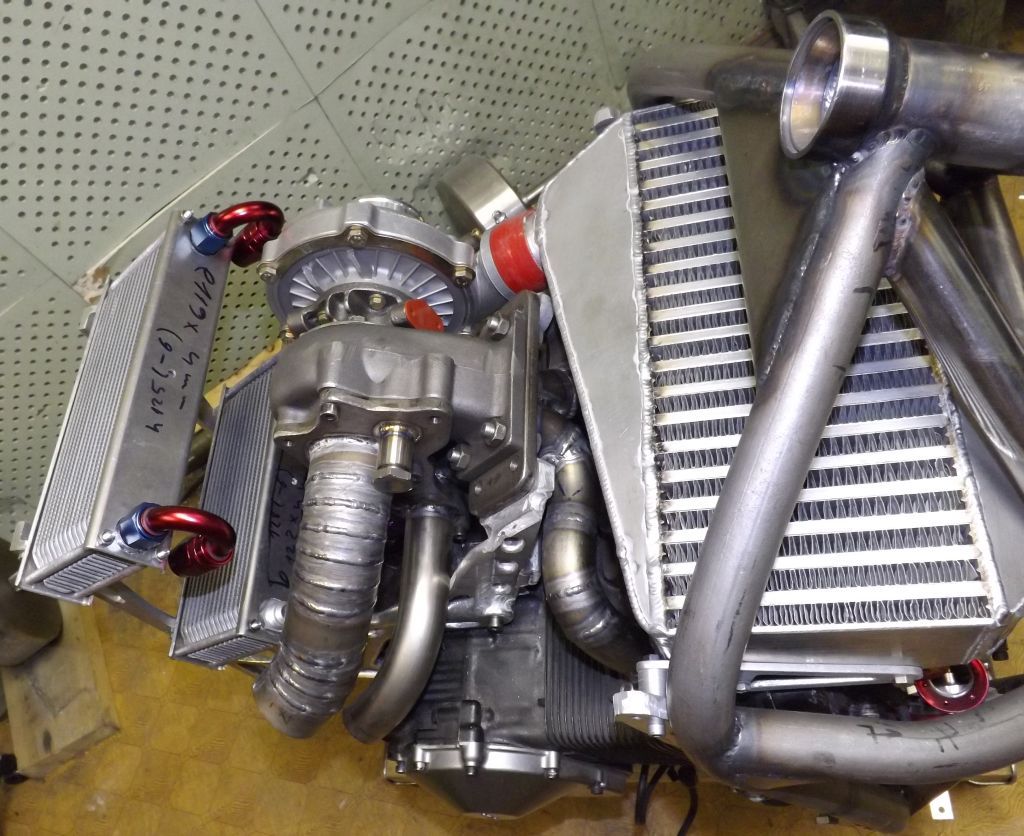

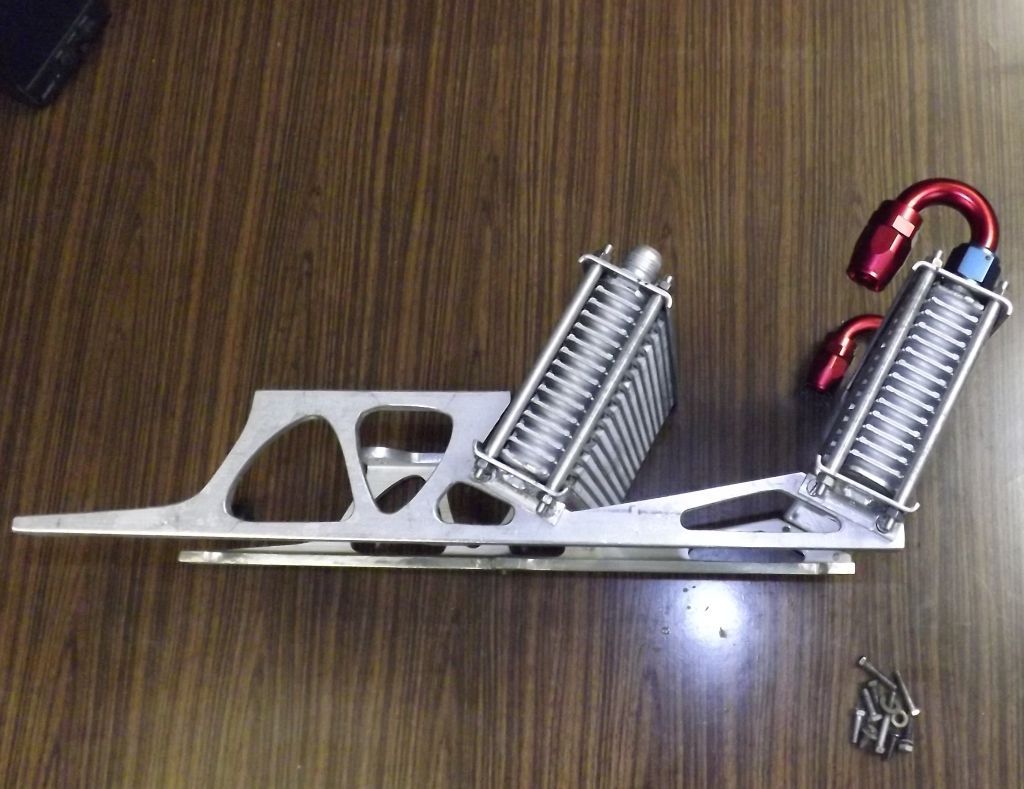

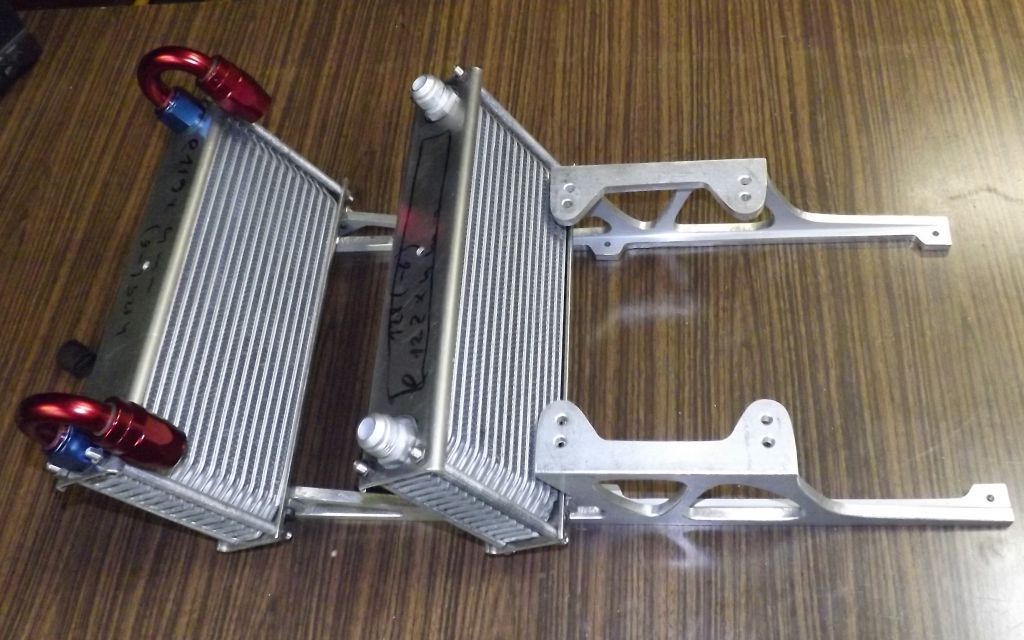

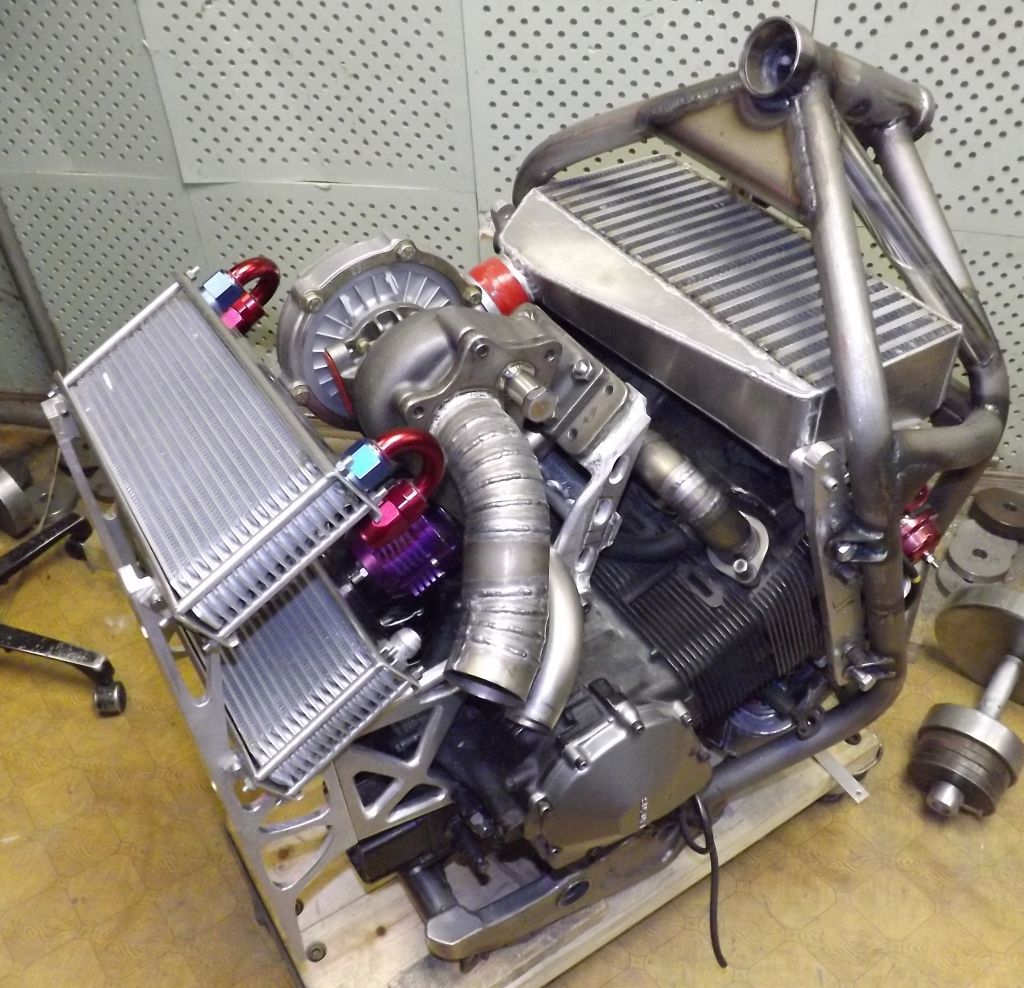

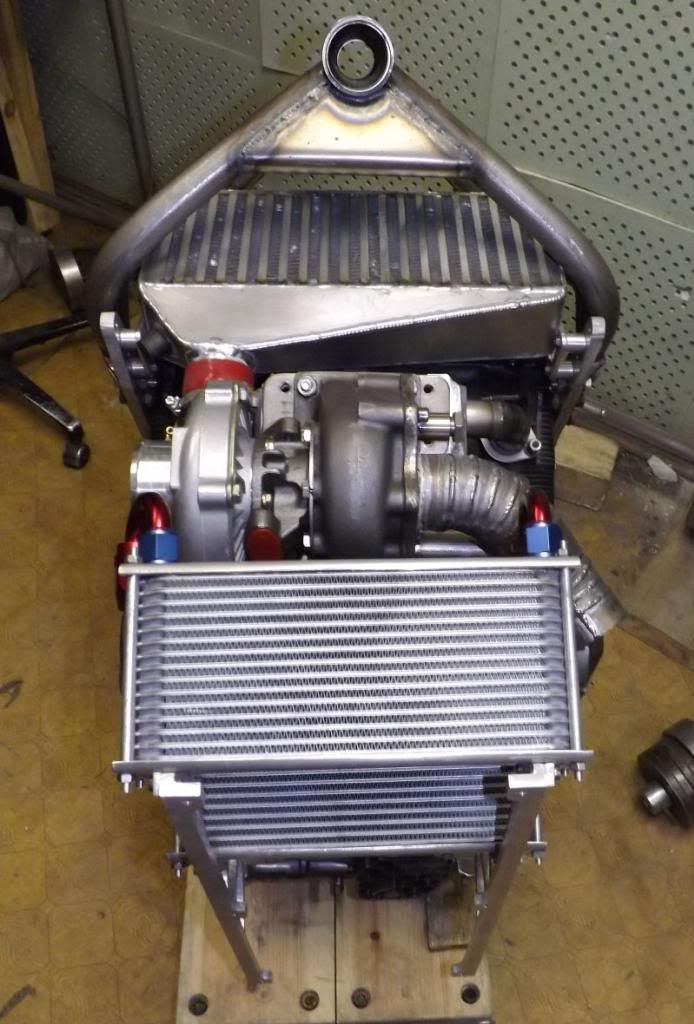

took 6 months to find the best place for oil coolers and just a coupla weeks to fab their mounts/holder
now they are gonna be always full being below the oil level, i can make a separate duct to each cooler and even to add fans if needed
http://i1175.photobucket.com/albums/...r/DSCF1164.jpg
http://i1175.photobucket.com/albums/...r/DSCF1160.jpg
http://i1175.photobucket.com/albums/...r/DSCF1161.jpg
http://i1175.photobucket.com/albums/...r/DSCF1163.jpg
http://i1175.photobucket.com/albums/...r/DSCF1162.jpg
http://i1175.photobucket.com/albums/...r/DSCF1165.jpg
http://i1175.photobucket.com/albums/...r/DSCF1166.jpg
