thanks lots blokes your moral support is precious for me besides other assets lol

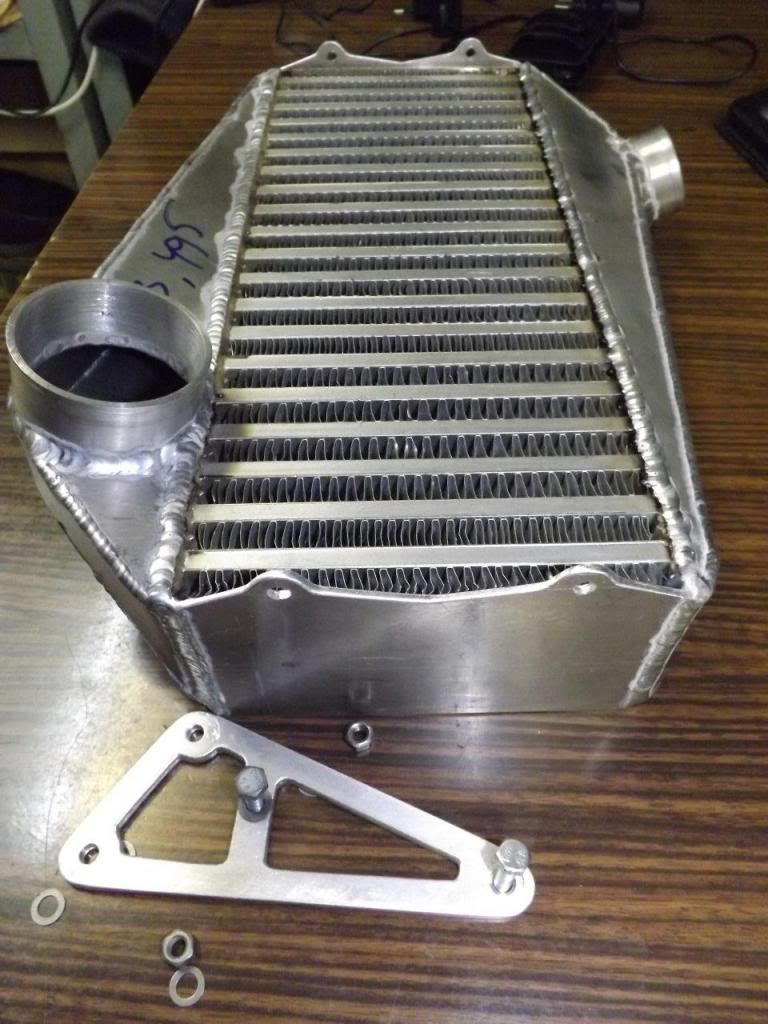

havent had a chance to continue welding the holes around bungs therefore trimmed the i.c. side plates instead
http://i1175.photobucket.com/albums/...r/DSCF5105.jpg

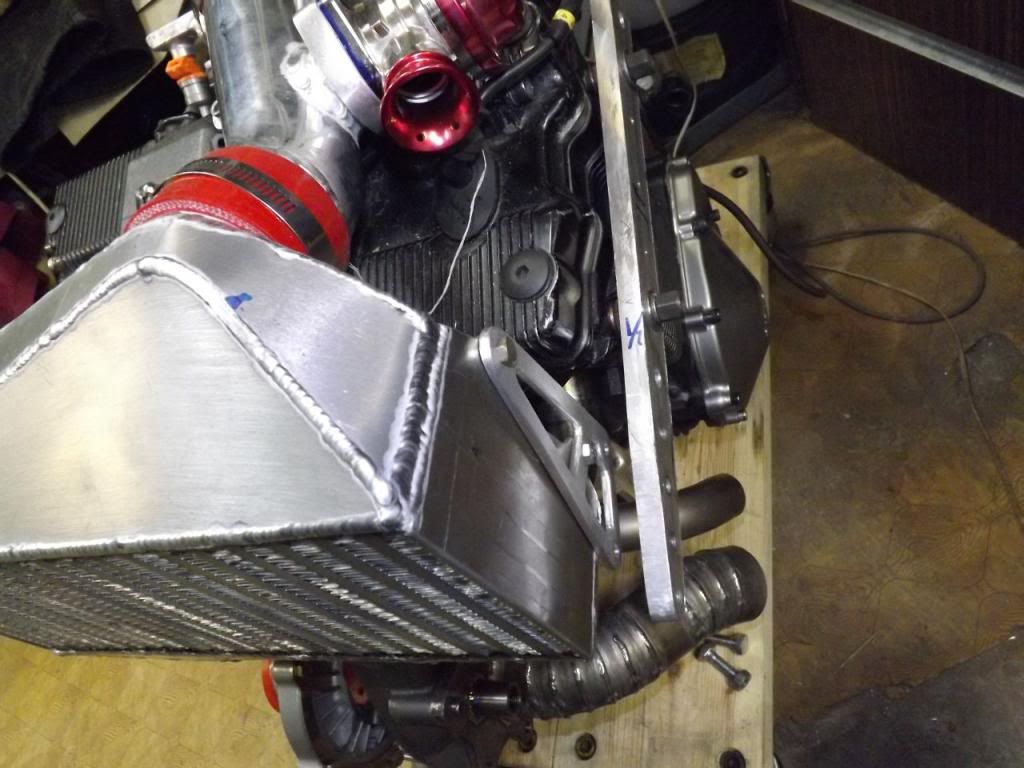

the i.c. levitates, bloody miracle!
http://i1175.photobucket.com/albums/...r/DSCF5106.jpg
you got the idea
http://i1175.photobucket.com/albums/...r/DSCF5107.jpg

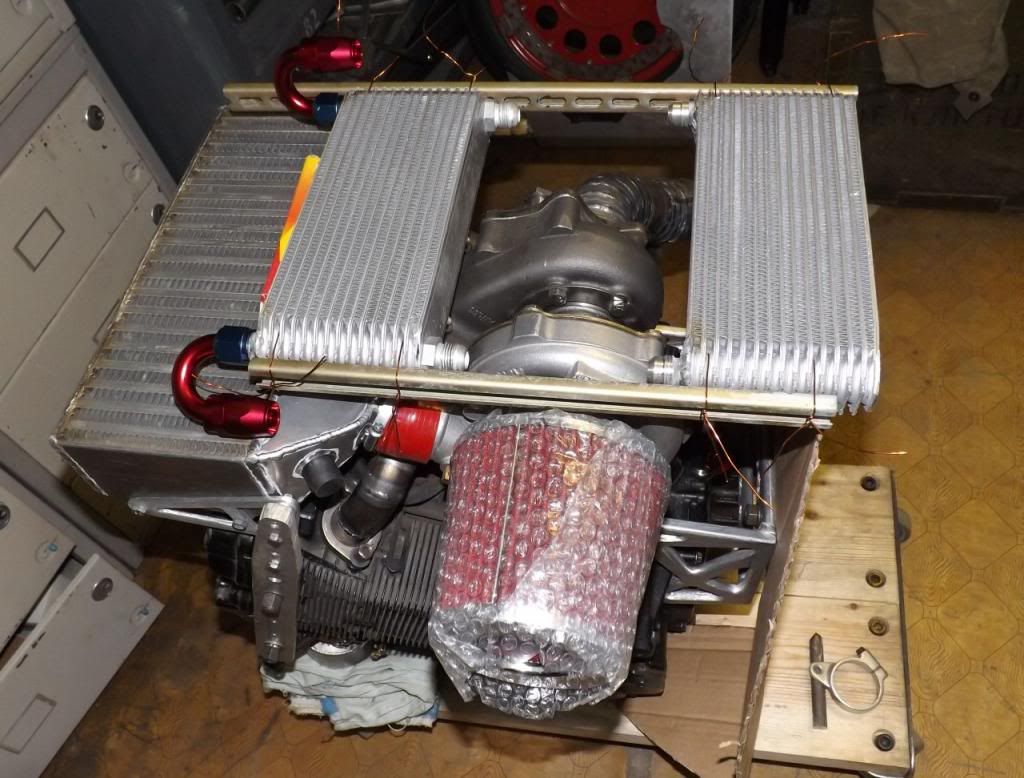

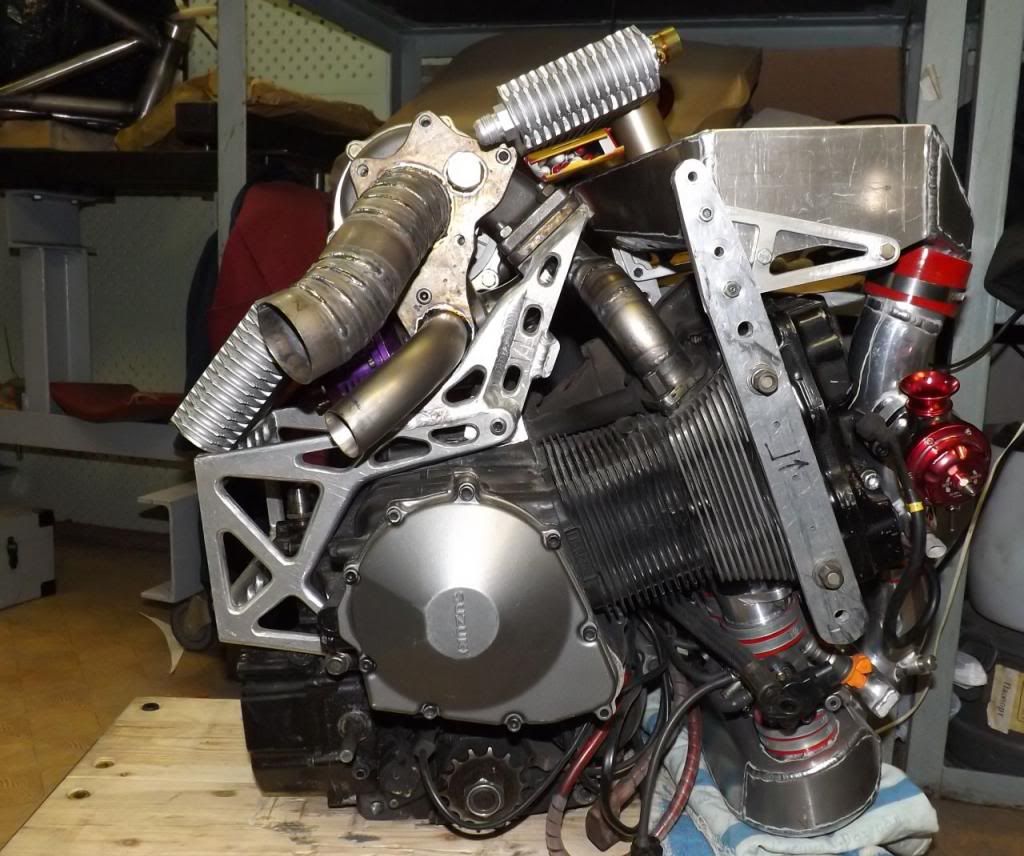

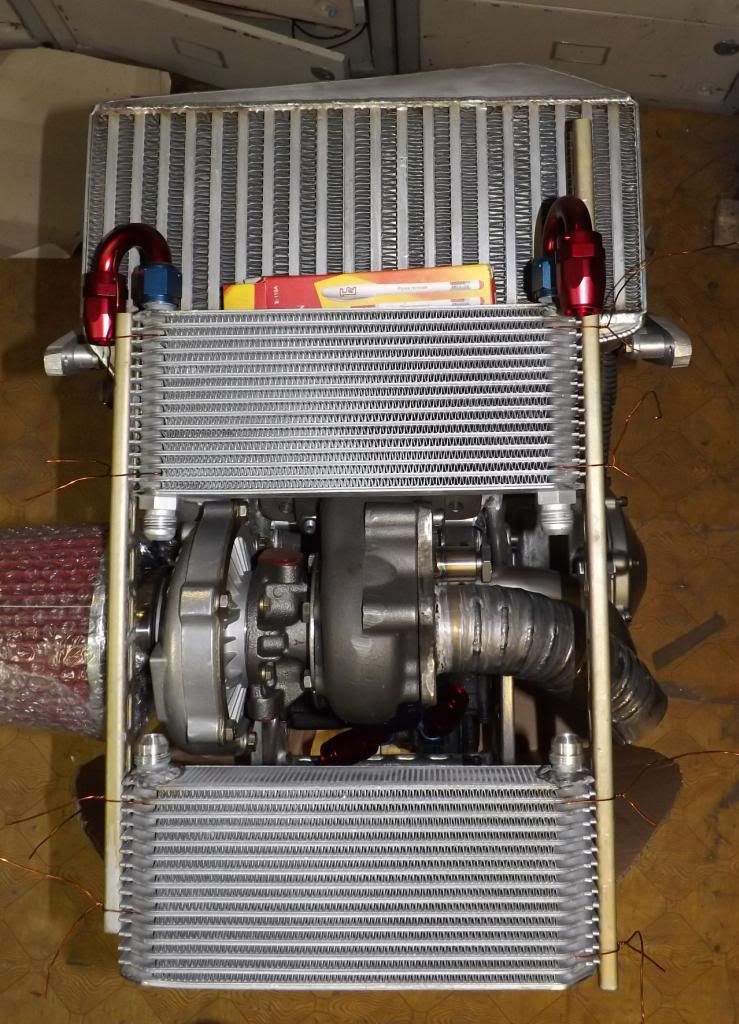

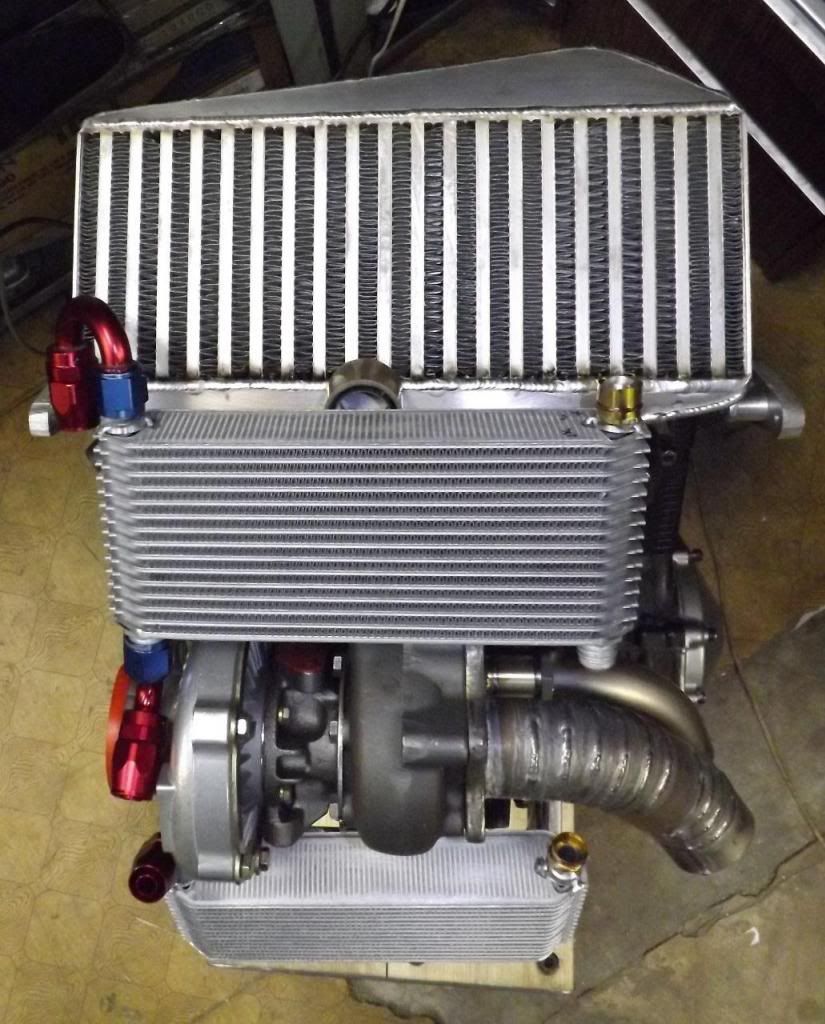

will have to set the coolers off to the right due to the compressor housing
will be hidden by scoops tho
http://i1175.photobucket.com/albums/...r/DSCF5108.jpg

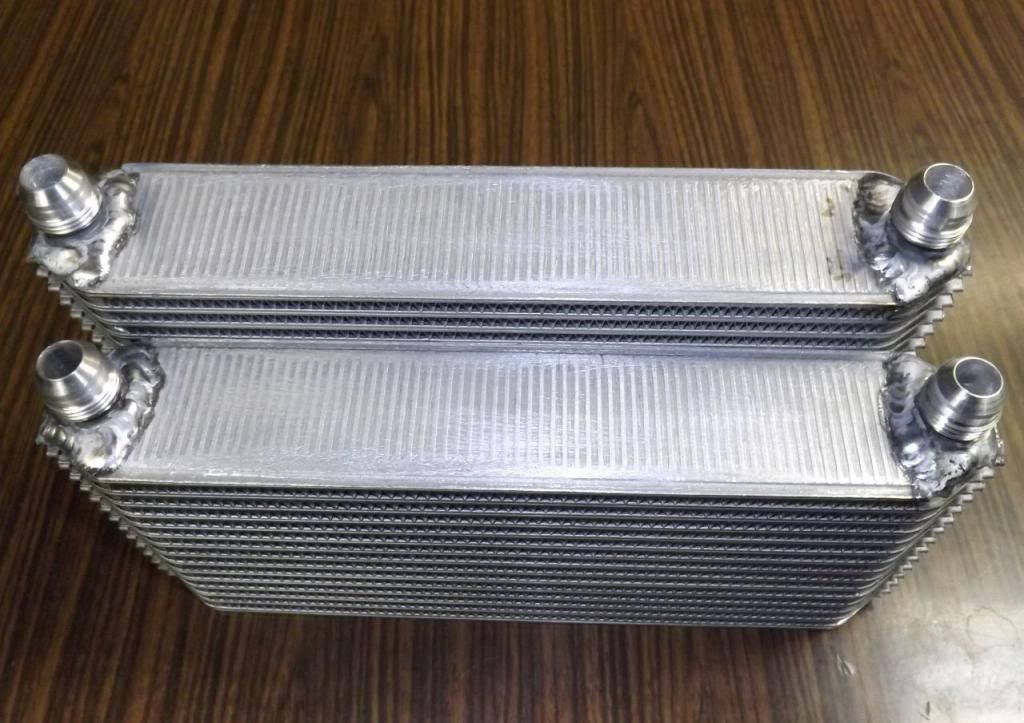

the coolers r prolley gunna be set at the same angle but i don't promise
http://i1175.photobucket.com/albums/...r/DSCF5109.jpg
are there any other nutters like you in Russia surt? or did they break the mold
spot on mate, all the russians r evil bastards, keep em away from Oz or they'll start breaking the molds, buildin communism and shit and jolly good aussies will have to relocate to nu zealund bahaha!
Nice try Surt..cause of all the people we want here you are on the short list ..what if we swap you for a current and a deposed prime minister..surely they can find a use for them cause we cant here..mate i just re read the first sentence of this thread and it made me laugh..
holy shit Morry all you have to do is to comfirm that you're my father
as for madam Gillie from wat i heard you'd donate her to some african cunt'ry's zoo
just checked up this thread beginning what can i say? the story of my life, saw the ride fast and simple but in for a penny in for a pound... and sheilas just can't wait till the bikes finished bwahaha!

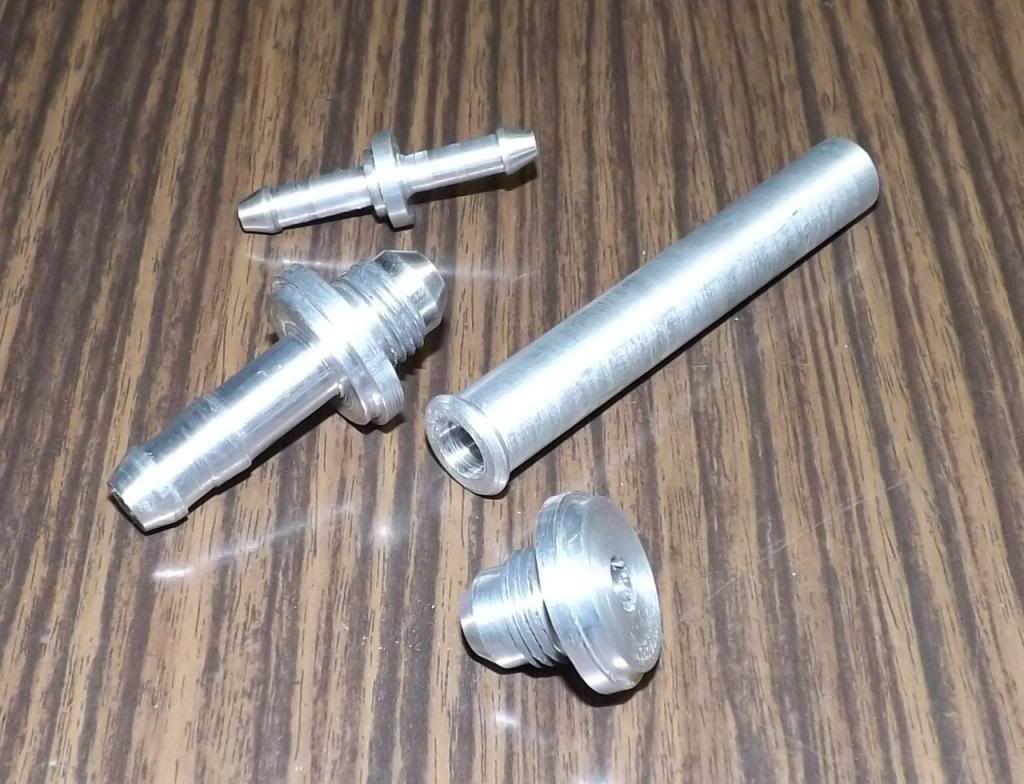

the bungs for fuel pick up and return as well as for tank vent and engine vent are all made
http://i1175.photobucket.com/albums/...r/DSCF5115.jpg

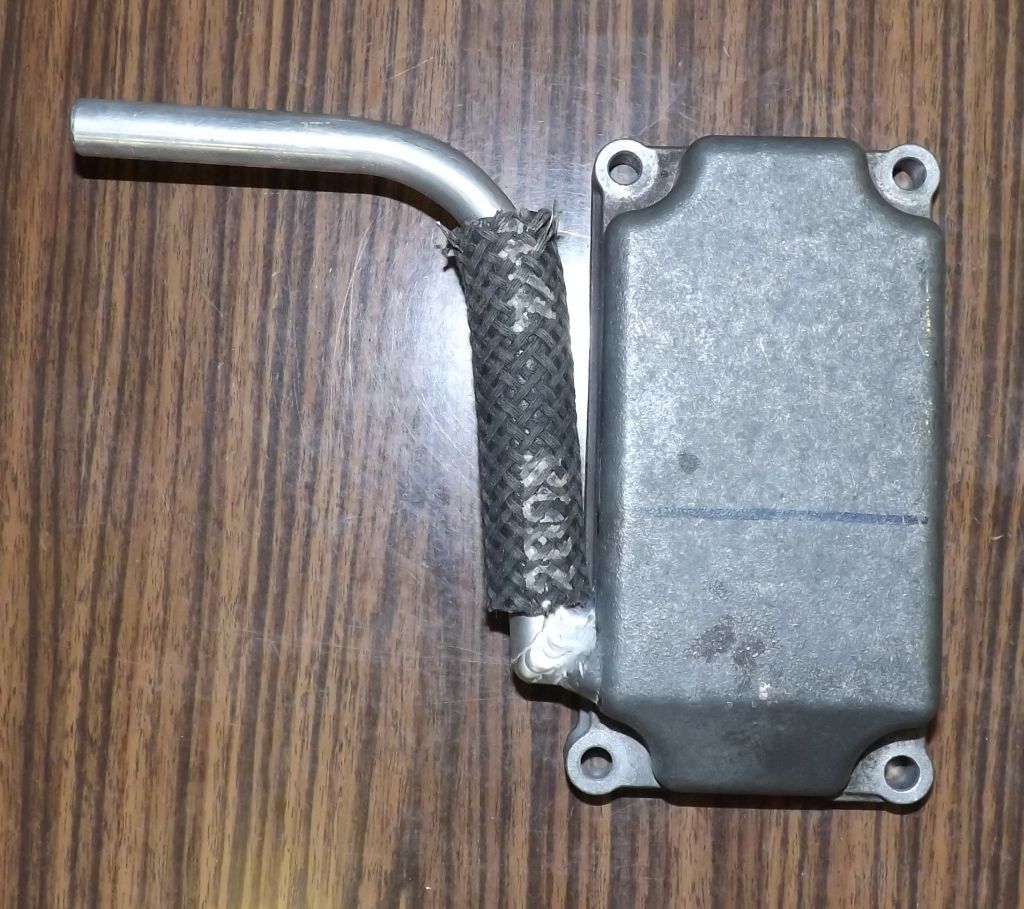

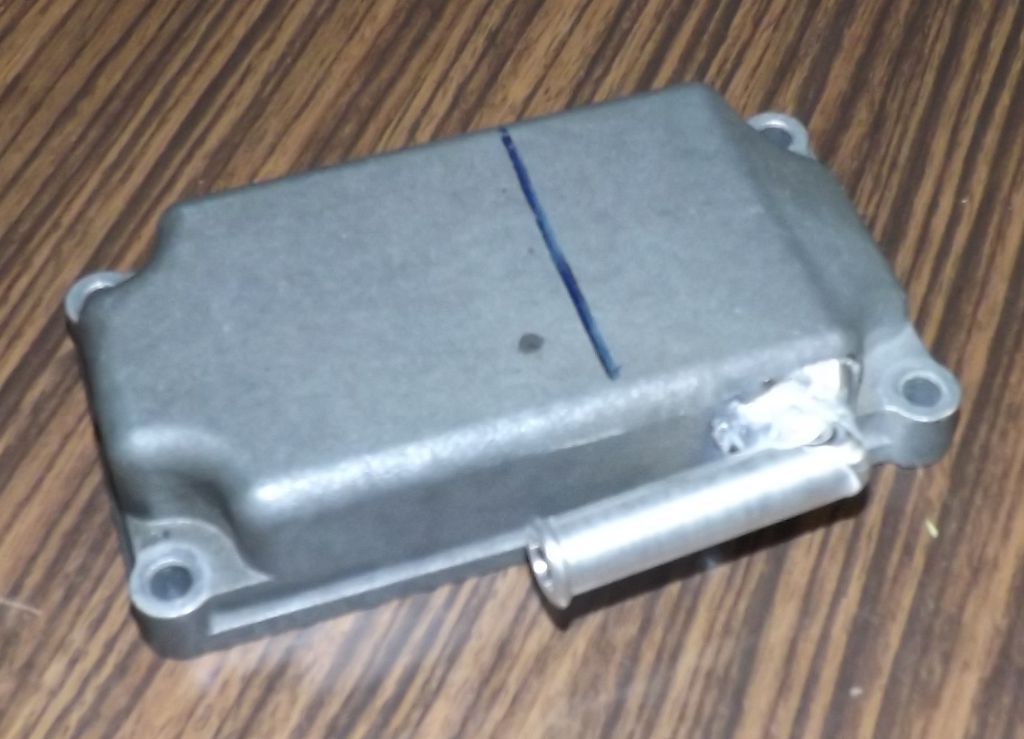

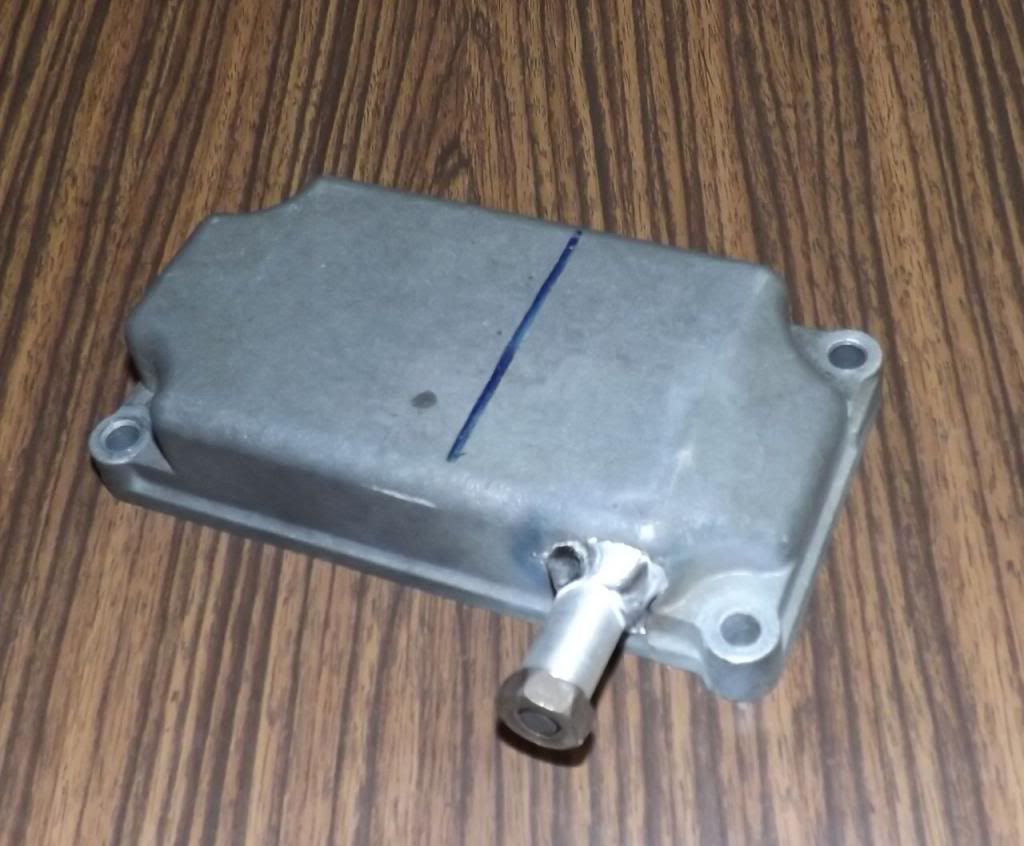

breather nipple's gotta be turned away off i.c. piping
http://i1175.photobucket.com/albums/...r/DSCF5116.jpg

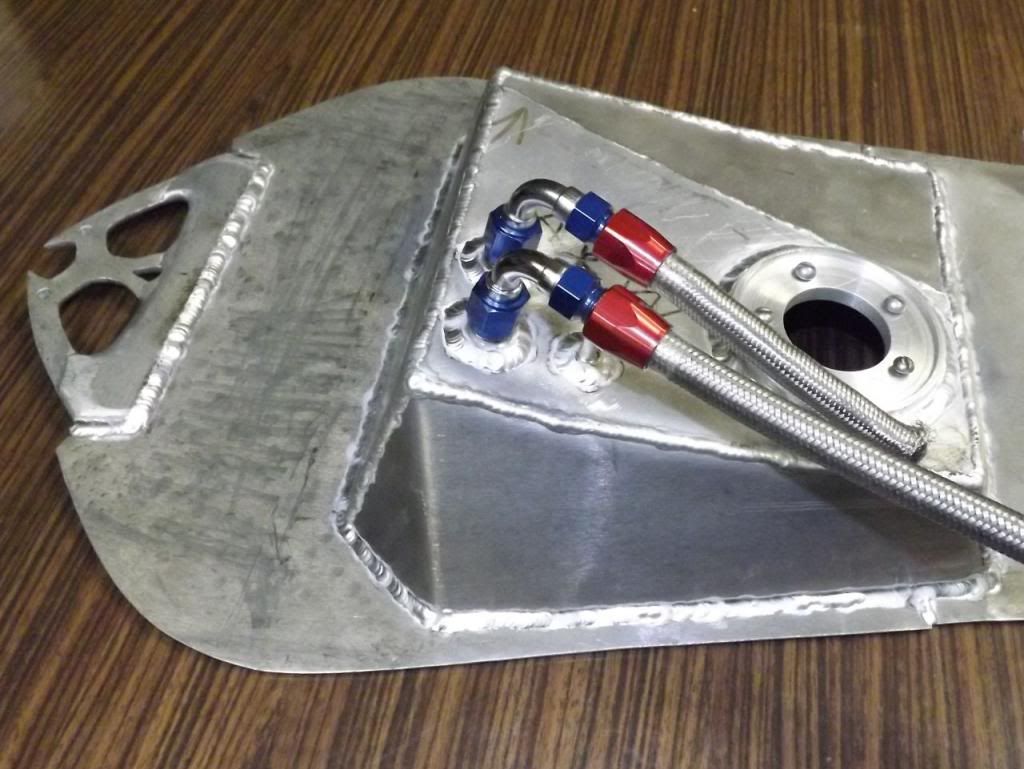

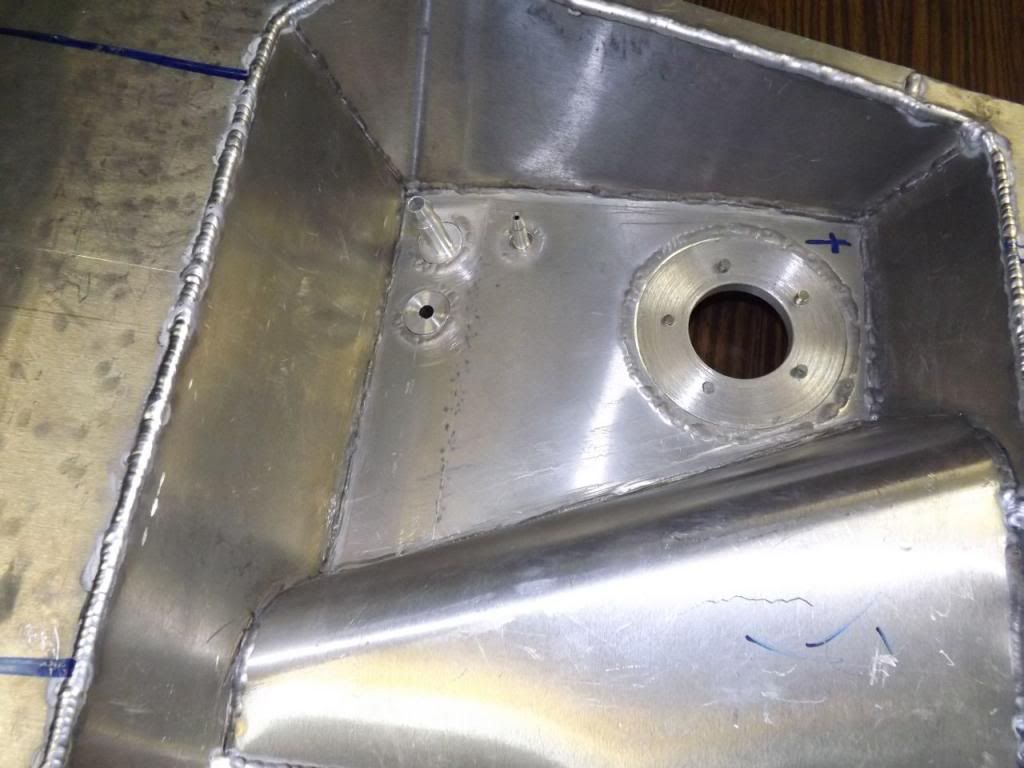

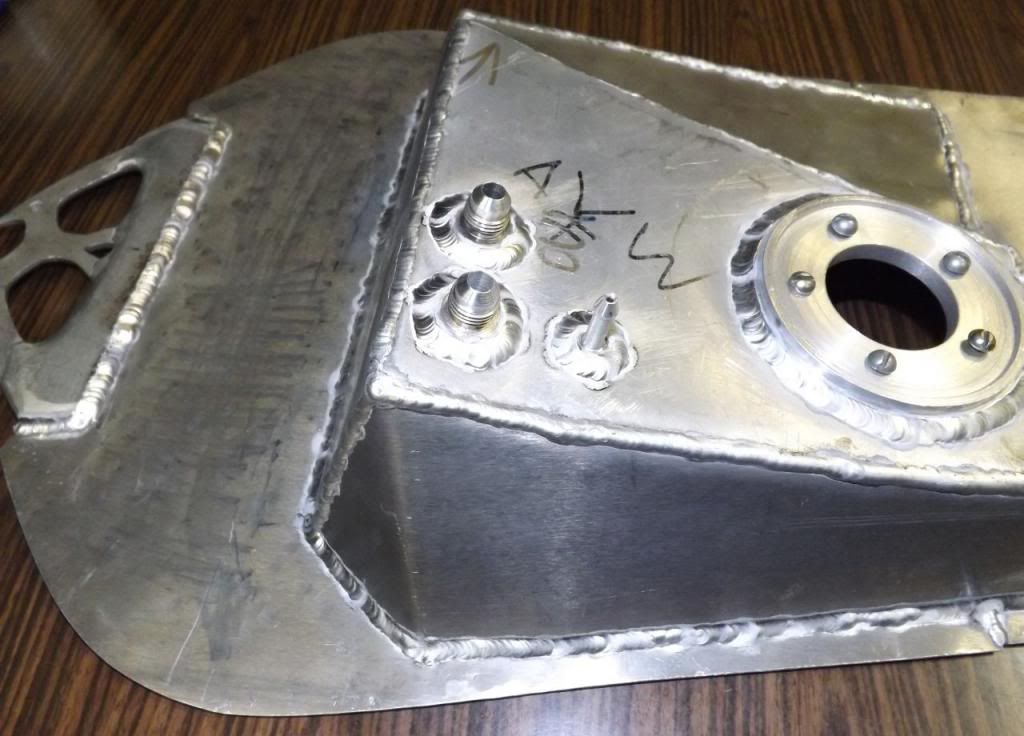

been workin out the best location for the bungs, the lowerest point of the tank for fuel pick up is the front part of the "sink" so be it! pretty close to the head cover thats why the bungs r welded directly in the tank instead of using traditional scheme where weld on metric bung with metric to AN adapters are used...
http://i1175.photobucket.com/albums/...r/DSCF5117.jpg
http://i1175.photobucket.com/albums/...r/DSCF5119.jpg
AN8 fittings r borrowed from the christCRUSHER project may Satan keep it at hand at the gates of hell
http://i1175.photobucket.com/albums/...r/DSCF5120.jpg
http://www.youtube.com/watch?v=0t1FplvMH6I
Damn thats some sexy craftmanship there Surt. Keep up the great work mate.
This build just keeps getting better Surt.
So when are you starting to lathe up wheels.... ;)
thanks mates, nah no billet wheels, making just what i can't buy, really keen to finish the project asap
http://i1175.photobucket.com/albums/...r/DSCF5121.jpg
http://i1175.photobucket.com/albums/...r/DSCF5127.jpg

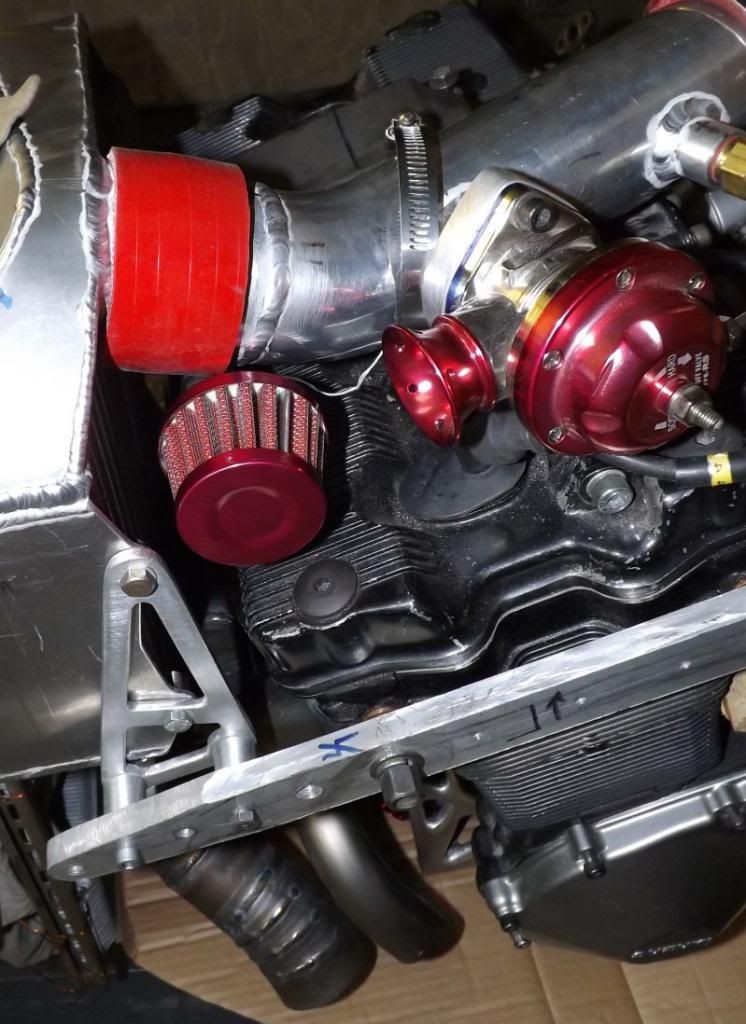

http://i1175.photobucket.com/albums/...r/DSCF5129.jpg

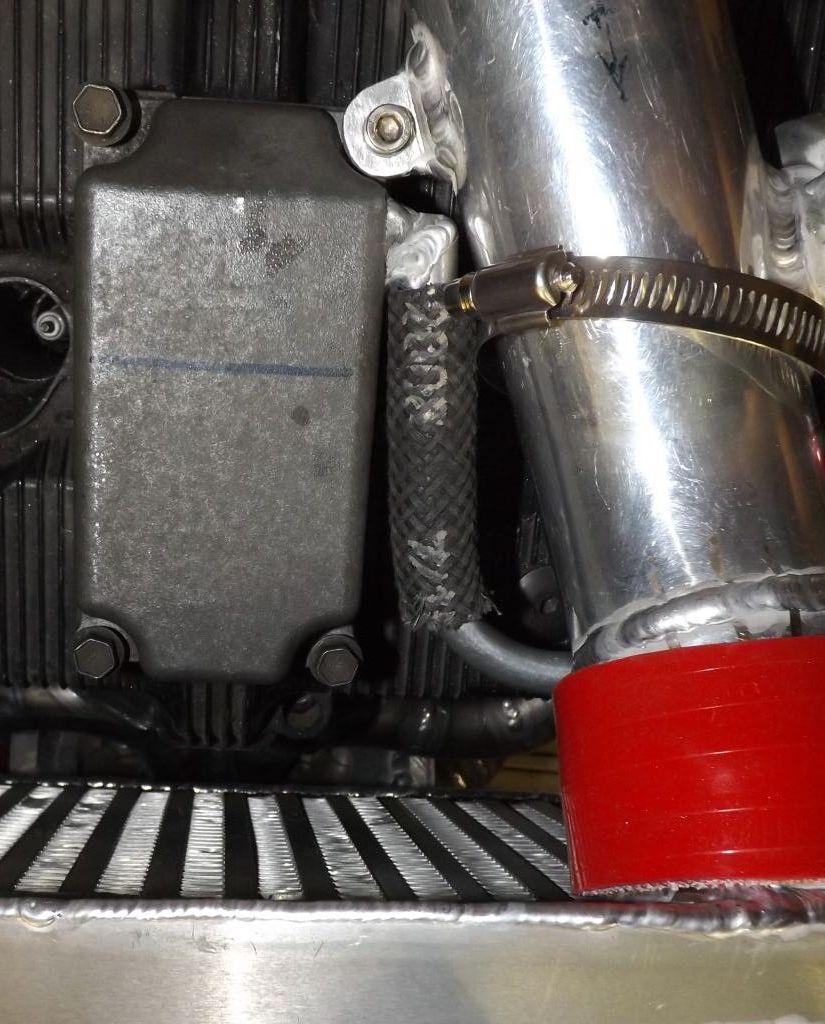

http://i1175.photobucket.com/albums/...r/DSCF5130.jpg

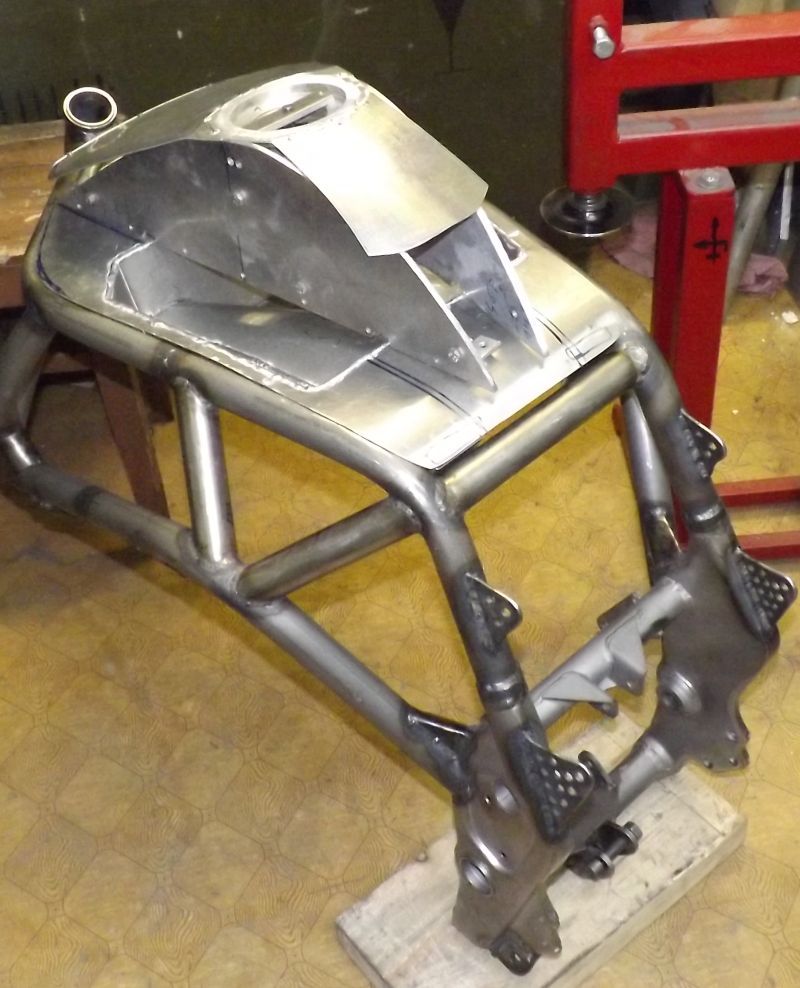

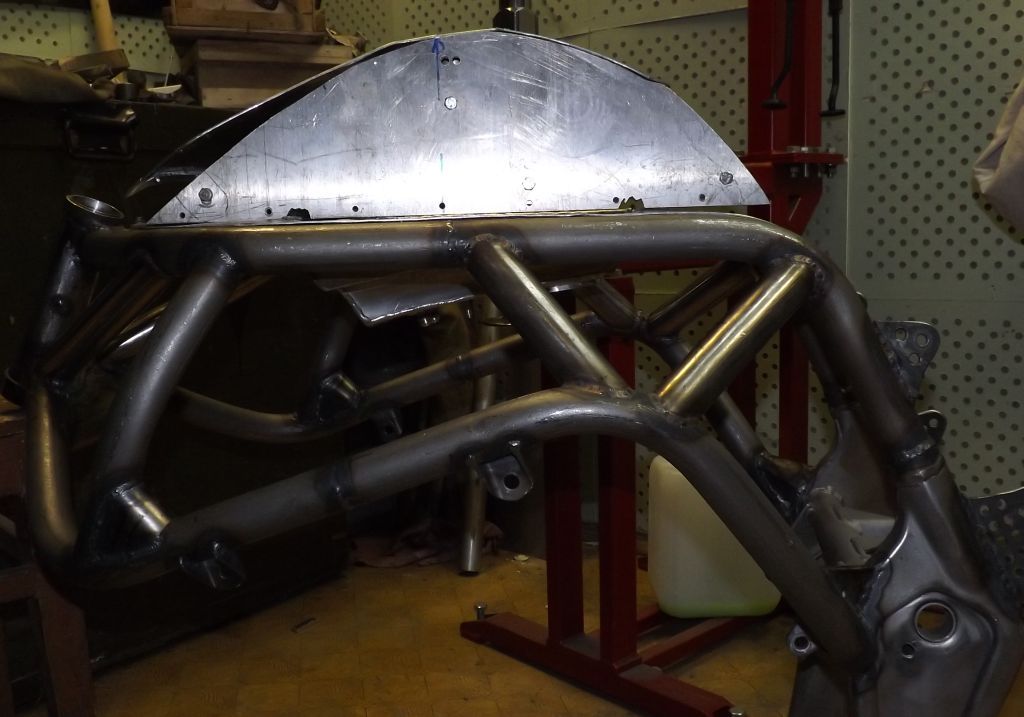

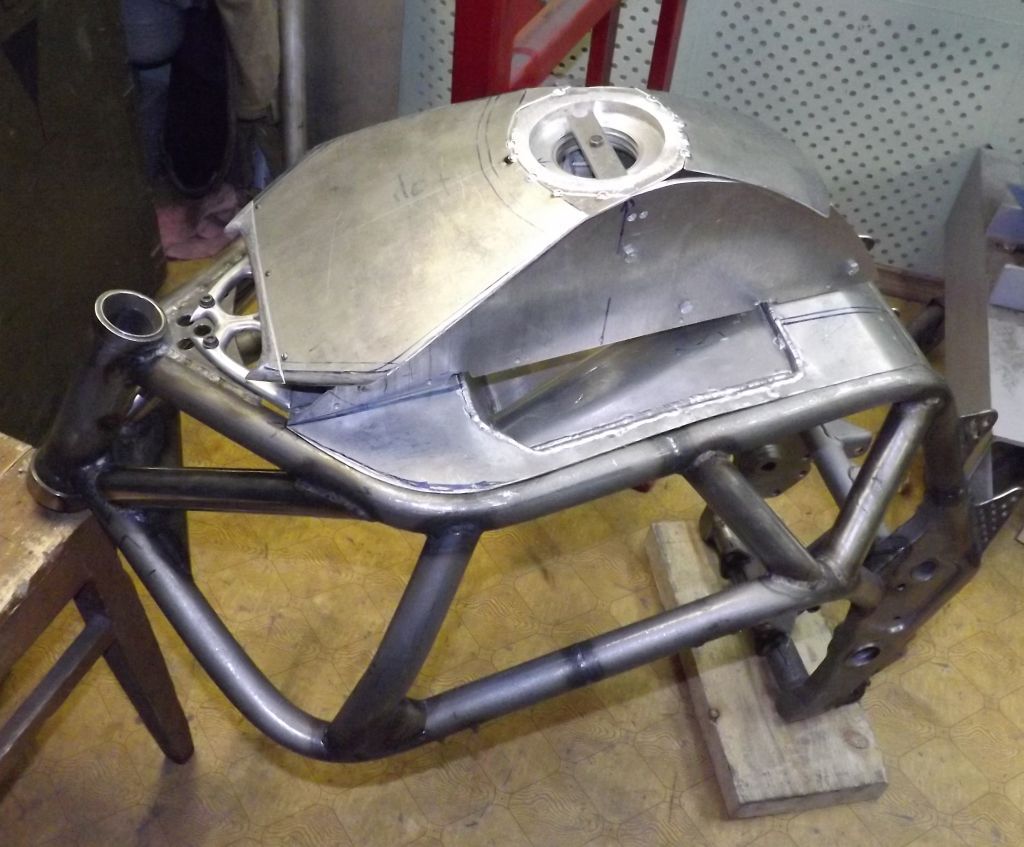

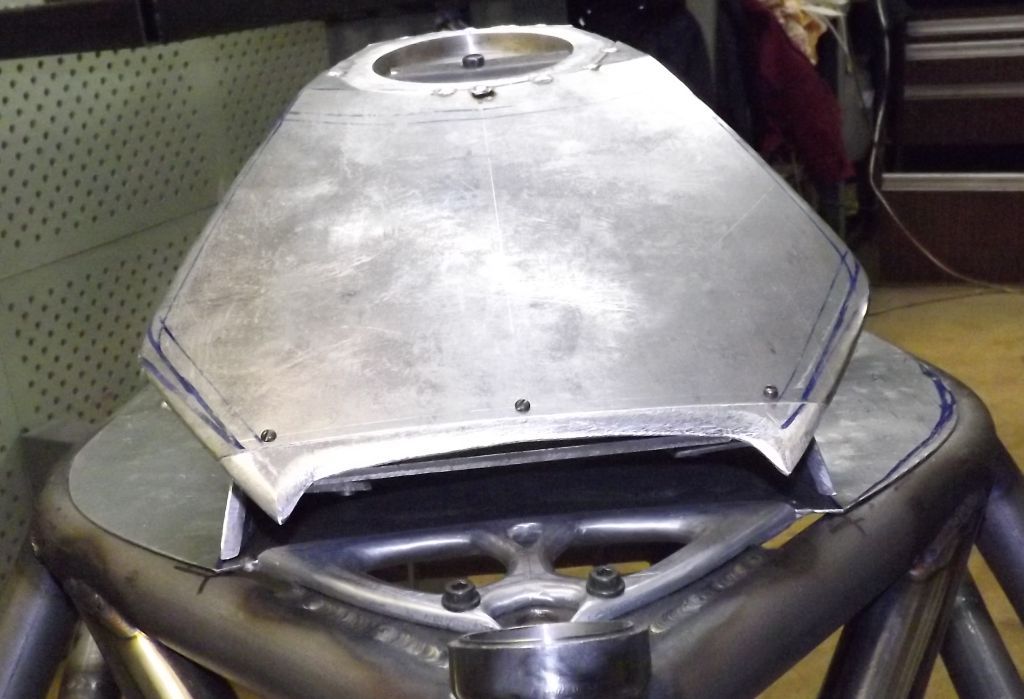

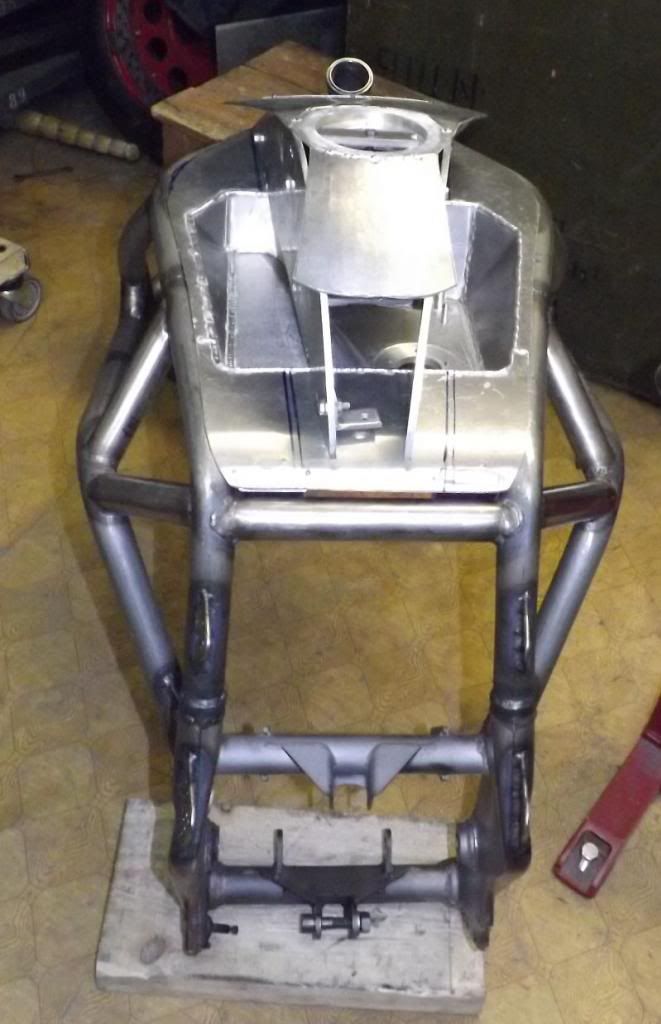

lets tank!
http://i1175.photobucket.com/albums/...r/DSCF5131.jpg
http://i1175.photobucket.com/albums/...r/DSCF5132.jpg
http://i1175.photobucket.com/albums/...r/DSCF5133.jpg
http://i1175.photobucket.com/albums/...r/DSCF5134.jpg

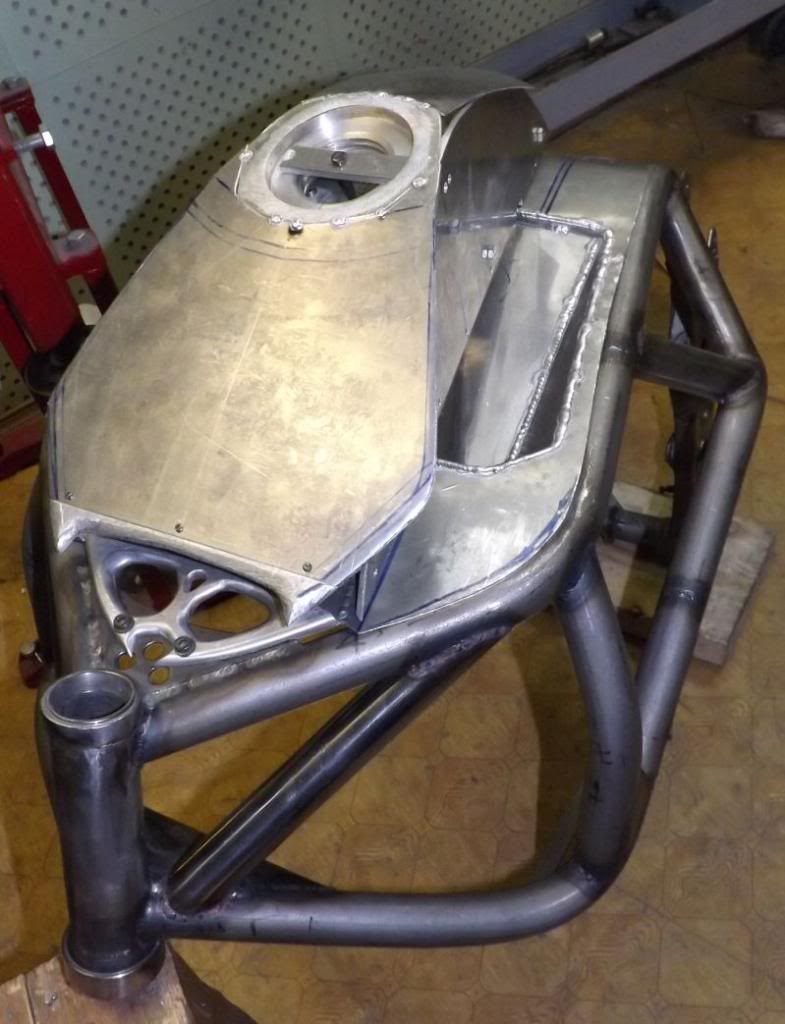

http://i1175.photobucket.com/albums/...r/DSCF5135.jpg
http://i1175.photobucket.com/albums/...r/DSCF5136.jpg

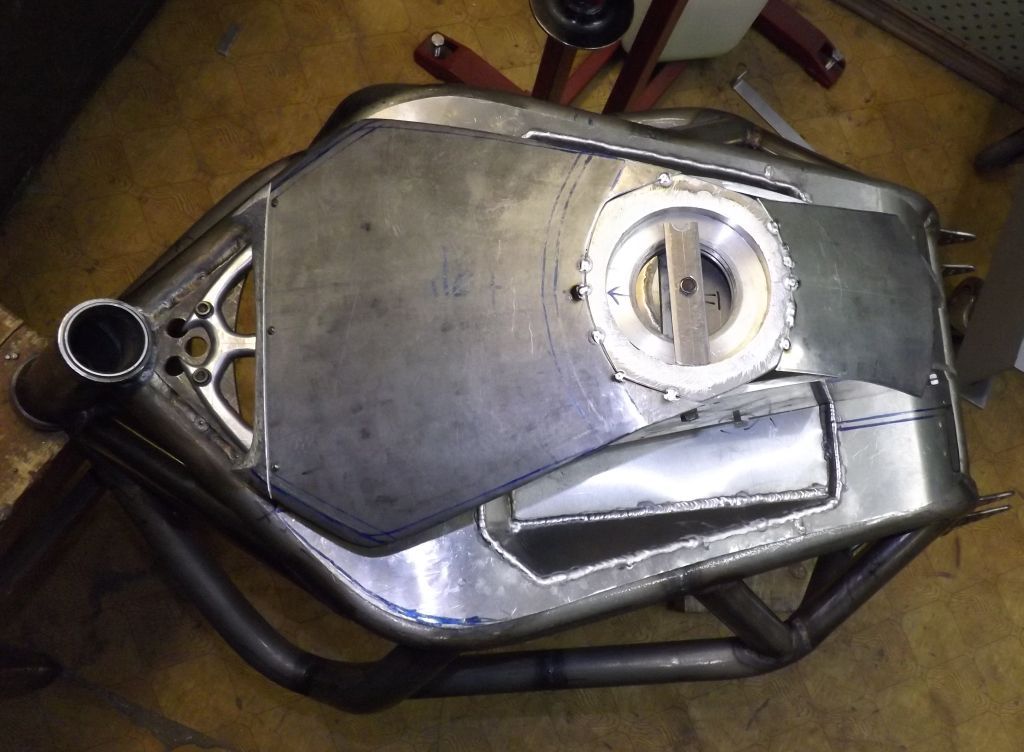

http://i1175.photobucket.com/albums/...r/DSCF5137.jpg

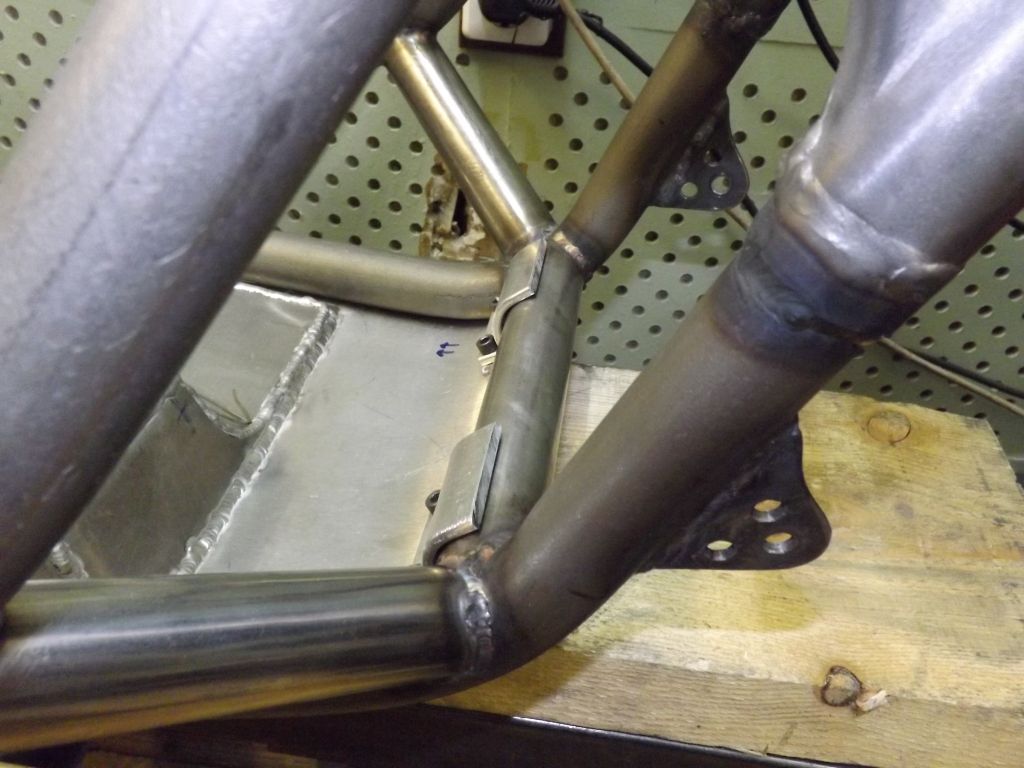

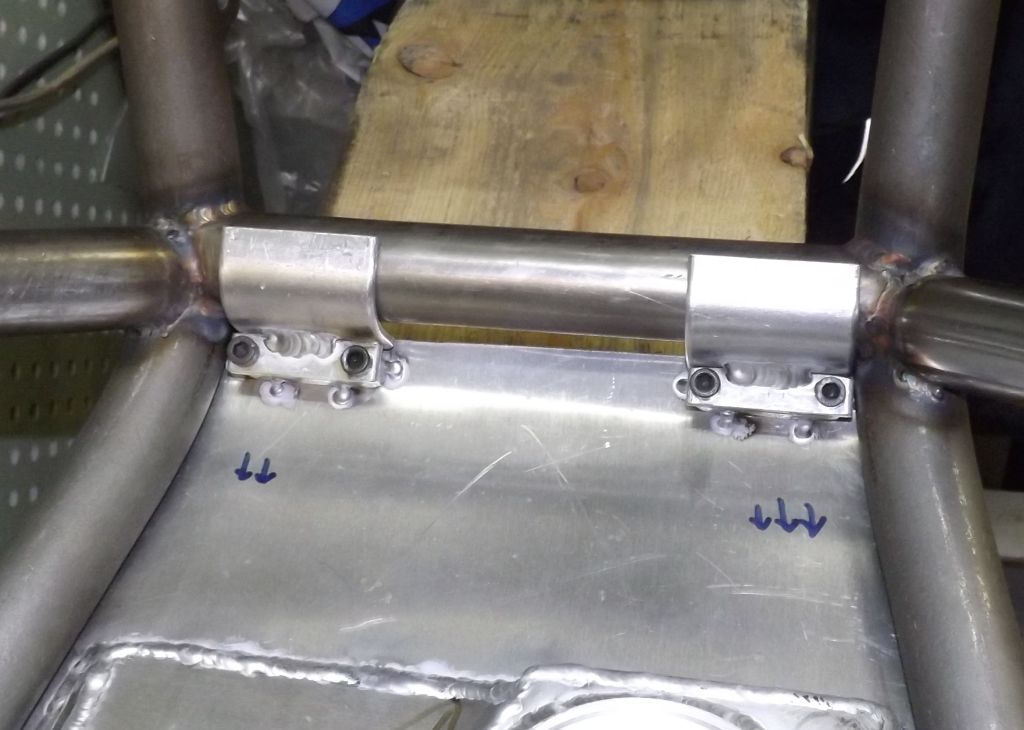

rear mounts are simple as
http://i1175.photobucket.com/albums/...r/DSCF5138.jpg
http://i1175.photobucket.com/albums/...r/DSCF5140.jpg
but they do their job alright - the tank can be easily removed or just raised

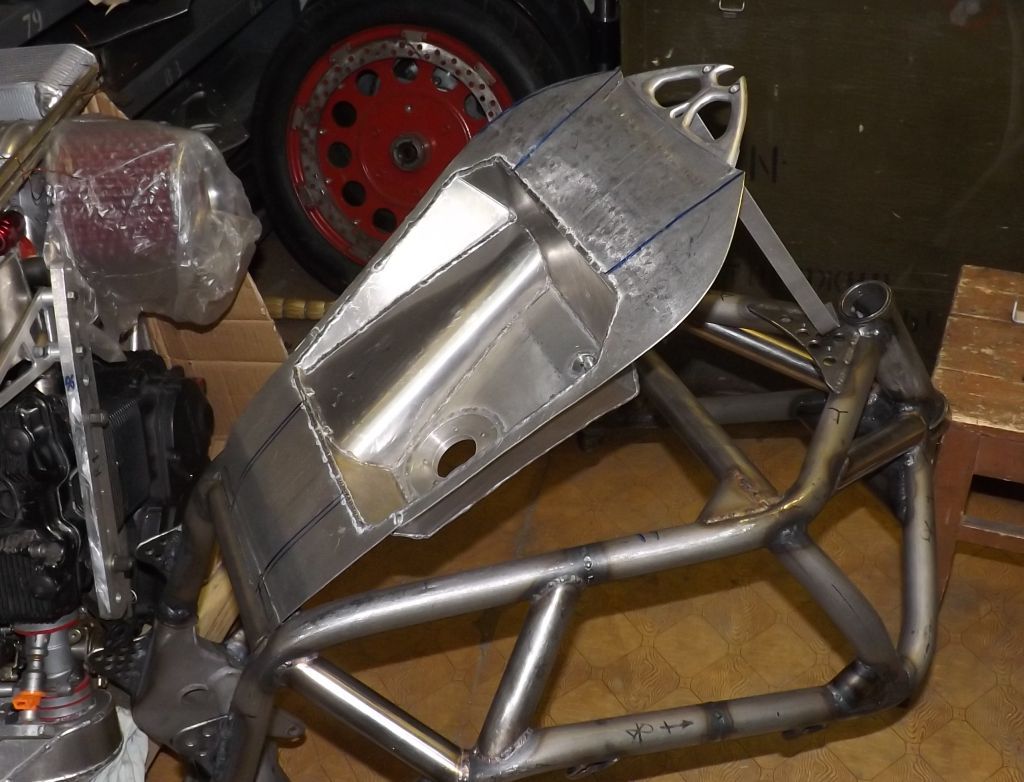

http://i1175.photobucket.com/albums/...r/DSCF5141.jpg

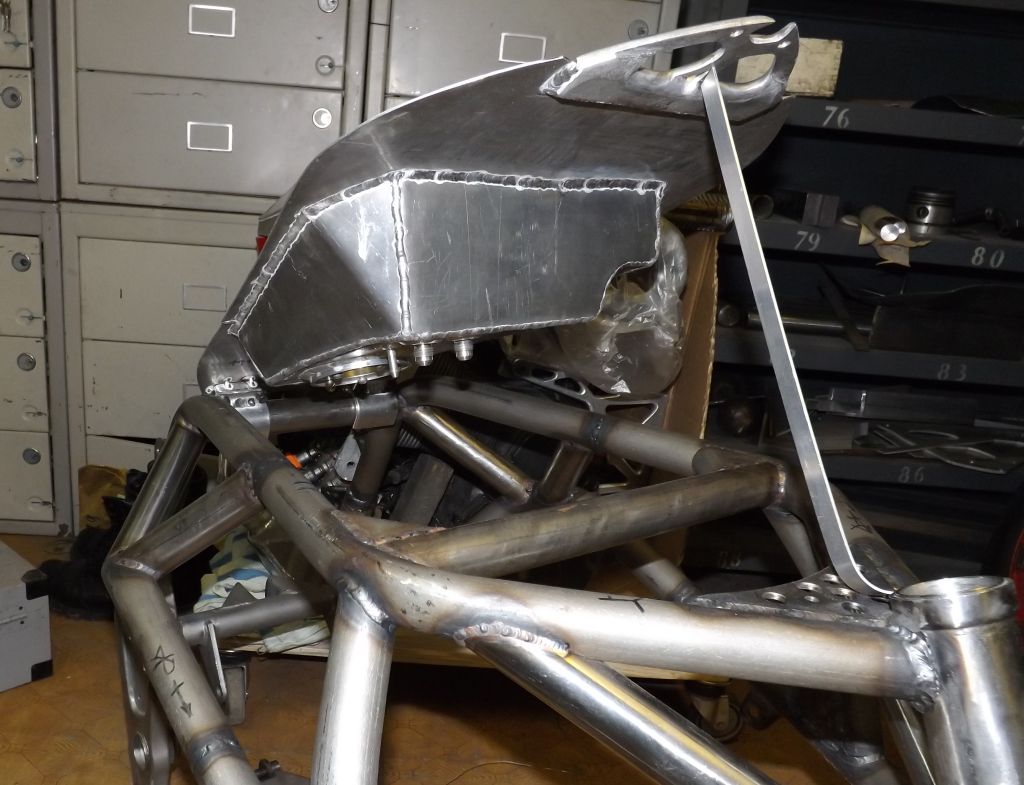

http://i1175.photobucket.com/albums/...r/DSCF5143.jpg

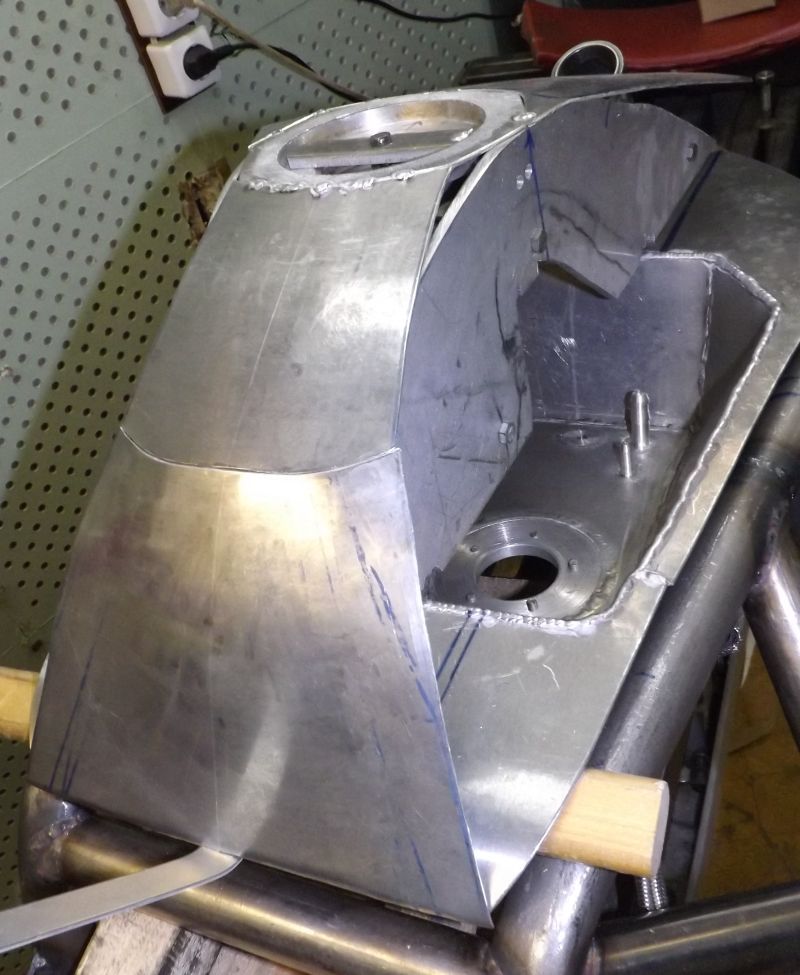

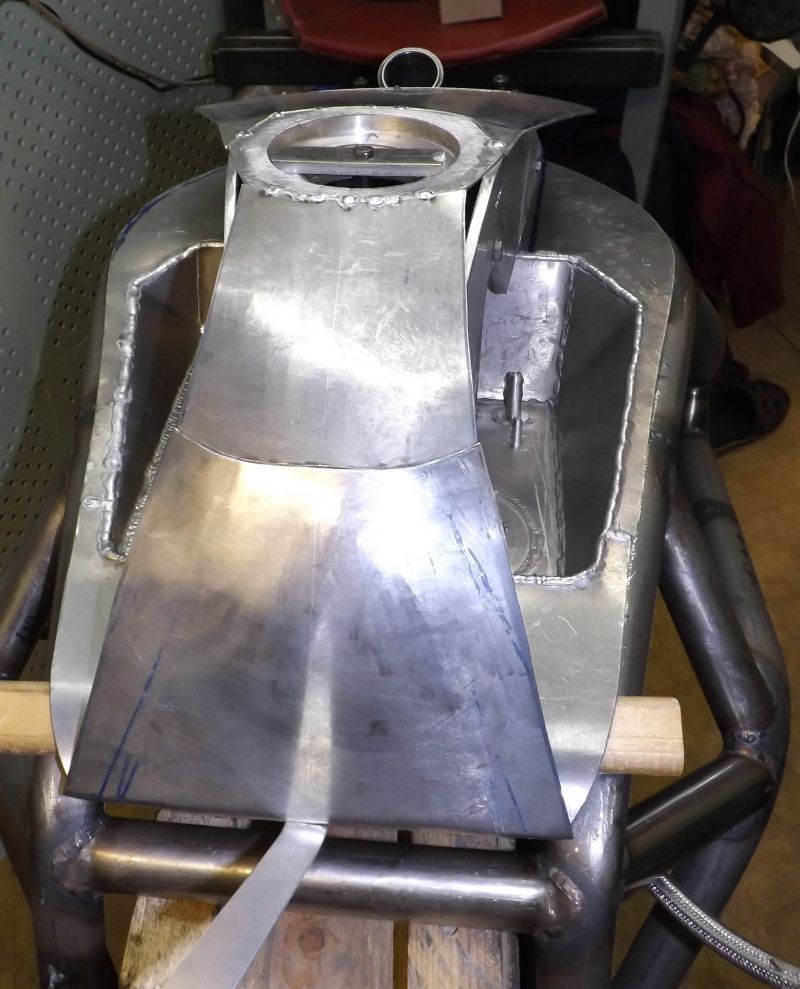

the rear panel is ready for welder
http://i1175.photobucket.com/albums/...r/DSCF5144.jpg
http://i1175.photobucket.com/albums/...r/DSCF5145.jpg
How are you planing to form the sides of the tank Surt ? English wheel ?
yup the same e'wheel that formed the upper panels mate
Sweet ! Get to it then.... lol
This thread is motivating me to finish something..
Lookin evil mate
