So it's back together, and look no bits left over so bonus

http://i1136.photobucket.com/albums/...psiy7iiif7.jpg

...

You cutting keys now?

Yeah..with his skills and talent....Bunnings have snapped him up lol

Quote:

---

Originally Posted by Nudie

You cutting keys now?

---

Well yes, the key to any successful internal combustion
4 stroke engine, the humble poppet valve.....

Ello Poppet.

https://m.youtube.com/watch?v=4kdjPhmQA0k

well even misses poppet needs a mister tuner soooooooo
here is a seat cutter to match......... this one needs some parts
I am yet to find, but have a back up plan.

http://i1136.photobucket.com/albums/...pseyufnifx.jpg

.

workshop upgrades continue, material racking and welding gear shelve finished
I used 25mm mdf precut then routered the edges, cost a bit but more than happy with the result

http://i1136.photobucket.com/albums/...ps0qm9xsdo.jpg

http://i1136.photobucket.com/albums/...pszcp4up3p.jpg

http://i1136.photobucket.com/albums/...ps21subgp0.jpg

.

now I have my fab table backi can spend my lonely Saturday nights doing much more interesting things
like to some test holes for the reamed tapper dowels I will be using to locate the main part of my frame jig.
Im using a mt2 tapper because the mt2-mt1 drill adaptors I will use for dowels are cheep as chips

http://i1136.photobucket.com/albums/...psf7ltqqn1.jpg

http://i1136.photobucket.com/albums/...psngkvd07g.jpg

http://i1136.photobucket.com/albums/...ps3w8uoi9r.jpg

.

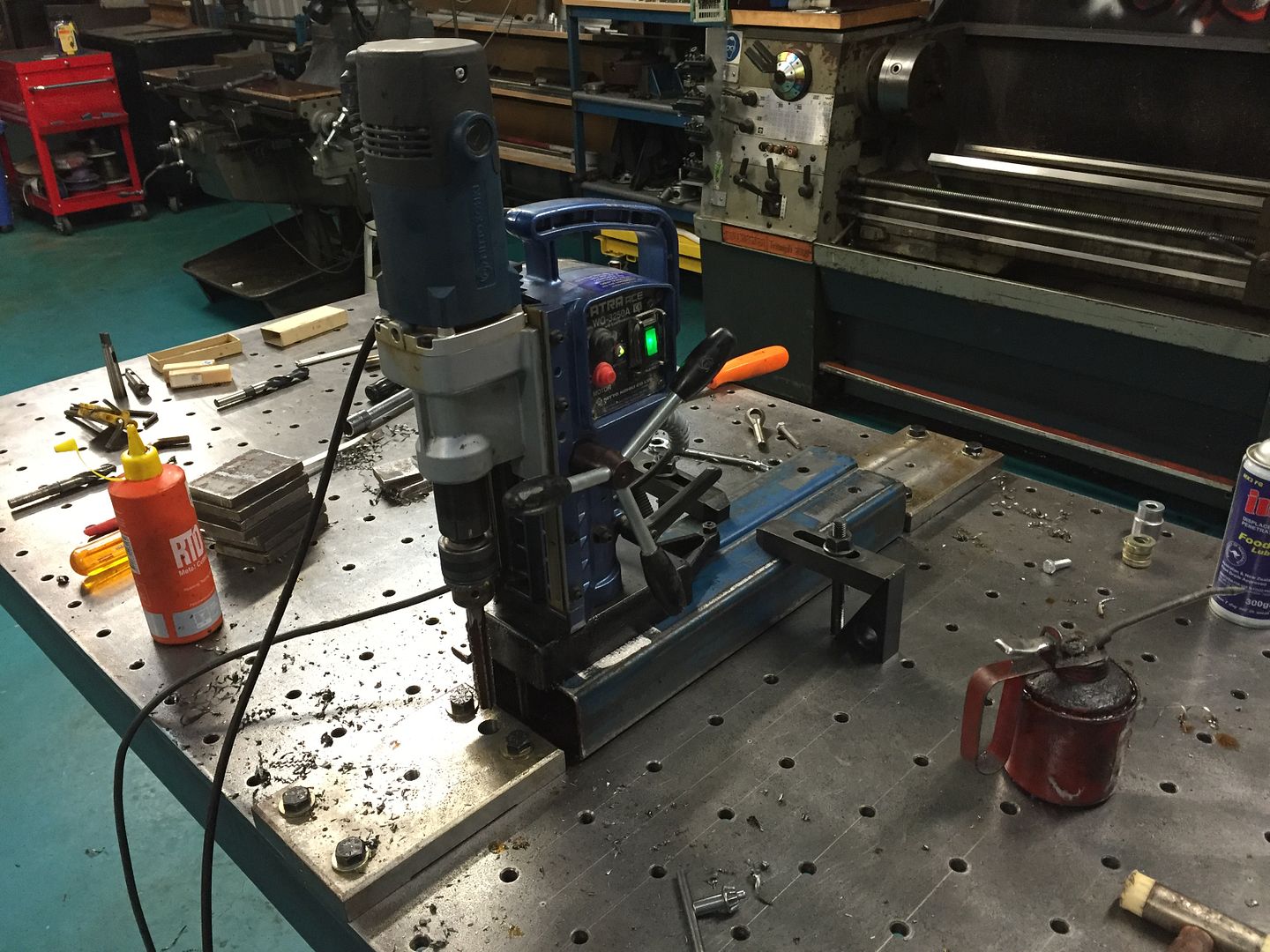

location tapered holes check........

http://i1136.photobucket.com/albums/...psov67ffs7.jpg

http://i1136.photobucket.com/albums/...psp7ng0kxs.jpg

starting to set up for final positioning and welding preparation.......

http://i1136.photobucket.com/albums/...psytasogx8.jpg

..

That is one hell of a cool set up mate! Nice work.

Quote:

---

Originally Posted by Gix11

That is one hell of a cool set up mate! Nice work.

---

Thanks si, it keeps me out of mischief:-)

And what's wrong with mischief?

Quote:

---

Originally Posted by Mr Hyosung

And what's wrong with mischief?

---

That I normally end up waking up cold, wet and alone in a pool of my own mess...........

so I keep finding uses for my fab table. I'm using 25mm precision ground bar as part of the set
up for weld out of this section of the frame jig. Needed a groove exactly half way for the plum bob,
set up made easy. Then when machining I noticed the brand new bar had a bend. Once I measured it
I was surprised to find it was actually 0.74mm bent. After some short panic I came up with this solution.
Rather chuffed to discover straightening it was way more easy than I could have hoped for.

http://i1136.photobucket.com/albums/...psill4g1tz.jpg

http://i1136.photobucket.com/albums/...pscjddogls.jpg

.

0.74mm. ....you engineer types....

Quote:

---

Originally Posted by Gix11

0.74mm. ....you engineer types....

---

funny enough your not the first to say that bwahahaha

this set up is killing me.......

for the rest of the system to work properly these points have to be spot on and
trust me that is painful. Spot on is hard enough on one plane, two planes is a pain
but in three planes is just fucking horrible........
There is nothing i can do to stop it all moving a touch when its welded out even with a good weld sequence and strong clamping,so the closer
i am before i start the better.

http://i1136.photobucket.com/albums/...pszqxi2dfh.jpg

.

I was only going to use the mig wire to square the alignment to the center line
via triangulation, then i realised i could easily use some of the jig parts i used for the drag bike build to give me a second way of verifying.

It took almost 6 hours to weld but the frame jig main mounts are now welded........
Instead of pics, I took time lapse on the phone and created the first " Lynton land " clip
enjoy

https://www.youtube.com/watch?v=vQRFxkr3qSo

.
