Quote:

---

Originally Posted by damo1

Surt i have to ask , how hard is it to get a one off custom turbo bitsa registered over in Russia?

---

I would imagine an under the counter payment should still work?

I'm still in awe of this work Surt. Bloody great mate. This is the epitome of shed building.

Looking great Surt, and yet again, some very innavitive ideas :)

I always look forward to your updates to see whats going on and now, because of you, i am thinking of some different solutions to my oil cooler and IC rather than just sticking back on what came off !!!

AWESOME , keep it up.

Wow. Just spent two days of interweb time reading this whole thread, and it's awesome. The only thing that could make this build thread better are some titty pics but there's plenty of those on the net, and only one Surt bike. Love it!

Fuckin ell Surt! This thing is a monster!

quite unexpected feedback blokes as i received no reply notification on me mail... bloody great to hear that you still like my wankerings... is there a word wankerings or im gunna patent it?
yip Dan under the counter payments are still welcomed like everywhere if they aint afraid to get nailed and have the hands chopped off

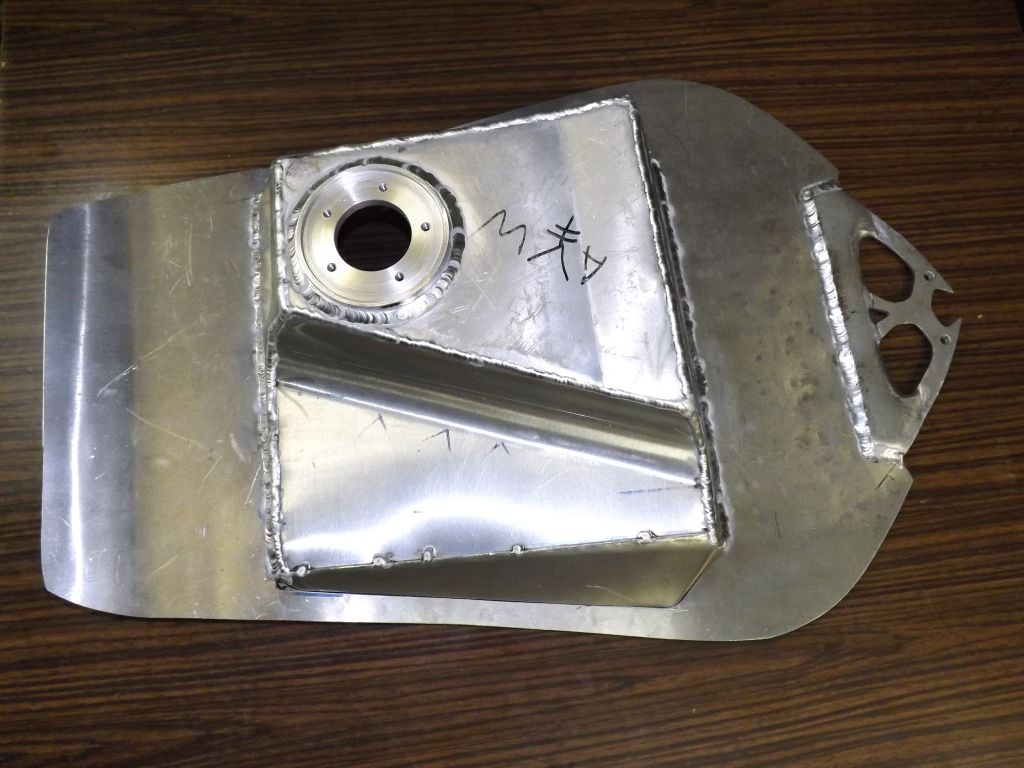

the extension is almost finished just fuel pick up and return bungs r to be made

http://i1175.photobucket.com/albums/...r/DSCF5059.jpg

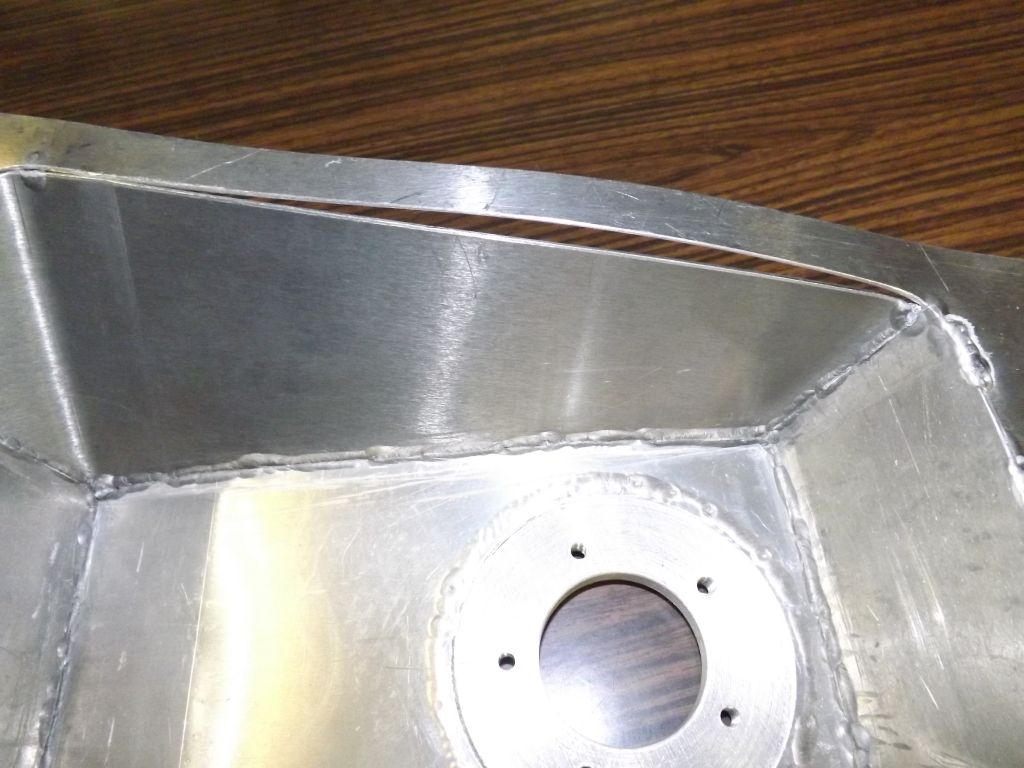

the base's shrunk due to welding but not that bad as it looks - just 1mm so i made 2 cuts to take away extra length

http://i1175.photobucket.com/albums/...r/DSCF5060.jpg

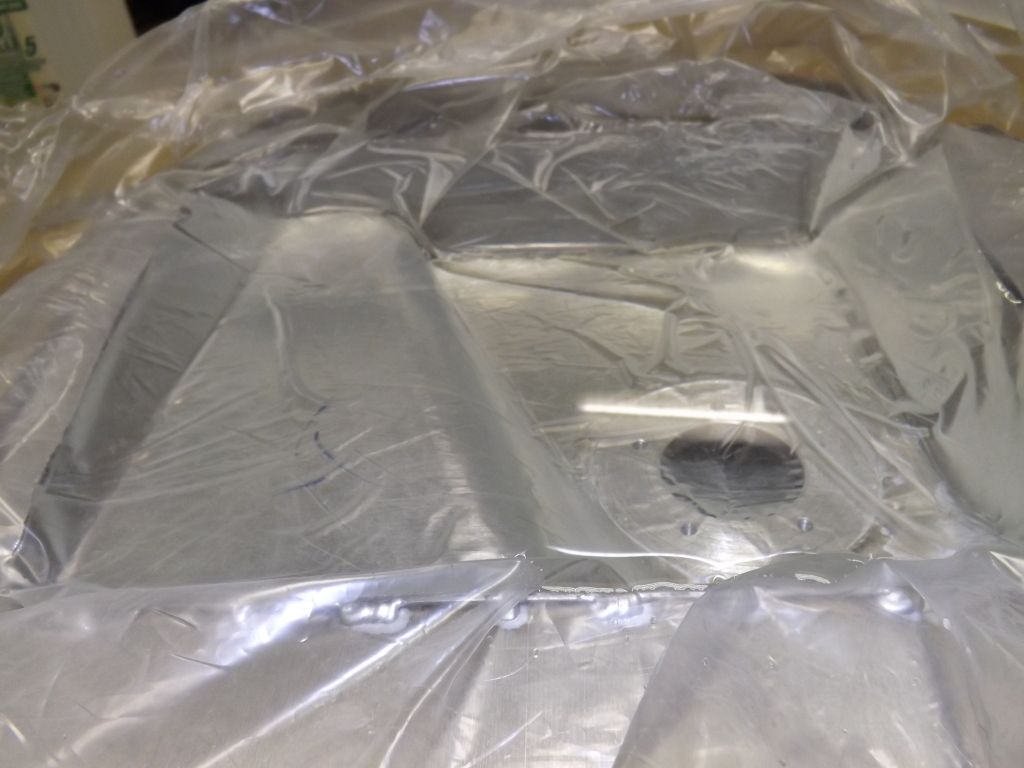

the base's levelled covered with a poly film and filled with water to find out the extension capacity

just like i presumed its about 4l not bad! i expect the upper pert capacity is gunna be like 15l so 15+4 is just wat i need

http://i1175.photobucket.com/albums/...r/DSCF5062.jpg

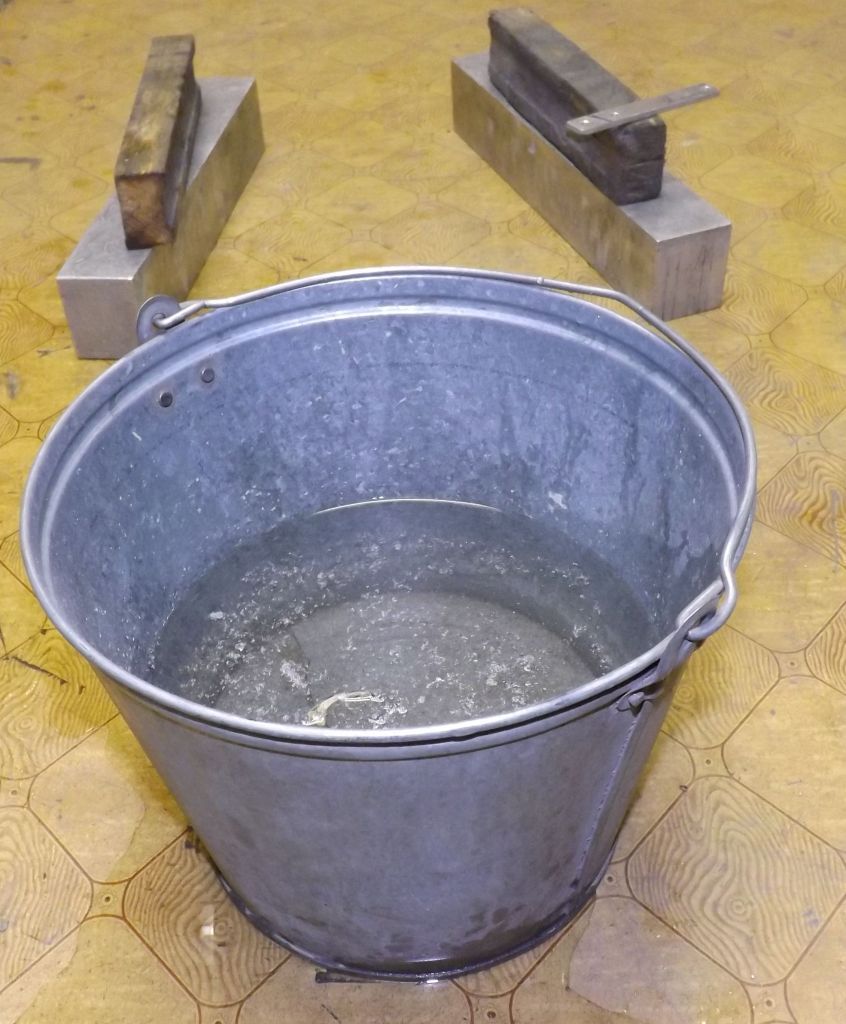

lol 4l in 10l bucket cept spilled water

http://i1175.photobucket.com/albums/...r/DSCF5064.jpg

plunger rod's reshaped

http://i1175.photobucket.com/albums/...r/DSCF5082.jpg

tank's profile revised

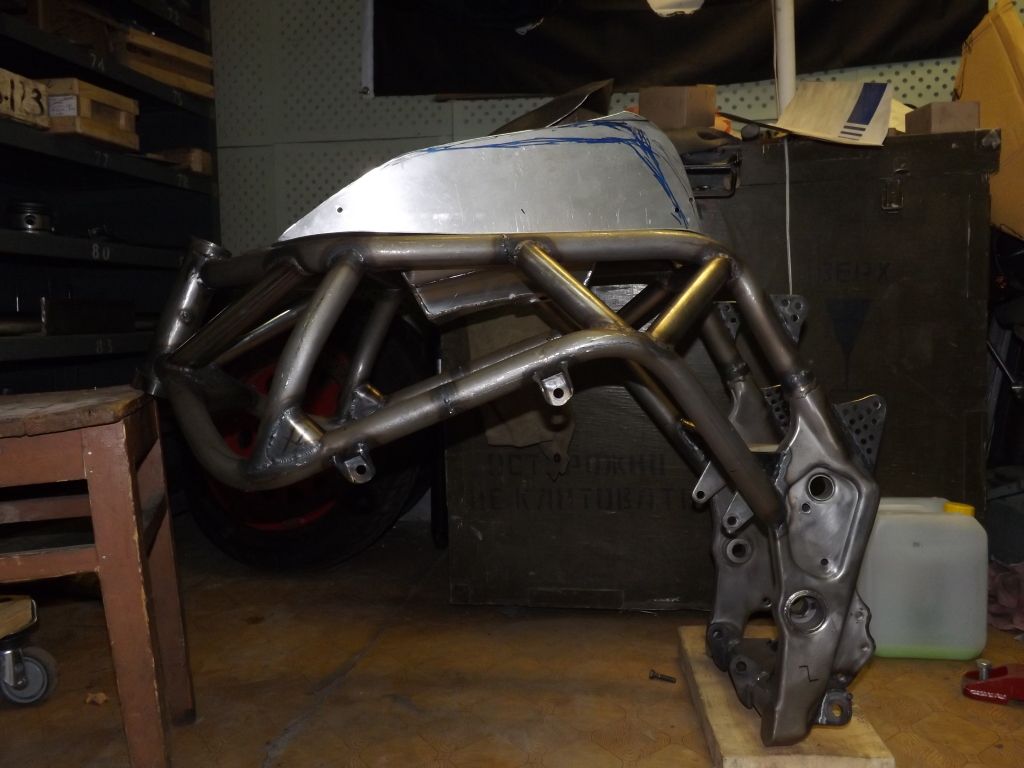

previously

http://i1175.photobucket.com/albums/...r/DSCF5078.jpg

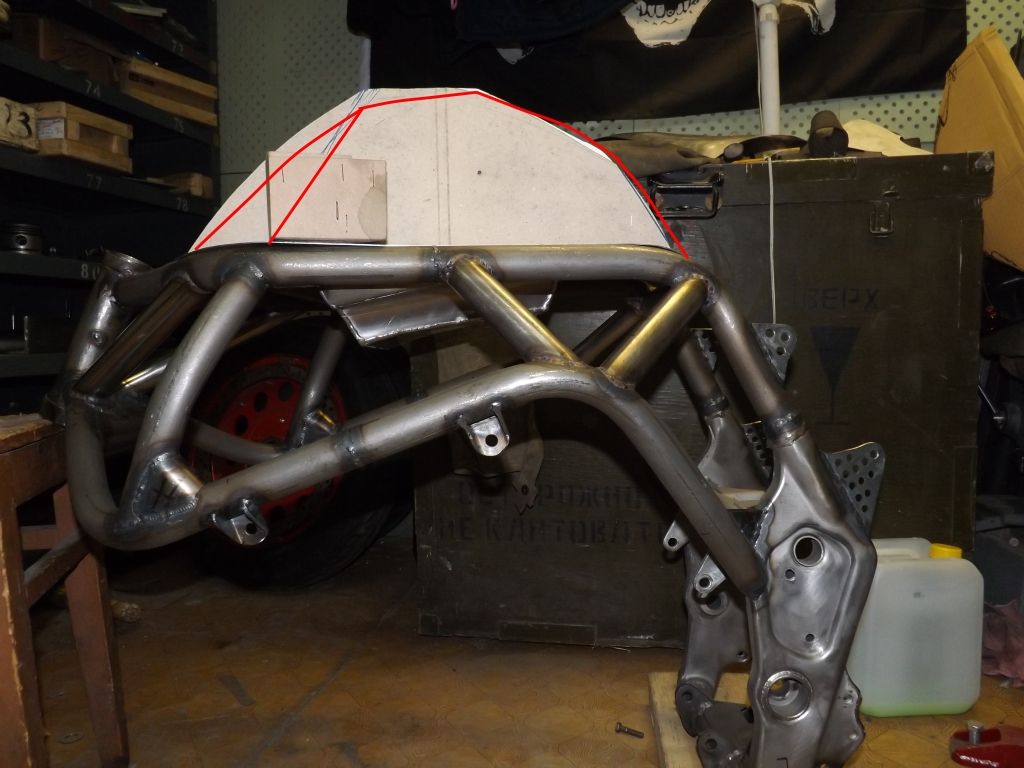

now... sorta

http://i1175.photobucket.com/albums/...DSCF5077_1.jpg

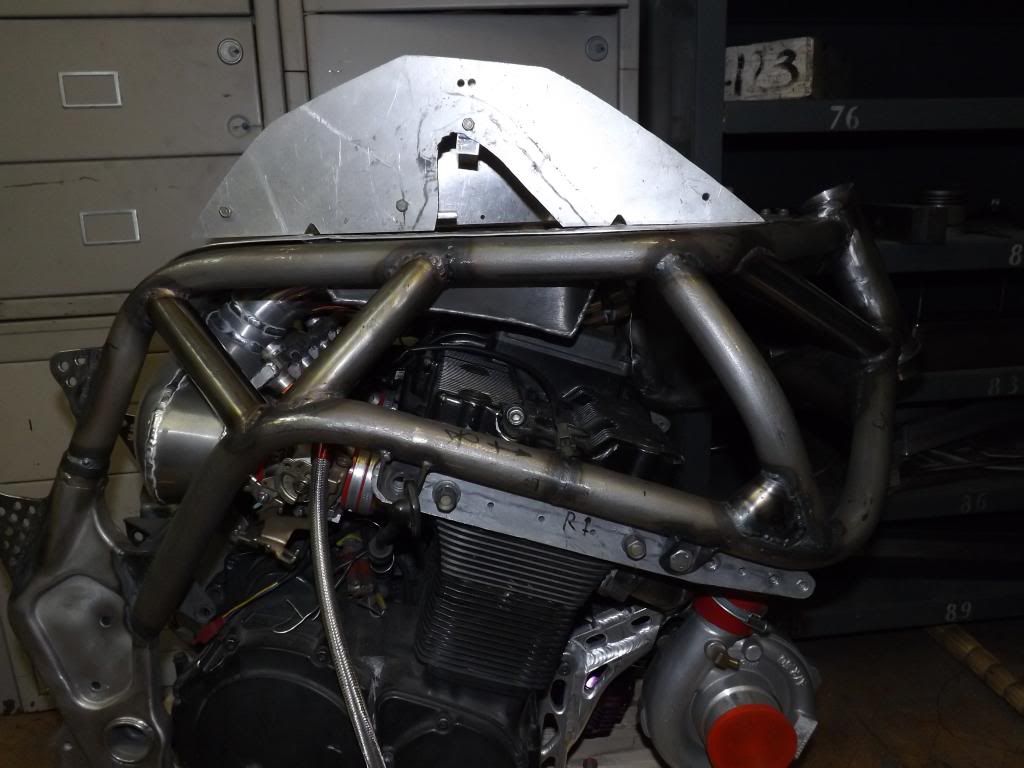

after all lol

http://i1175.photobucket.com/albums/...r/DSCF5083.jpg

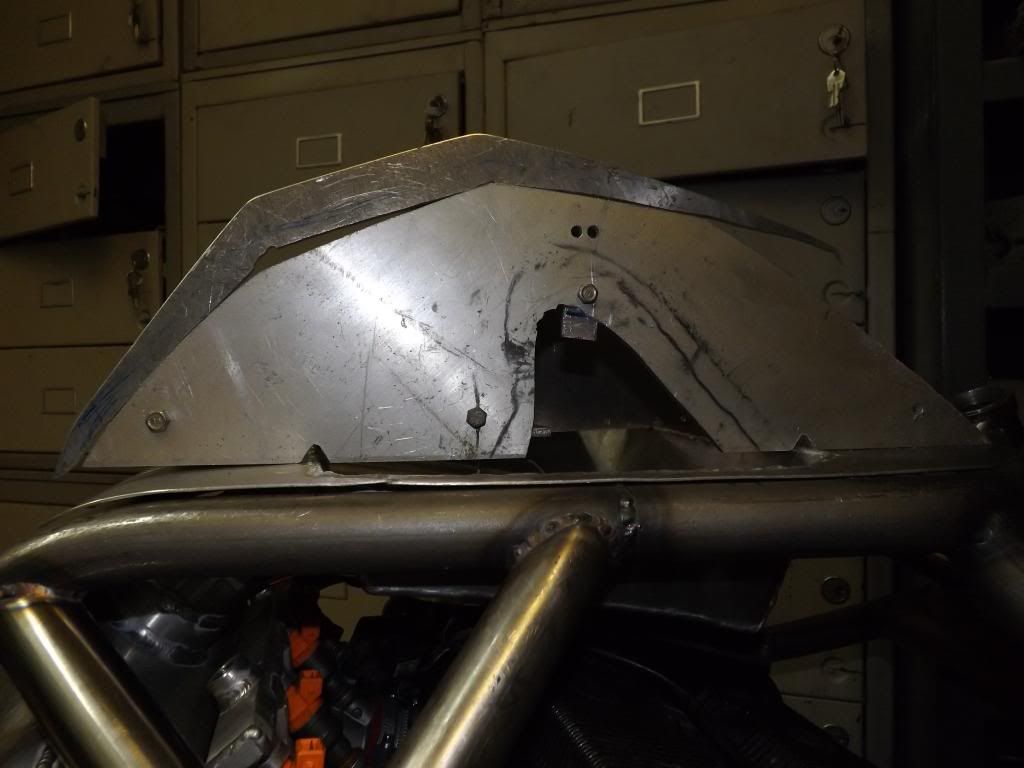

was lowered for about 30mm

http://i1175.photobucket.com/albums/...r/DSCF5087.jpg

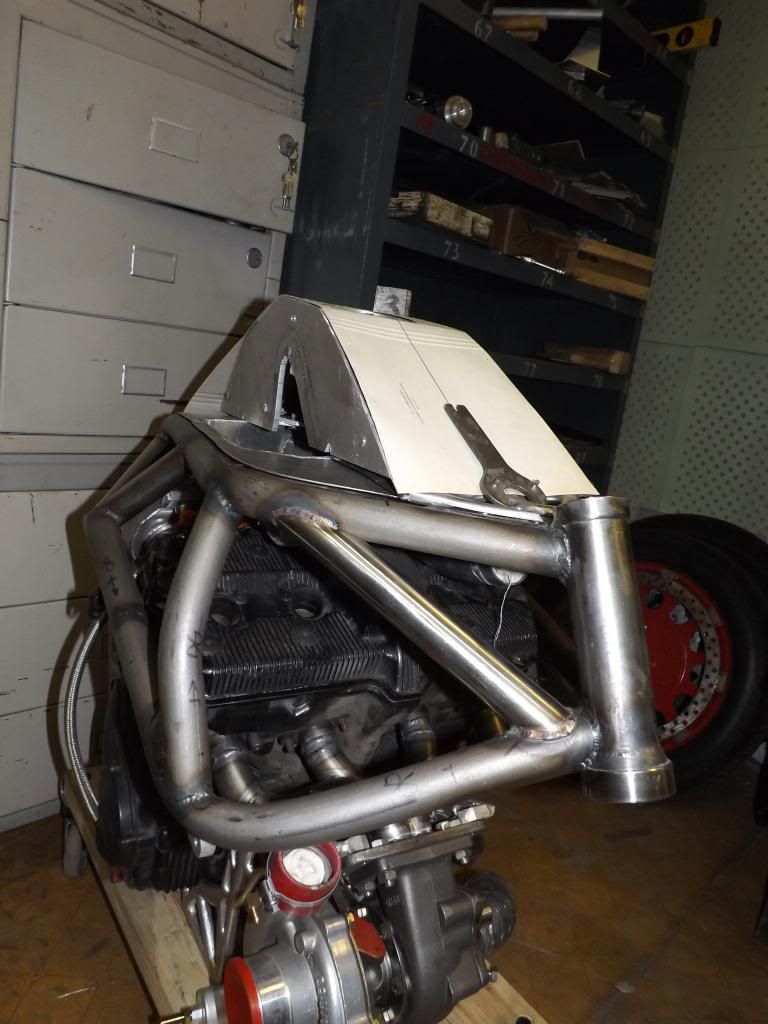

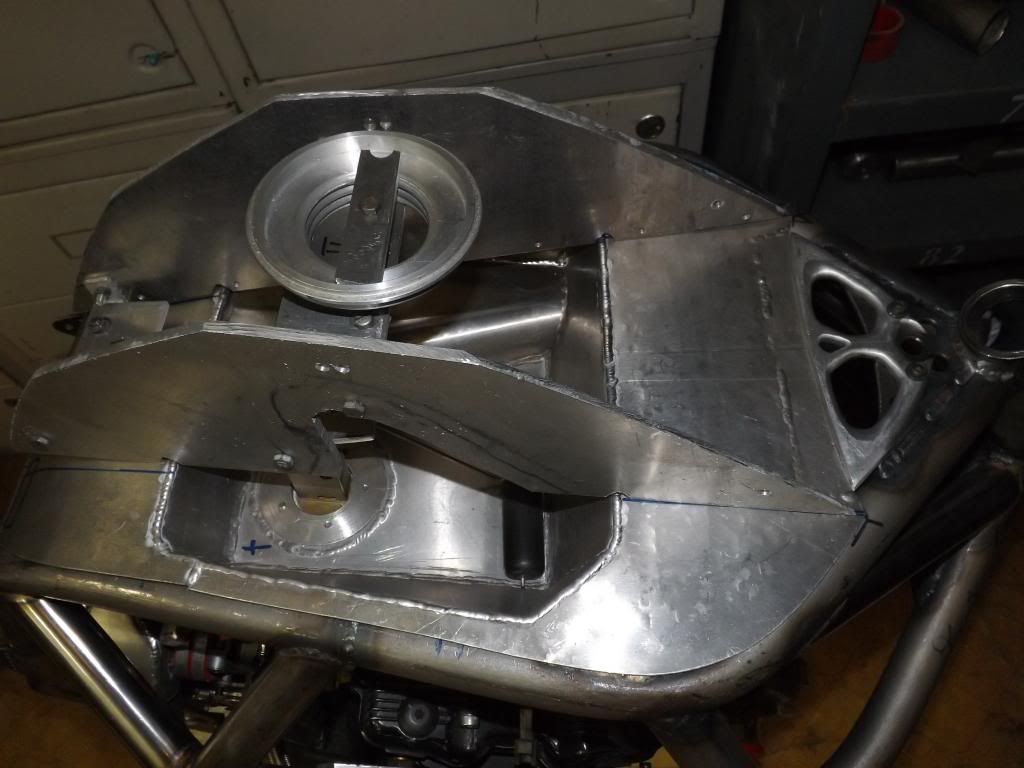

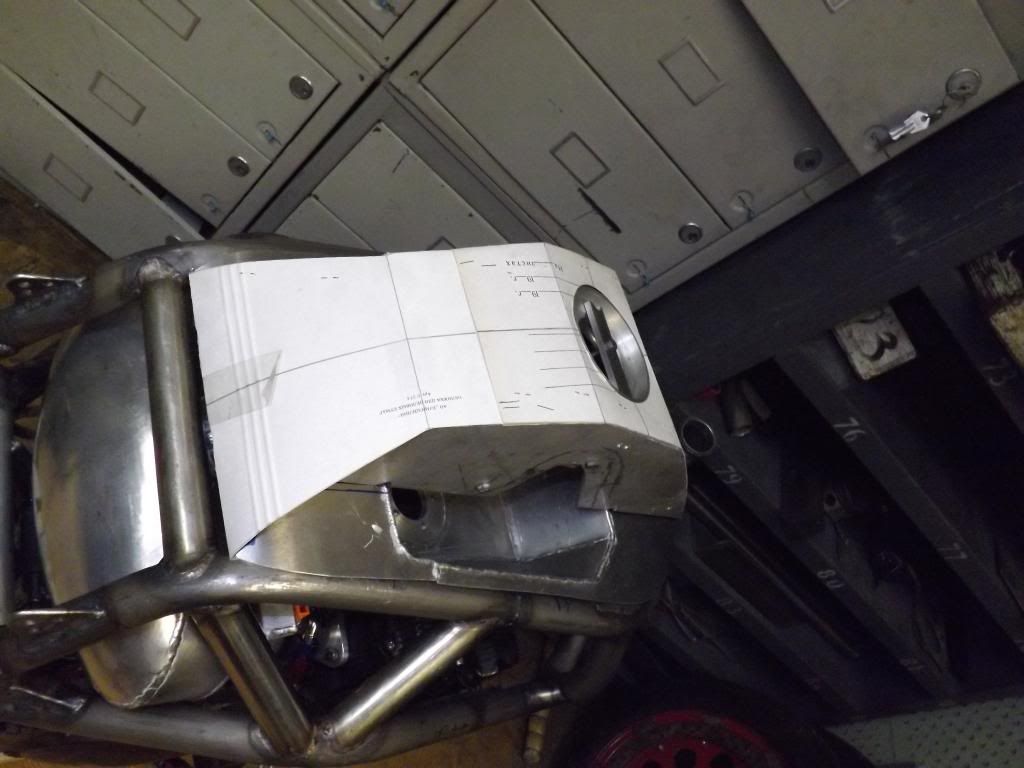

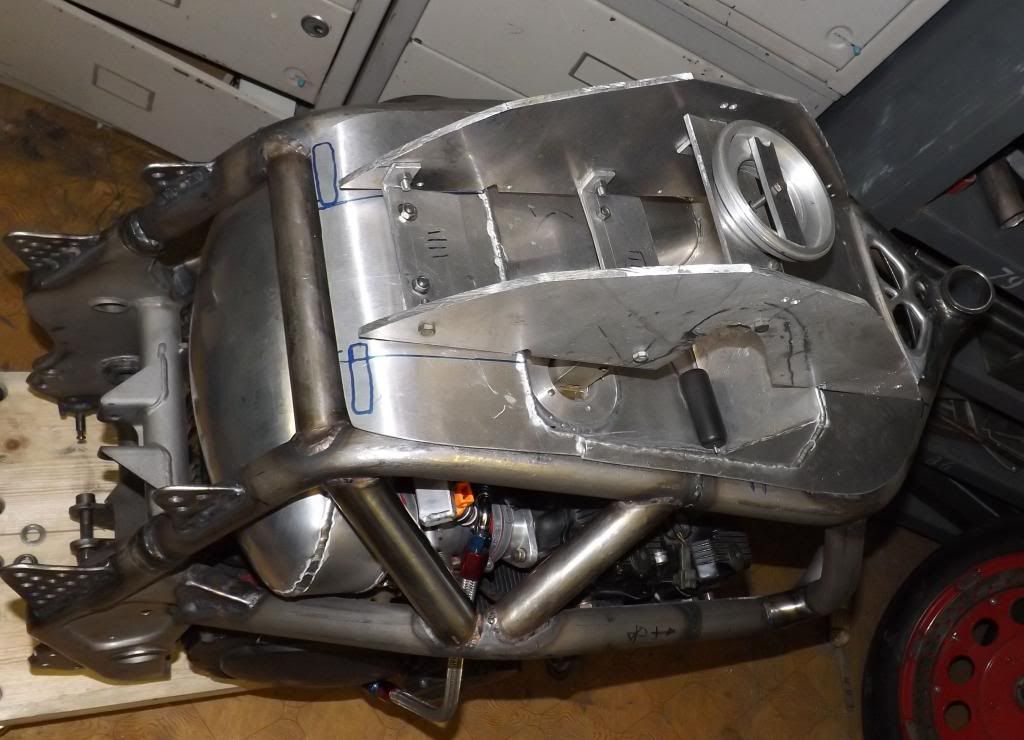

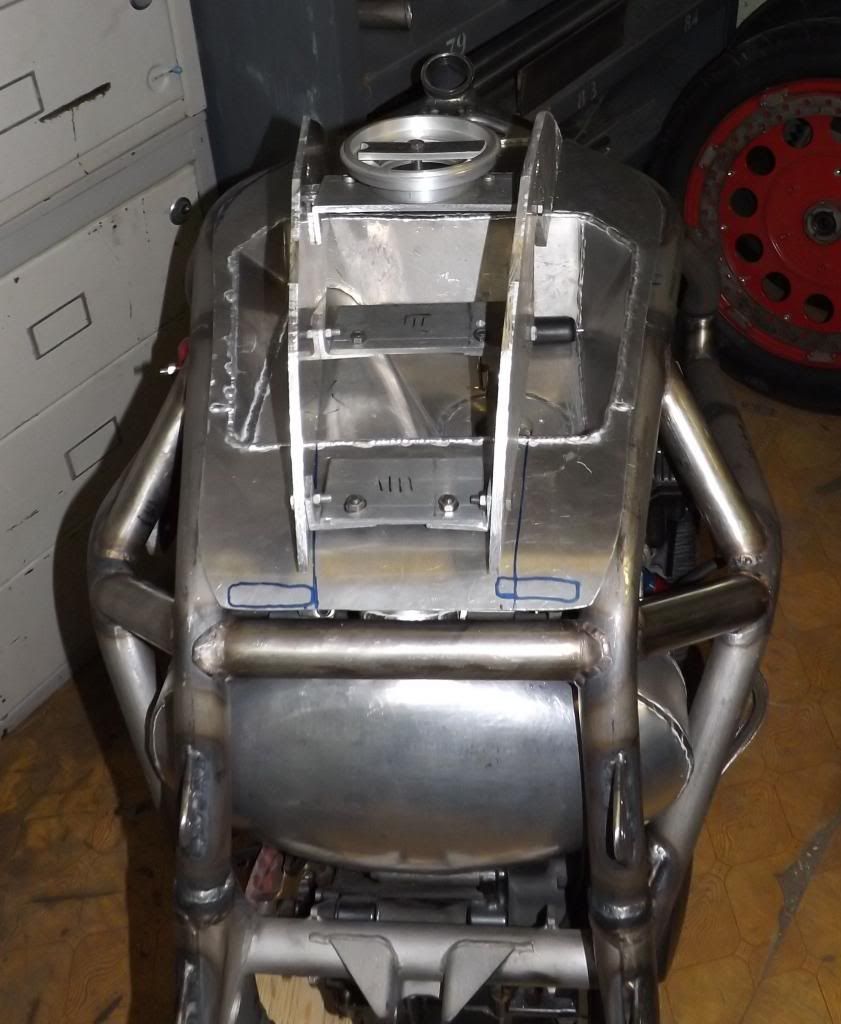

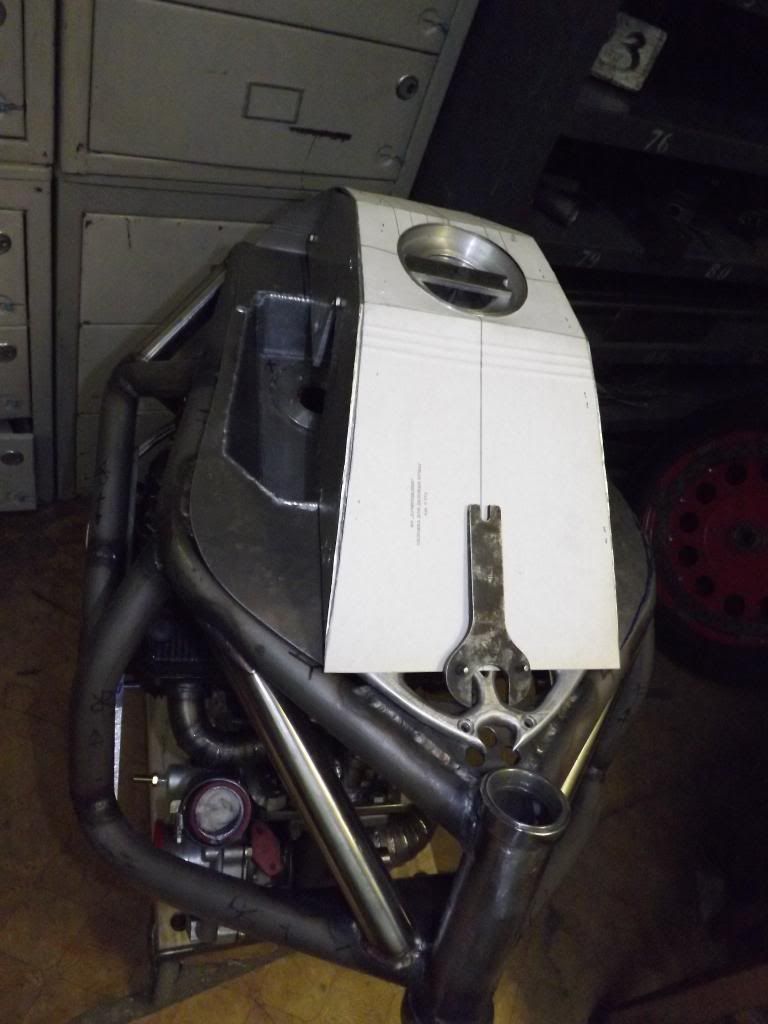

pretty much satisfied with the shape now

http://i1175.photobucket.com/albums/...r/DSCF5084.jpg

http://i1175.photobucket.com/albums/...r/DSCF5085.jpg

http://i1175.photobucket.com/albums/...r/DSCF5086.jpg

http://i1175.photobucket.com/albums/...r/DSCF5088.jpg

http://i1175.photobucket.com/albums/...r/DSCF5089.jpg

http://i1175.photobucket.com/albums/...r/DSCF5091.jpg

reckon it'll go faster now when design probs r sorted out

Yes, yes and yes. Tackling absolutely everything. Love it Surt.

Looks mental, i like it!

Absa-fucking-lutely amazing work there bloke.

thanks heaps mates enjoying the process lol
while custom bungs for fuel feed, return and ventilation are in work lets switch to the sawn oil cooler

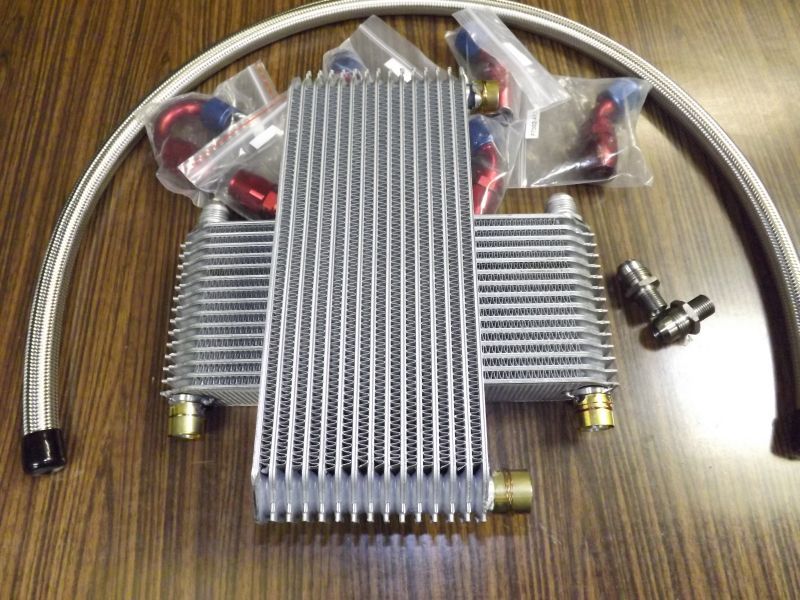

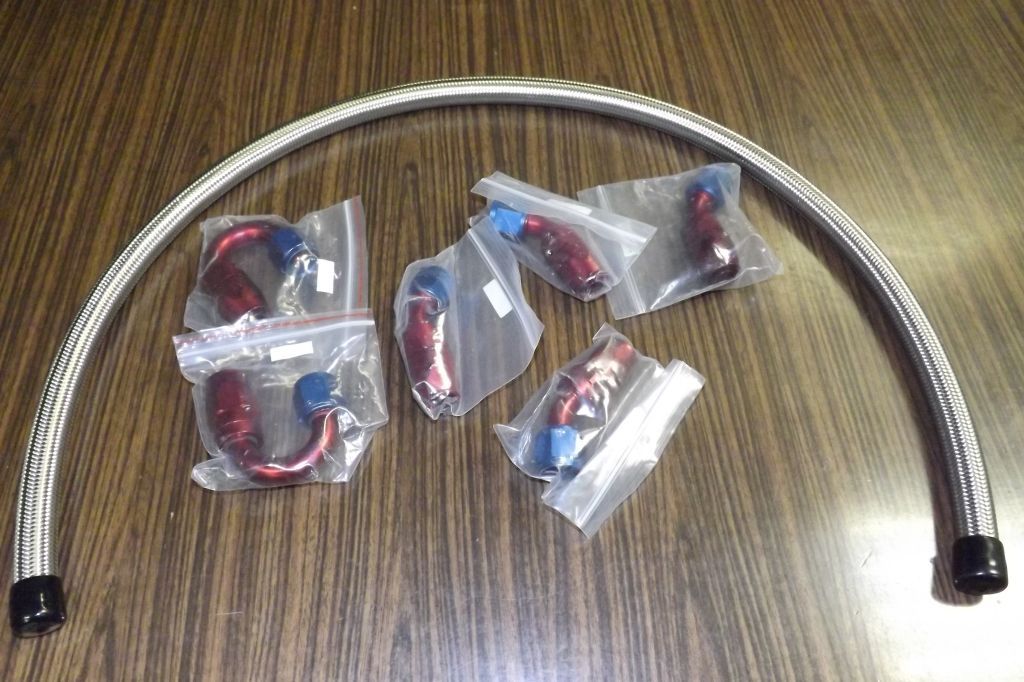

an10 fittings and hose were bought about a month a go

http://i1175.photobucket.com/albums/...r/DSCF5093.jpg

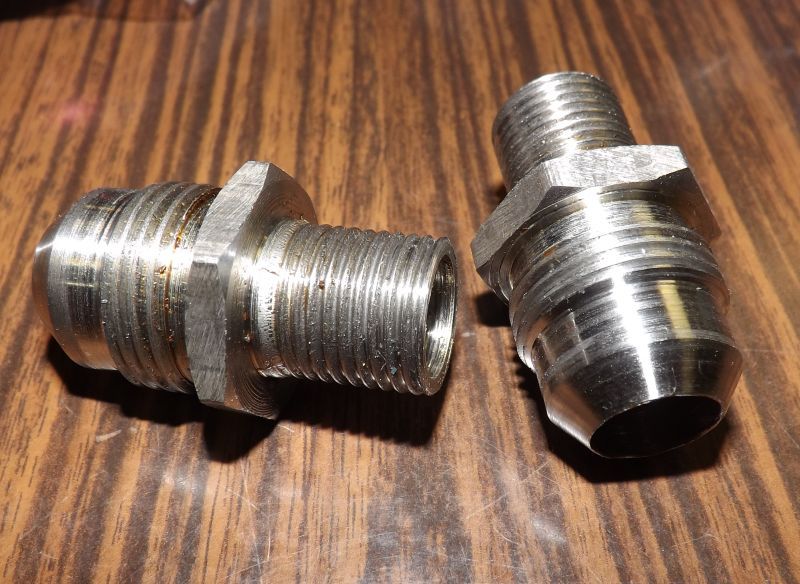

an10 to m16x1.5 fittings replacing oil cooler banjos were made from stainless

http://i1175.photobucket.com/albums/...r/DSCF5094.jpg

oil cooler halves r tidied up and bungs r tacked

http://i1175.photobucket.com/albums/...r/DSCF5095.jpg

http://i1175.photobucket.com/albums/...r/DSCF5098.jpg

u gotta do some weird shit sometimes to fulfil ur task, no ones gunna do it for ya!
walking the water and raising the dead is dirt cheap if ur daddy is a god but try making some fucking thongs for walking the water, nah, not messiah's business, no hocus pocus no fun lol

http://i1175.photobucket.com/albums/...r/DSCF5101.jpg

http://i1175.photobucket.com/albums/...r/DSCF5102.jpg

http://i1175.photobucket.com/albums/...r/DSCF5104.jpg

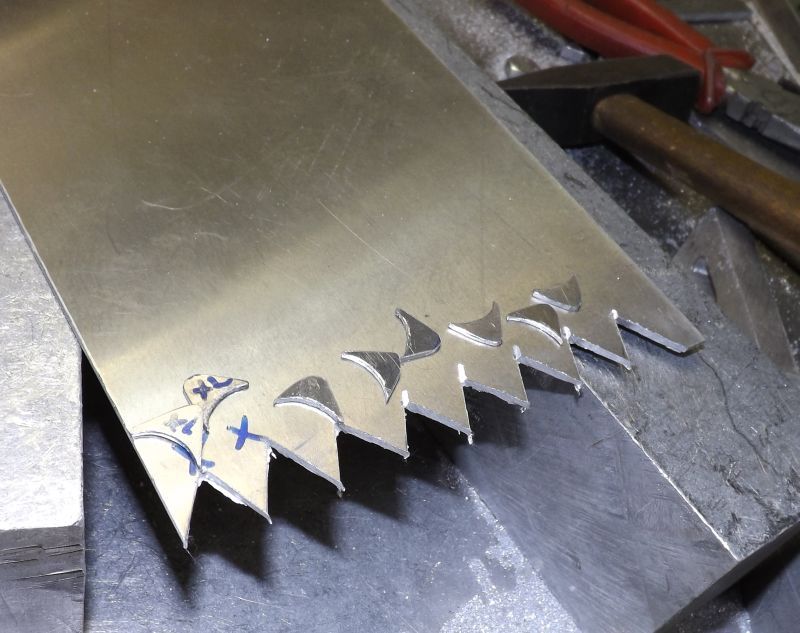

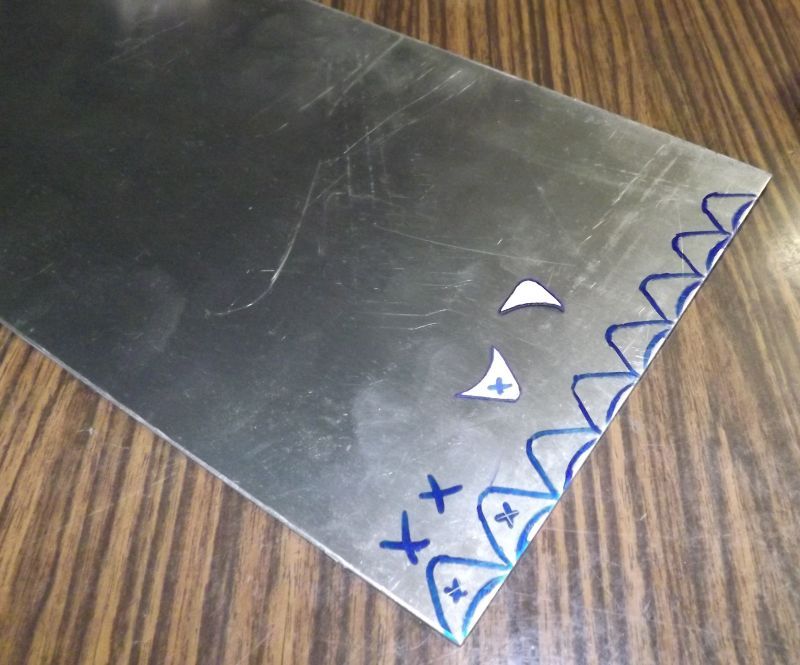

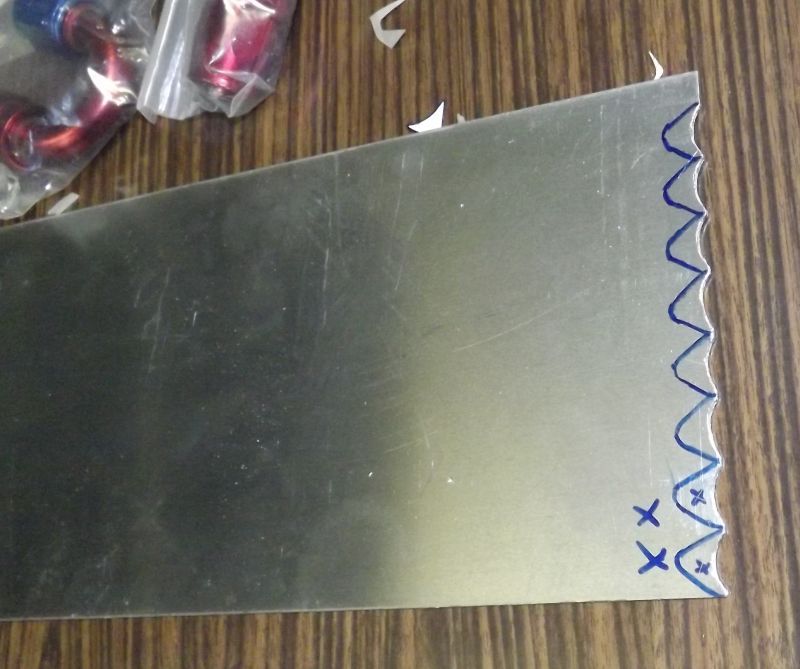

these r patches to cover the holes aside from the bungs
took an hour to make em tho

http://www.youtube.com/watch?v=EA8u4pgfvFE

bloody amazing build mate...ur a magician

how do go with the s/s onto ally mate ?
love your as norm old boy :-)

thats fucking awesome surt

You are a mad fucking nutter Surt.

In a good way.

Your head is in a very special place, bloody Hell this is ....................probaly one of the best shed built projects I have witnessed very few bolt on bits on this bitch!

Top Shelf.

Quote:

---

Originally Posted by ozzy1100

how do go with the s/s onto ally mate ?
love your as norm old boy :-)

---

narrr the weld on bungs r ally and the fittings replaced replaced bango bolts screwed in crank case r stainless
we can weld titanium and steel together though
