Hades

you are an artist mate. just don't go cutting off your bloody ear.

Surt keep up the superhuman work! lookin ace!

it won't be my ear but someone elses ears bahaha i aint one fuckin gogh but one flamin Surt lol thanks heaps mates nothing superhumans tho, cept the wish to finish all of my bloody projects and skip down under

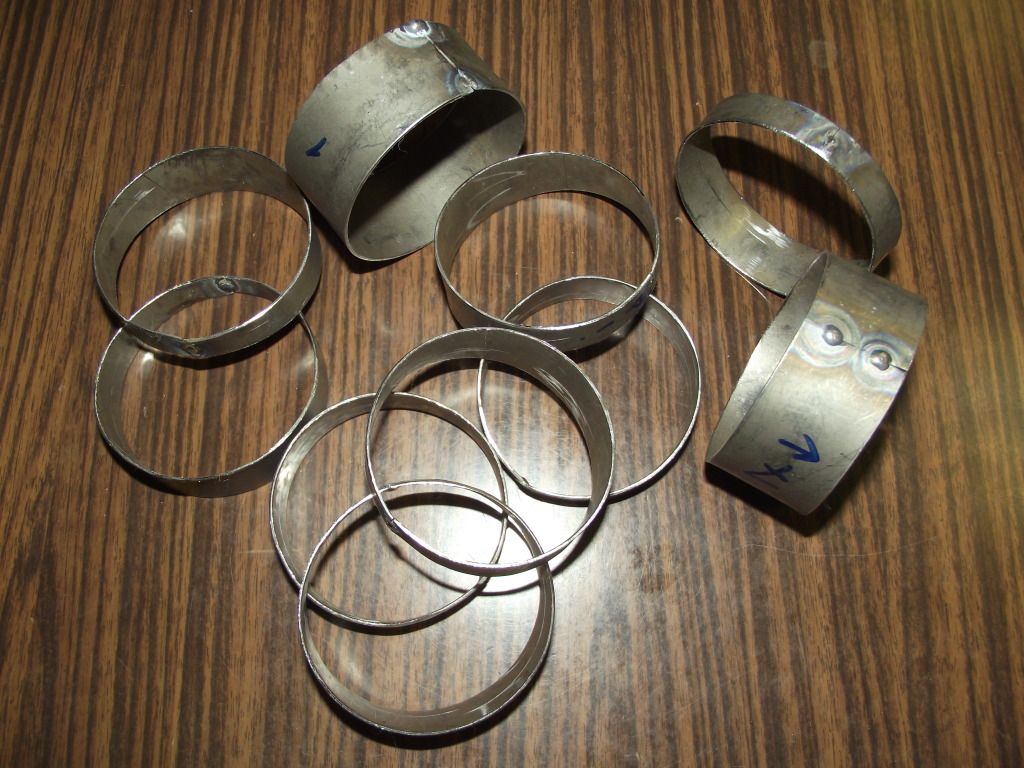

master of the rings pt.III

http://i1175.photobucket.com/albums/...r/DSCF4874.jpg

comparing a stock oil cooler to the mockup of 25 row cooler, much the same just a tas higher and thicker

http://i1175.photobucket.com/albums/...DSCF4871cr.jpg

therefore i decided to use 2 15 row oil collers

http://i1175.photobucket.com/albums/...r/DSCF4872.jpg

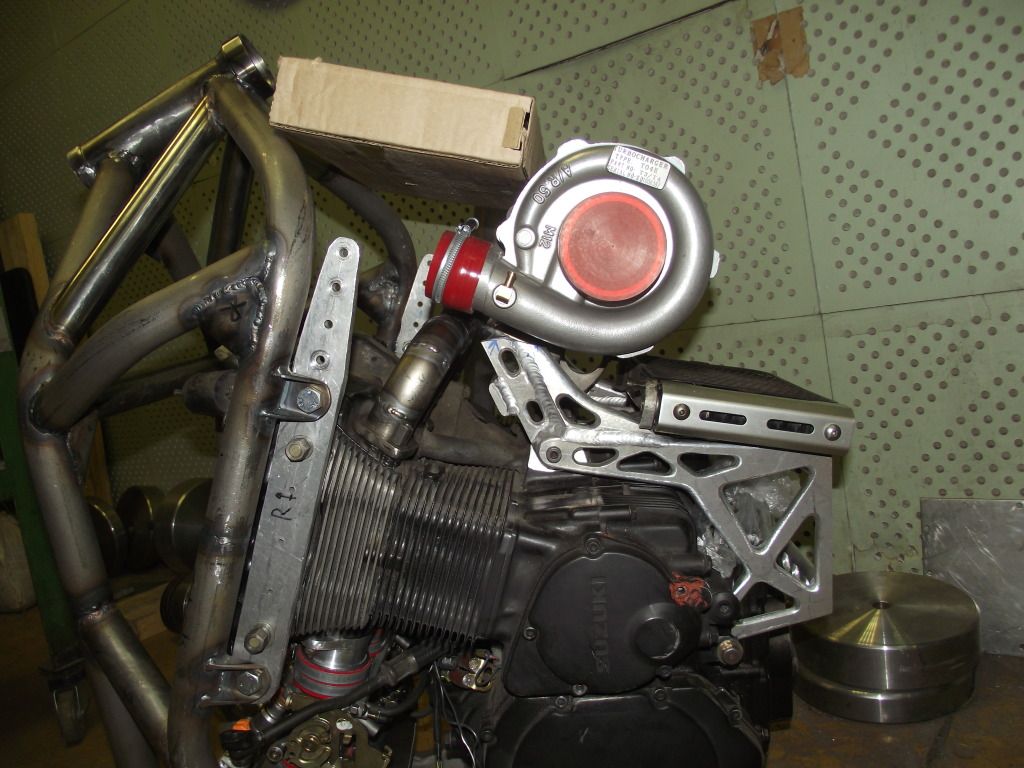

well at least a lower duct aint gunna be just for show

http://i1175.photobucket.com/albums/...r/DSCF4873.jpg

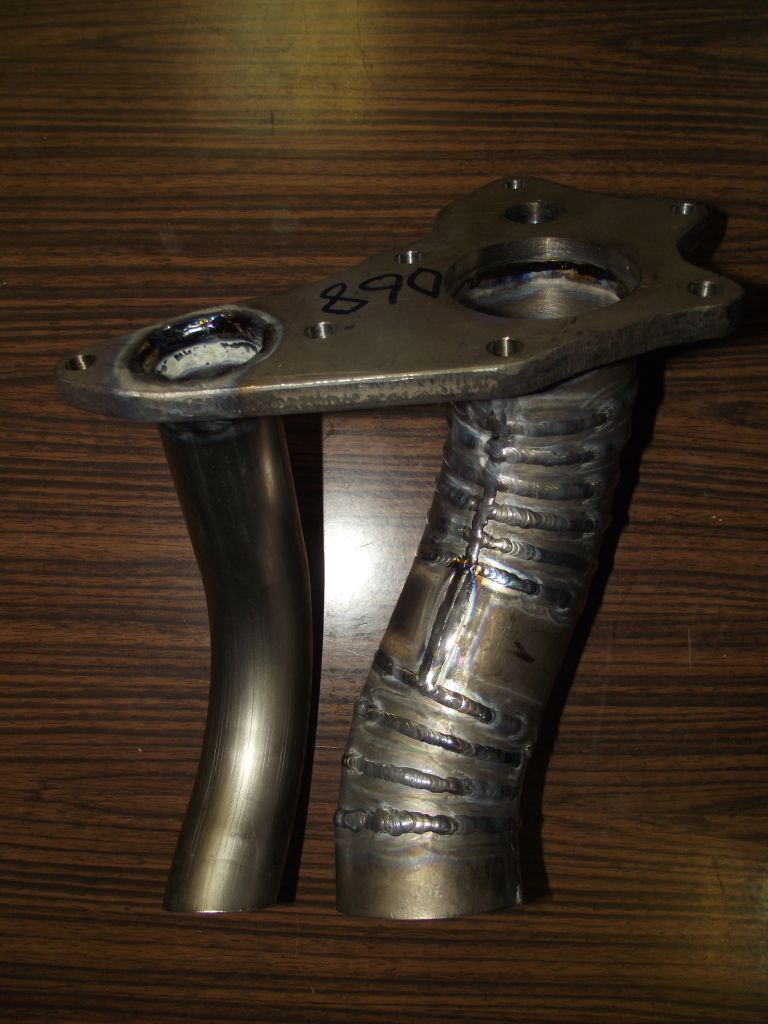

the zorsts finished

http://i1175.photobucket.com/albums/...r/DSCF4876.jpg

welded around both inside and outside
...and weighs in 890g

http://i1175.photobucket.com/albums/...r/DSCF4877.jpg

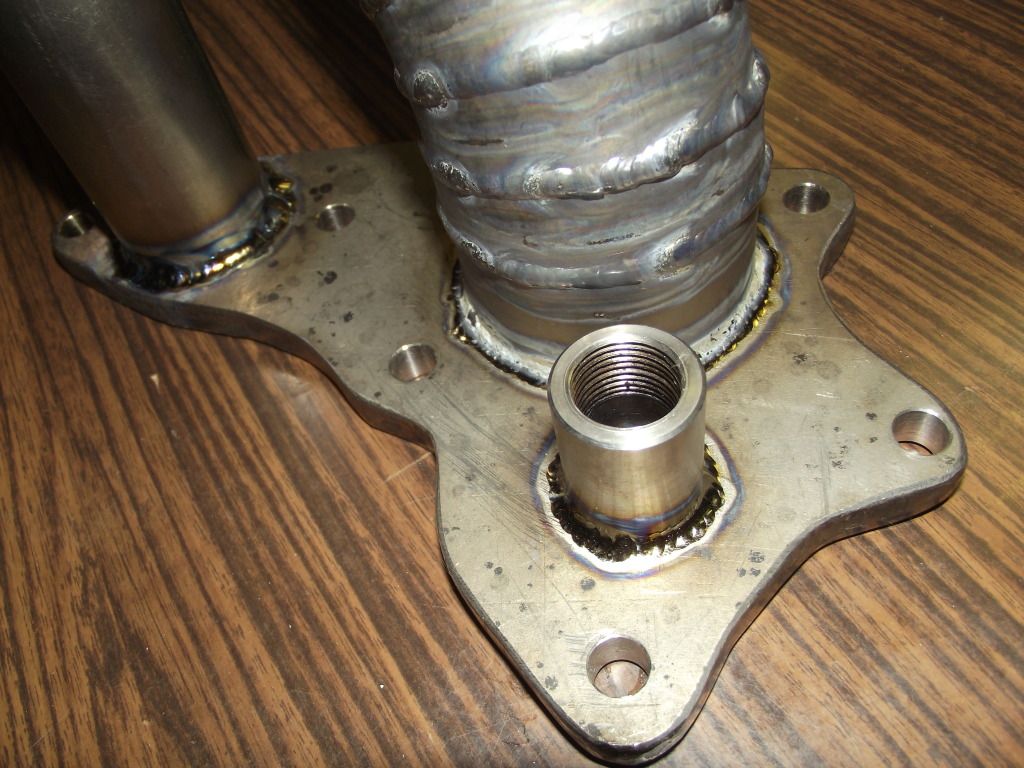

the hole for internal wg is used for afr sensor

http://i1175.photobucket.com/albums/...r/DSCF4878.jpg

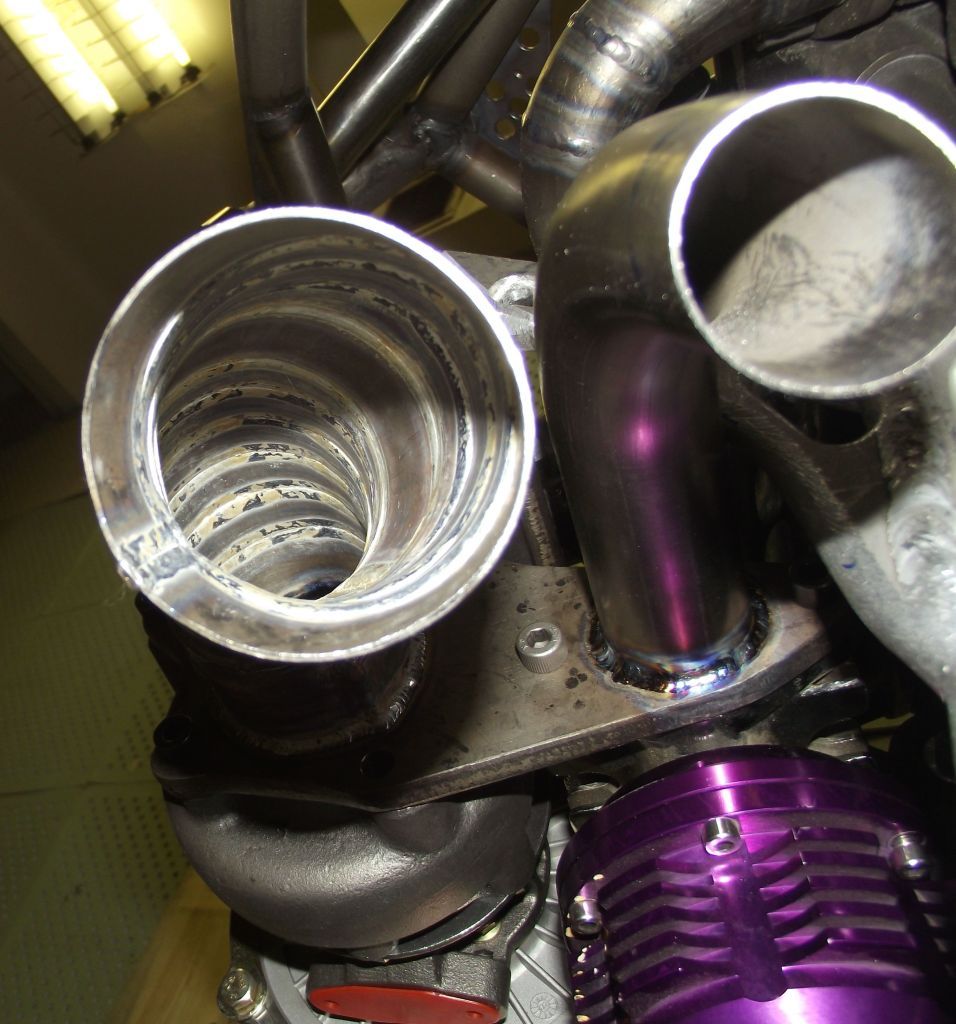

wanker proof, bent so that some wanker wouldn't poke into the turbine with a stick lol

http://i1175.photobucket.com/albums/...r/DSCF4882.jpg

http://i1175.photobucket.com/albums/...r/DSCF4879.jpg

http://i1175.photobucket.com/albums/...r/DSCF4881.jpg

http://i1175.photobucket.com/albums/...r/DSCF4883.jpg

Yes Yes and yes:D

hey man wat steel are you using for zort from turbo??

looks like ti

right guess banditrod, yip its titanium

Looking good Surt. Well done.

I showed a couple of your pics, and Pete's T7-13 frame, to someone who said
I shouldn't have welded a broken lug back onto a frame. That ended that conversation.

Im watching this thread with interest.

thanks heaps Tony, have no idea what lug ur talkin about

I had something very minor break on one of mg bikes.
Guys who I ride with didn't like the idea of any "repairs"
to a standard frame! They were stunned by what you
were doing.... :cool:

well if its a steel not heat treated frame (there are ones!), welding is no prob, if an ally frame, ideally it should be annealed after welding. if its an ally heat treated frame, i wouldn't bet one penny on welding, and wouldn't ride that bike at any rate

lets go tanking!

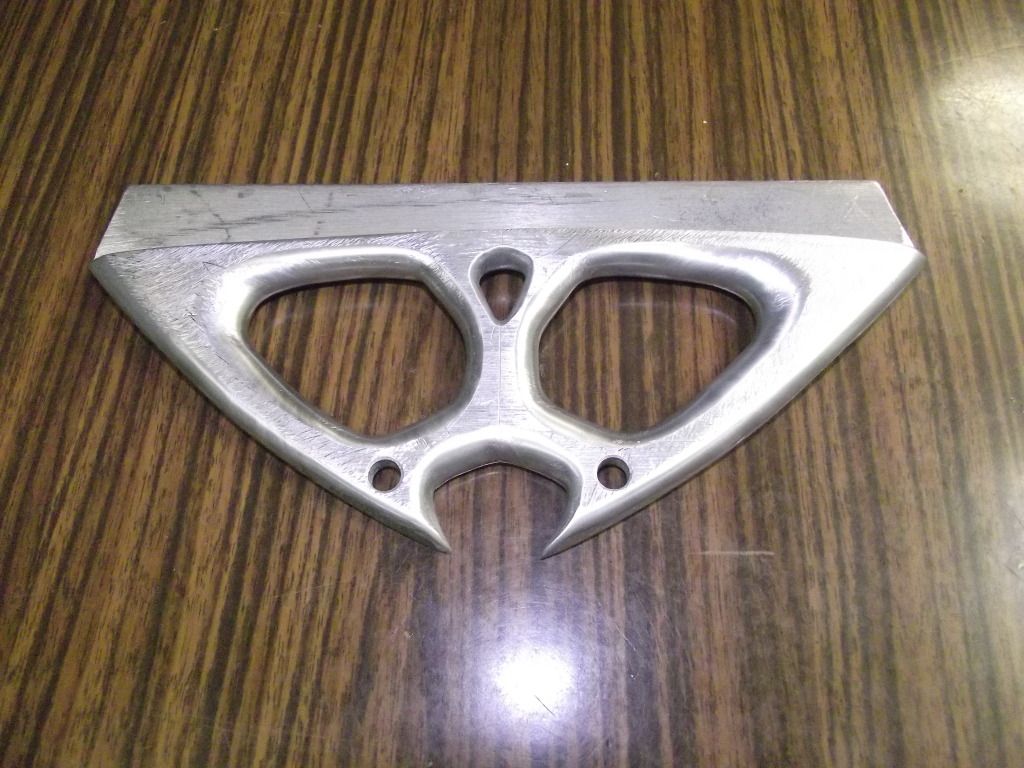

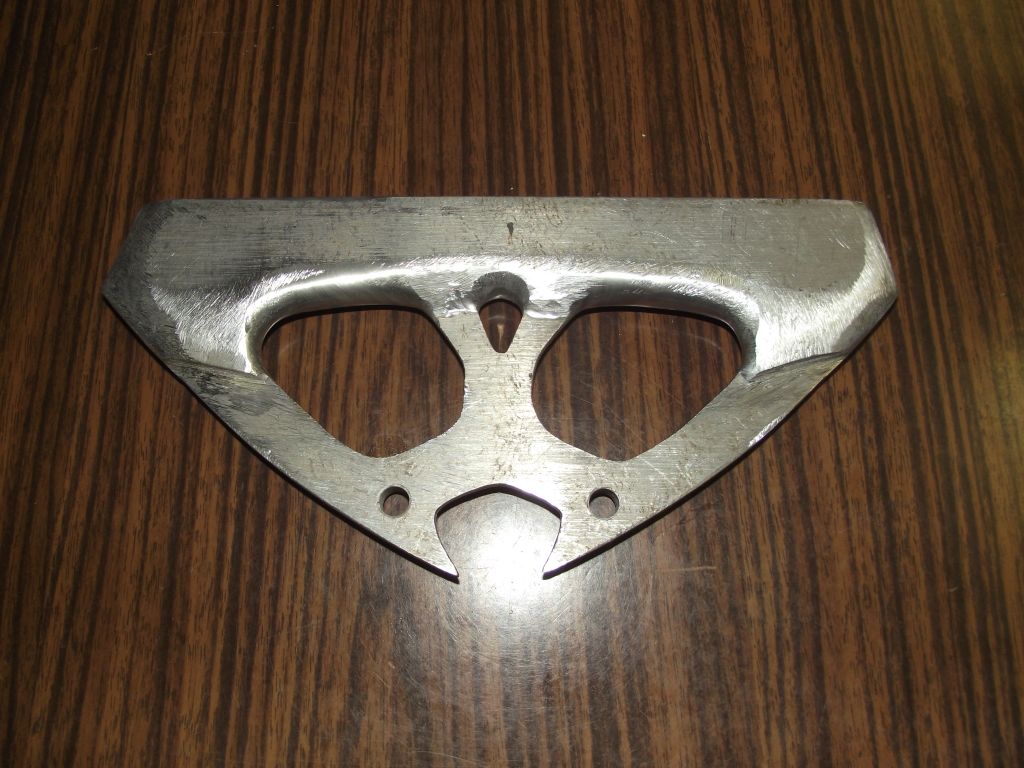

front mount

http://i1175.photobucket.com/albums/...r/DSCF4887.jpg

http://i1175.photobucket.com/albums/...r/DSCF4888.jpg

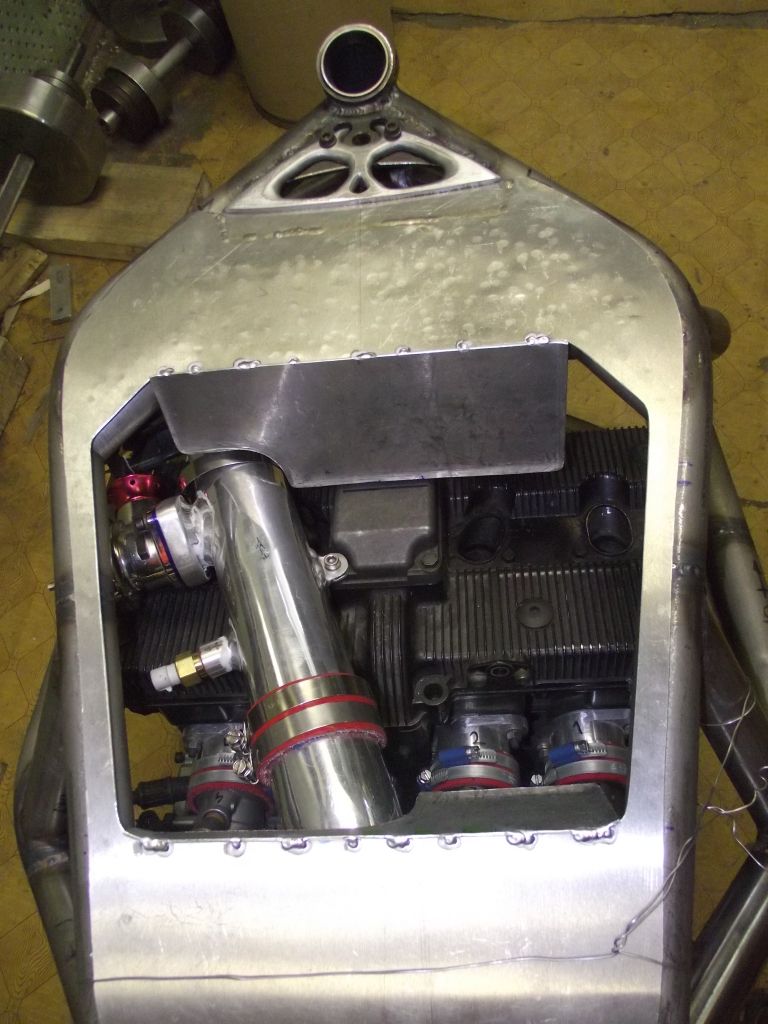

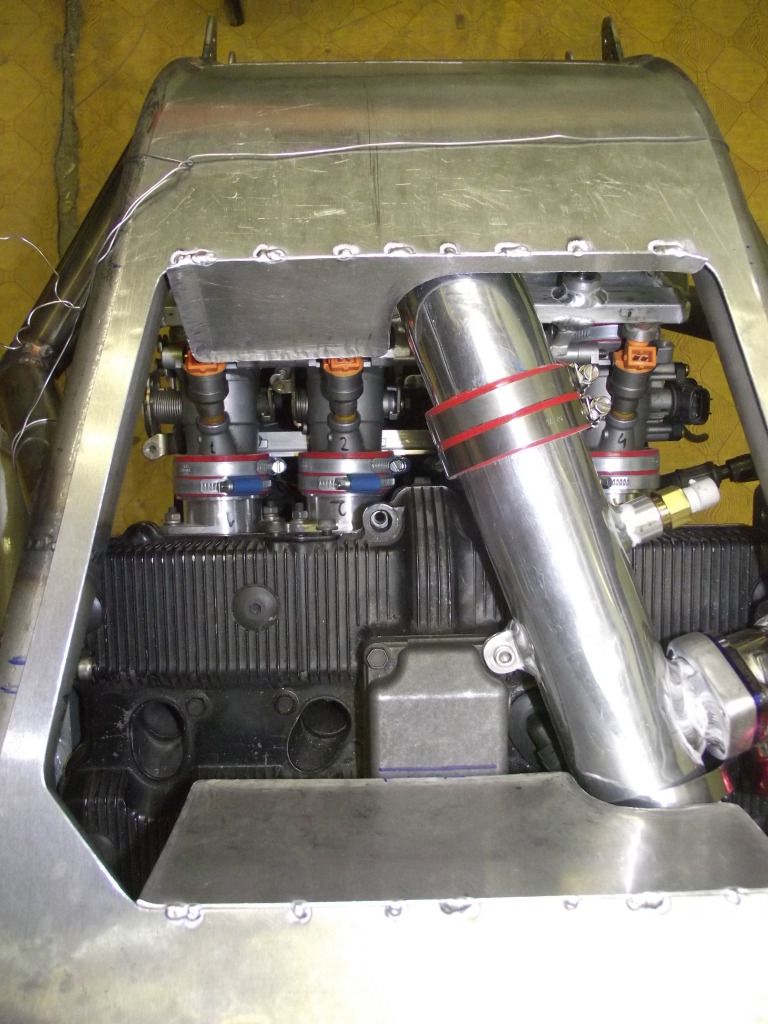

the base with an additional volume underneath

http://i1175.photobucket.com/albums/...r/DSCF4915.jpg

http://i1175.photobucket.com/albums/...r/DSCF4916.jpg

so we all agree ,since spondon dont make frames anymore ,could we all agree surt is the man for custom frames ,lol

fuck thats cool
