Where's you get the Reg rec and the plugs?
Printable View
Where's you get the Reg rec and the plugs?
Where'd you get the Mosfet reg/rec and plugs??
Roadstercycle.comQuote:
Originally Posted by GammaBoy
http://roadstercycle.com/index.htm
Jack is a top bloke & is happy to spend time to answer any questions you may have.
Going to be busy with work for the next 7 days so wont get a chance to do any thing. Did manage to make up some card board templates so you guys can see the exact shape they will be. I have a jigsaw, can a jigsaw cut 10mm thick aluminium ? If so maybe I could cut these brackets out of 10mm & then double them up to make 20mm .
Edit- Ok, so I searched online & yeah you can cut 10mm thick aluminium with a jigsaw !
So I'm going to try it, probably have to wait a week or 2.
http://i1101.photobucket.com/albums/...ckets_0001.jpg
http://i1101.photobucket.com/albums/...ckets_0002.jpg
Lithium battery mounted.
http://i1101.photobucket.com/albums/...0/DSCF5411.jpg
My stock reg/rec shat itself. Cost me a new battery blowing up a balloon to figure out what the problem was...
http://img.photobucket.com/albums/v3...ps750c23ce.jpg
Yep, seems to happen a bit to the VTR's.Quote:
Originally Posted by Cruisecontrol
That bracket looks like a much better idea mate. You'll be glad you went to the extra effort.
Cheers.Quote:
Originally Posted by aaa123
Dunno why my first poist didn't show, and then showed up after the second post...
Yeah, the more I look at those L angle brackets the worst they look ! :oQuote:
Originally Posted by xa-mont
But that's what I like about these forums, some times it takes a few people to say "hay, re-think those brackets" & then you can come up with a new plan. I don't mind constructive criticism.
Those brackets have helped me to get the subframe attached & lined up, so they have helped me out.
Busy at work, so no time to do anything. Thought I would post up some pic's of how it was when I got it.
Lots of small damage, but the main stuff was ok (wheels,forks, electric's, speedo, swingarm).
http://i1101.photobucket.com/albums/...11-28_0072.jpg
http://i1101.photobucket.com/albums/...12-02_0076.jpg
http://i1101.photobucket.com/albums/...12-16_0078.jpg
http://i1101.photobucket.com/albums/...13-29_0086.jpg
http://i1101.photobucket.com/albums/...39-53_0073.jpg
http://i1101.photobucket.com/albums/...14-22_0092.jpg
http://i1101.photobucket.com/albums/...14-57_0096.jpg
Had to remove the swingarm just to replace the footpeg bracket, :mad:.
http://i1101.photobucket.com/albums/...16-05_0104.jpg
http://i1101.photobucket.com/albums/...16-14_0105.jpg
Then started pulling bits apart
http://i1101.photobucket.com/albums/...52-43_0074.jpg
http://i1101.photobucket.com/albums/...55-27_0081.jpg
http://i1101.photobucket.com/albums/...56-49_0086.jpg
http://i1101.photobucket.com/albums/...10-40_0076.jpg
Built a frame to help me work.
http://i1101.photobucket.com/albums/...36-45_0006.jpg
http://i1101.photobucket.com/albums/...36-35_0005.jpg
http://i1101.photobucket.com/albums/...36-18_0004.jpg
Lot's of dents in the tank,
http://i1101.photobucket.com/albums/...24-49_0116.jpg
http://i1101.photobucket.com/albums/...24-59_0117.jpg
http://i1101.photobucket.com/albums/...25-11_0118.jpg
http://i1101.photobucket.com/albums/...25-11_0118.jpg
http://i1101.photobucket.com/albums/...26-55_0125.jpg
looking better,
http://i1101.photobucket.com/albums/...51-59_0007.jpg
http://i1101.photobucket.com/albums/...52-07_0008.jpg
I'm happy, all done with spray cans in winter.
http://i1101.photobucket.com/albums/...40-39_0011.jpg
Had some marks on the frame, so thought I would paint it,
Primer,
http://i1101.photobucket.com/albums/...49-38_0067.jpg
http://i1101.photobucket.com/albums/...50-23_0071.jpg
Aluminium spray can with clear top coat,
http://i1101.photobucket.com/albums/...11-25_0086.jpg
Then misted the lower frame part to make it look like the cast lower frame,
http://i1101.photobucket.com/albums/...11-07_0084.jpg
Bar end's sanded & painted,
http://i1101.photobucket.com/albums/...53-29_0080.jpg
Front guard painted,
http://i1101.photobucket.com/albums/...40-27_0010.jpg
http://i1101.photobucket.com/albums/...41-17_0015.jpg
wow mate! that's some awesome work in what little space you have to work in! the progress is going well, keep the pic's coming.
Well done mate,good to see another VTR being built,
With the tail you'll find it is too long.I cut 50mm from mine looks heaps better.
Also if you can find another wrecked rear subframe,I would cut the btm rails
And tig it to the one you have ,looks better and stronger.
Here is a veiw of what I did.
http://ozfirestorm.proboards.com/thread/13656/cbr-tail-2
Thanks TillerRider, Yep I wish I had a garage !:eek: I will just keep doing the best I can in my little area.Quote:
Originally Posted by TillerRider
Hi erno, I went a different way, instead of cutting 50mm out of the subframe, I have moved the front/rear seat's & rear fairing forward 50mm so I didn't need to cut the subframe. And I am not using the rear fairing as stock, I have chopped about 170mm out of it, so my rear end should be around 220mm shorter than stock! ;)Quote:
Originally Posted by erno
I got some time to make up some new subframe brackets. :D

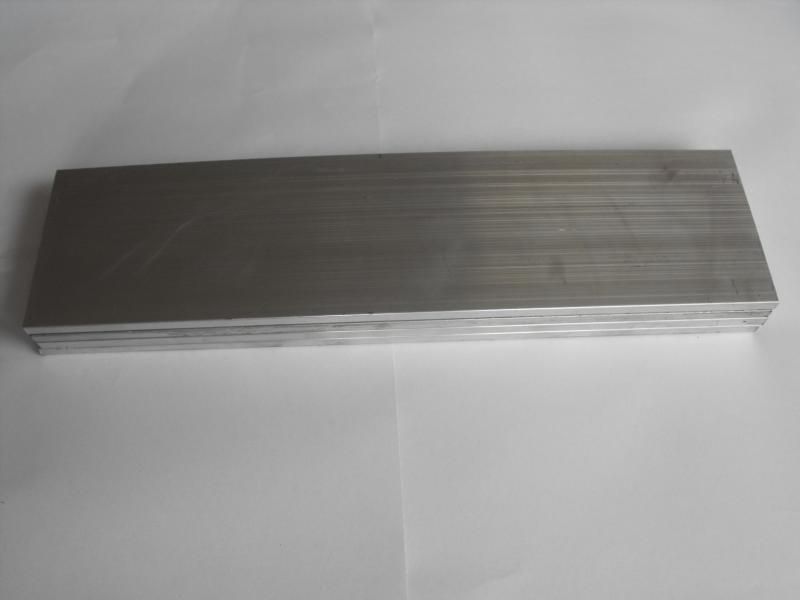

Went & got some aluminium flat bar,
http://i1101.photobucket.com/albums/...0/DSCF5019.jpg

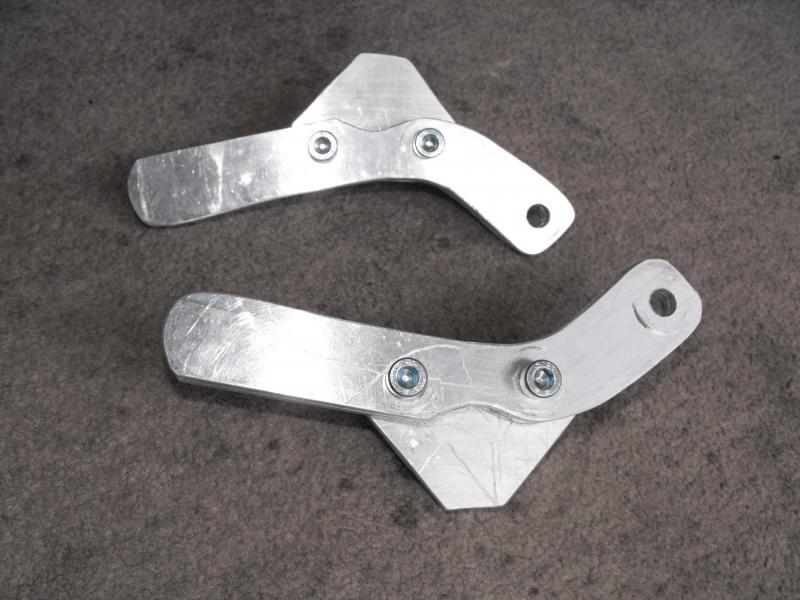

Traced my cardboard templates onto the flat bar & grabbed my jigsaw, ended up with these,
http://i1101.photobucket.com/albums/...0/DSCF5033.jpg

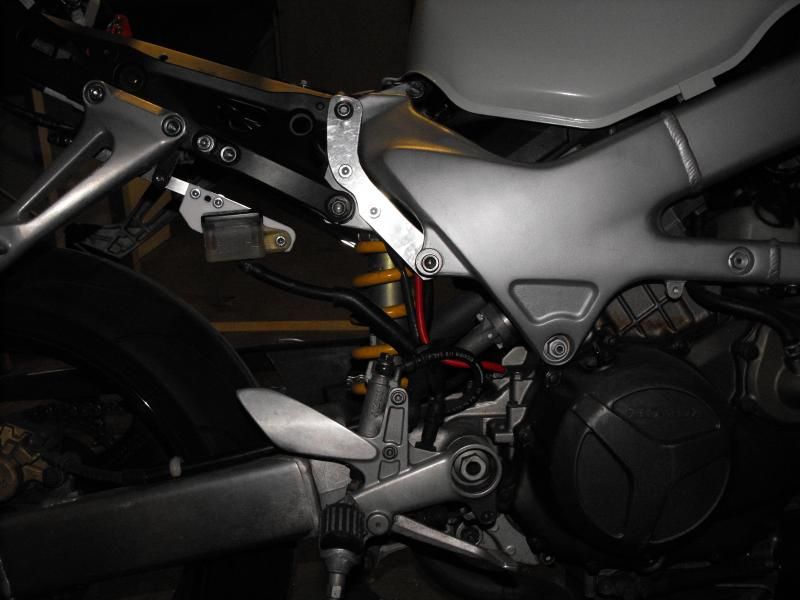

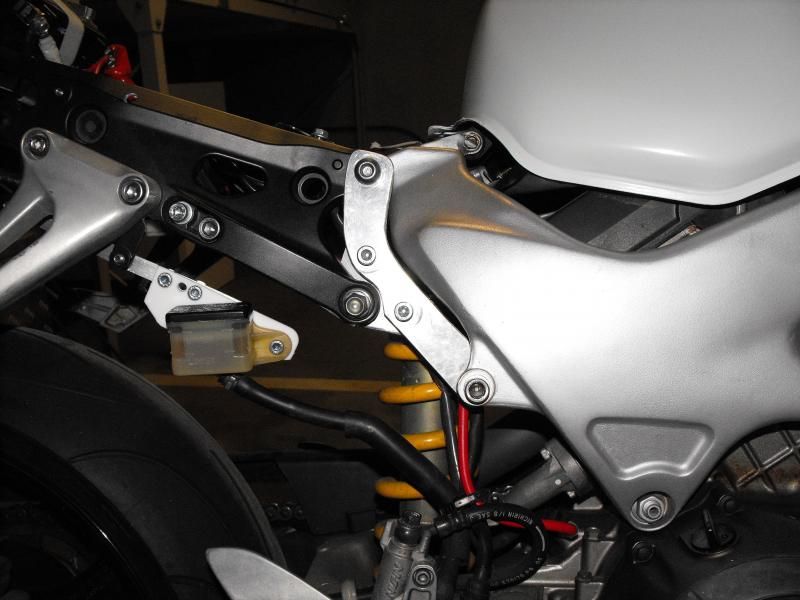

This is how they look,
http://i1101.photobucket.com/albums/...0/DSCF5034.jpg
http://i1101.photobucket.com/albums/...0/DSCF5040.jpg
Might paint them black, not sure yet. Anyway, took me around 3 hours to make.
And I gotta say thanks to xa-mont & wackyrider for offering to draw the brackets up in there computers for the water jet people, its guys like you that make this forum AWESOME !! :p

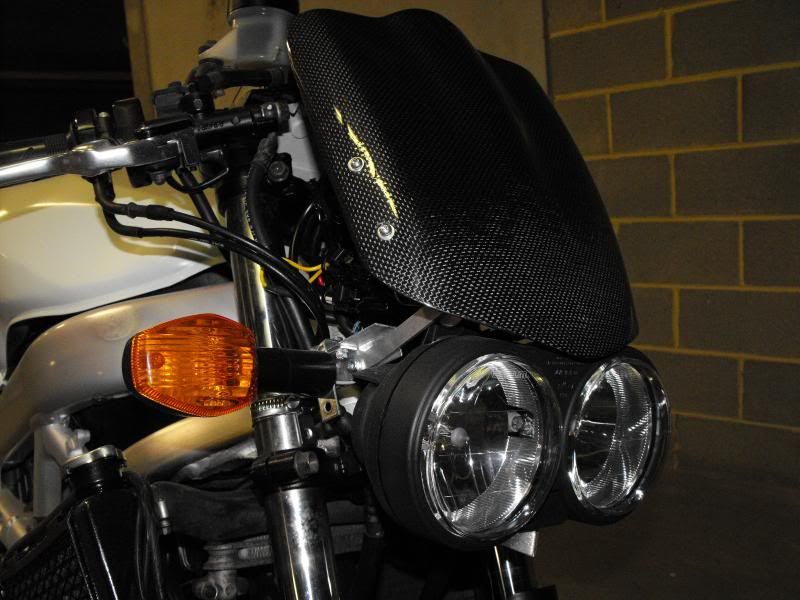

Mounted my screen,
http://i1101.photobucket.com/albums/...0/DSCF5459.jpg
Looks much better bloke
Nice :)
those brackets are about a trillion times better! great job mate. it's helpfull having inspirational people like surt around doing all this shit with basic tools... i'm way too impatient for that shit and prefer to do with with cheety technology :D
Now you're talking mate! Well done.
Thanks Matty.Quote:
Originally Posted by MattyDucati
Thanks Bob.Quote:
Originally Posted by Bob
Thanks, Yep, I saw Surt's rear set adapters & thought maybe I should try that, so I grabbed my jigsaw.Quote:
Originally Posted by xa-mont
Would have been nice to have had them water jet cut, but a few people told me they would of charged an arm & a leg.
Thanks again for the offer xa-mont !
Thanks Gix11, you were the first one to question those brackets & I thank you for that.Quote:
Originally Posted by Gix11
Like I said in my first post, "might need some help along the way" :rolleyes:

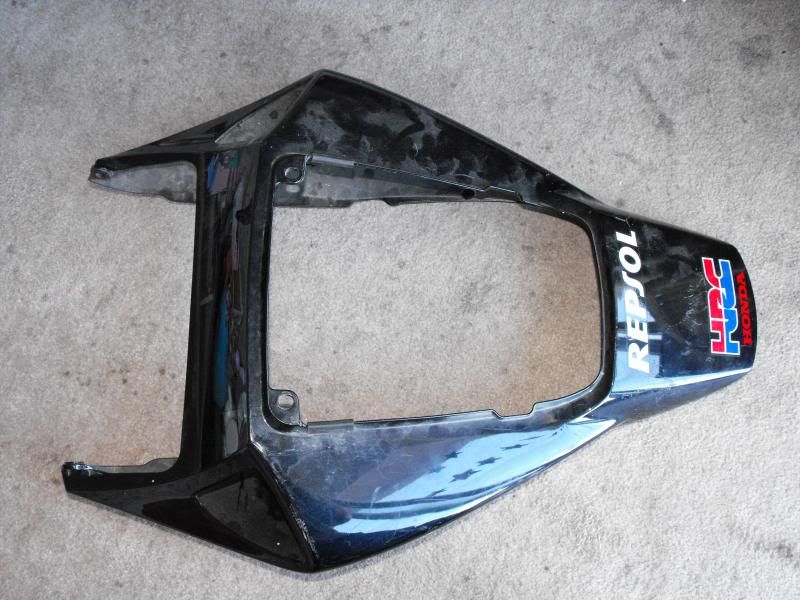

I got a 07 cbr1000rr rear fairing, it's busted up a bit, but I'm going to try some thing with it. A little cut & chop.
http://i1101.photobucket.com/albums/...0/DSCF5349.jpg
http://i1101.photobucket.com/albums/...0/DSCF5348.jpg

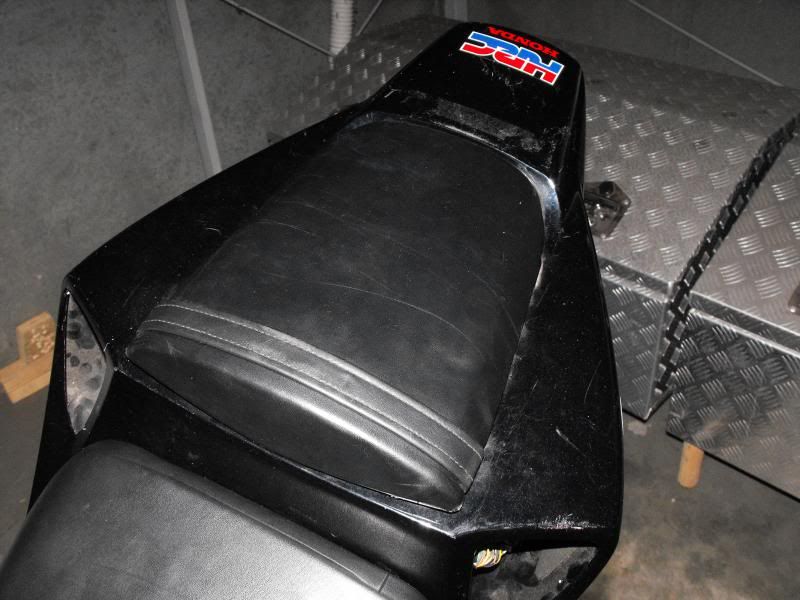

Also got a cbr600rr rear seat, think it was 2008 (to tired to think right now) it is a little bit small, but should do the job for now.
http://i1101.photobucket.com/albums/...0/DSCF5380.jpg

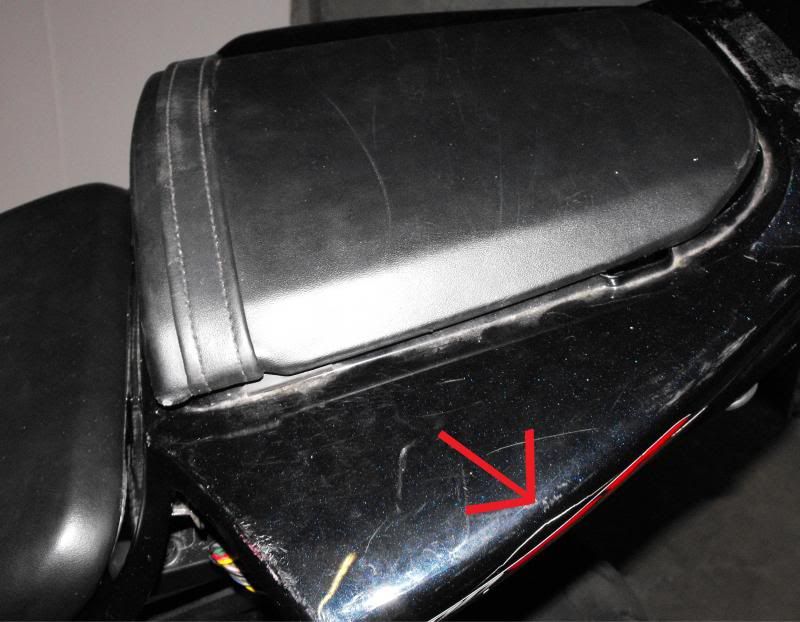

You can see in this pic, one of the cracks, around 15cm's long, there is also 2 more cracks on the other side.
And you can also see how the cbr600rr seat is a little bit small.
http://i1101.photobucket.com/albums/.../DSCF5379a.jpg

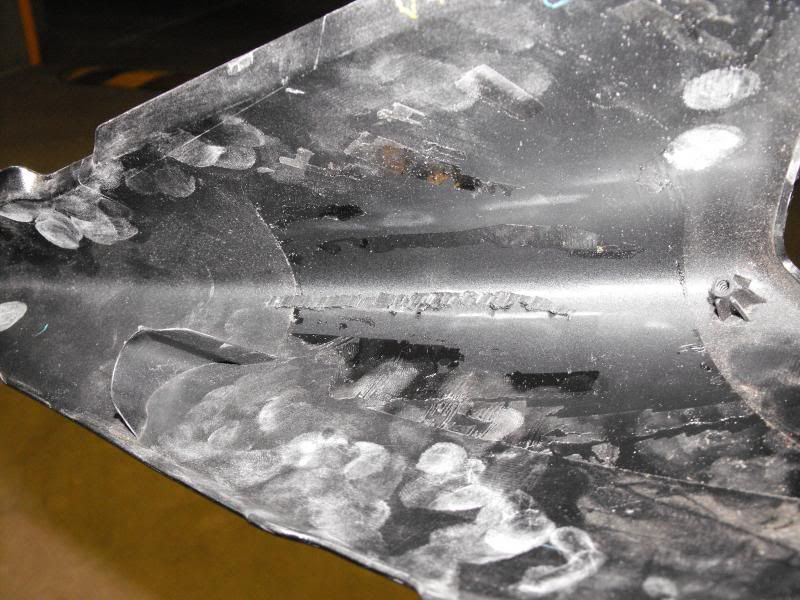

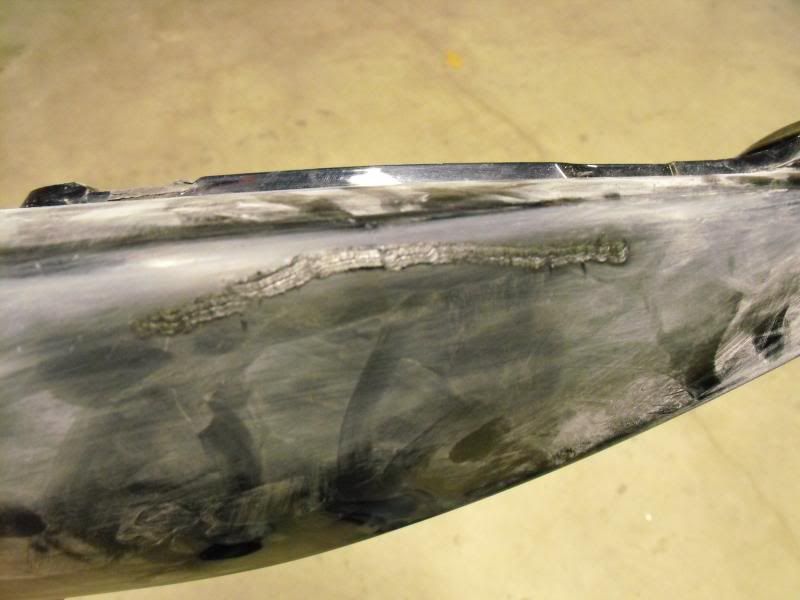

Going to try & plastic weld the cracks with my soldering iron,
If it doesn't work I might just put some 1000 stickers over the crack, cause the crack is about the same spot the original stickers go. See how it goes, not to fussed if it doesn't work.
http://i1101.photobucket.com/albums/...0/DSCF5421.jpg
http://i1101.photobucket.com/albums/...0/DSCF5428.jpg

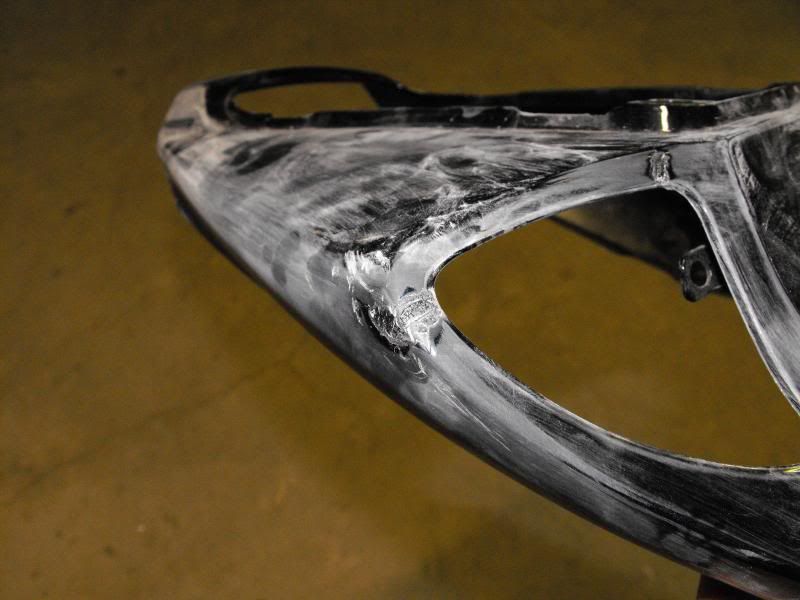

Not sure how strong it will be ? Might need to melt some plastic zip ties into it.
http://i1101.photobucket.com/albums/...0/DSCF5427.jpg

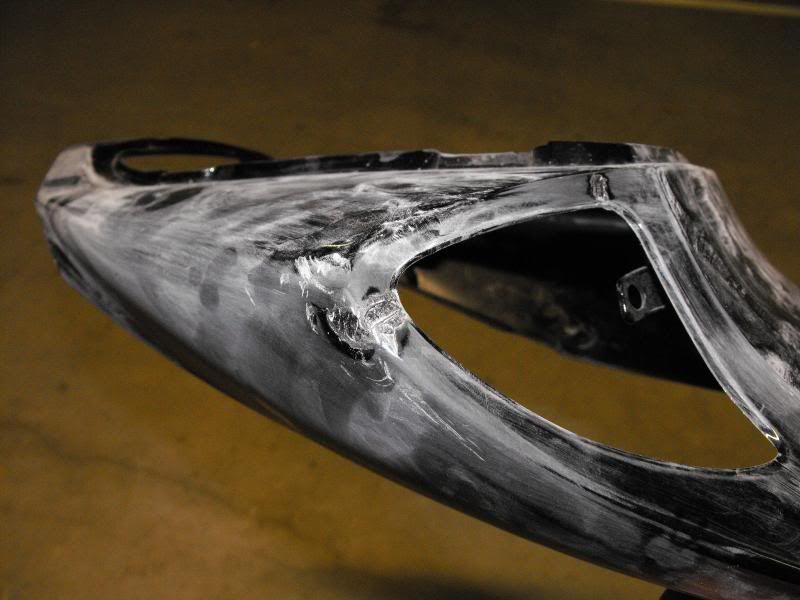

And if you didn't notice, I have cut around 17cm from the rear of the fairing.
I new it was going to be to long from the start & was always planning on giving it the chop.
http://i1101.photobucket.com/albums/...0/DSCF5426.jpg
Nice job mate
Thanks erno, now its a little bit shorter than yours :p.Quote:
Originally Posted by erno

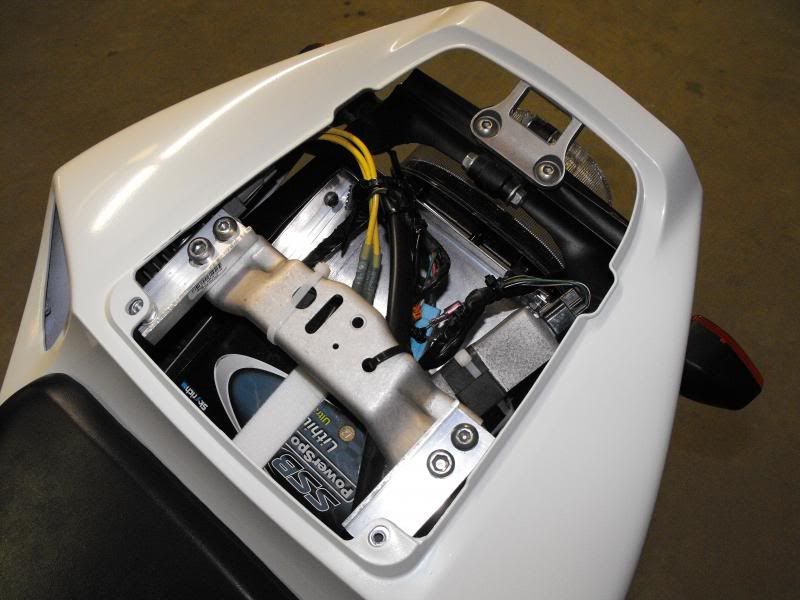

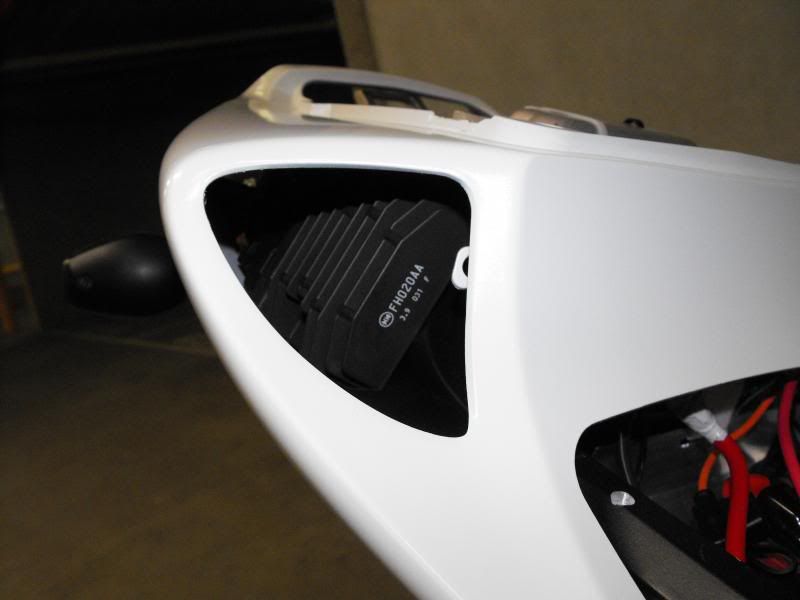

The R/R should get plenty of air in there.
http://i1101.photobucket.com/albums/...0/DSCF5468.jpg
speedy work. nice one.
Thanks xa-mont.Quote:
Originally Posted by xa-mont
I would love to spend more time on the detail work, fuck I wish I had a garage, It really sucks working in a car space.
Got some vents for the rear fairing.
http://i1101.photobucket.com/albums/...0/DSCF5079.jpg
Going to drill some holes in the back of the right hand side vent so more air gets to the R/R,
http://i1101.photobucket.com/albums/...0/DSCF5078.jpg

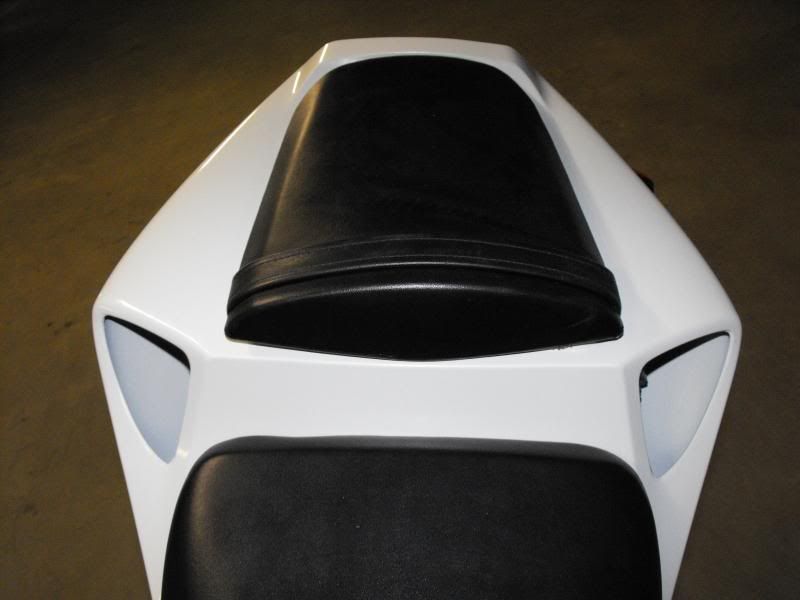

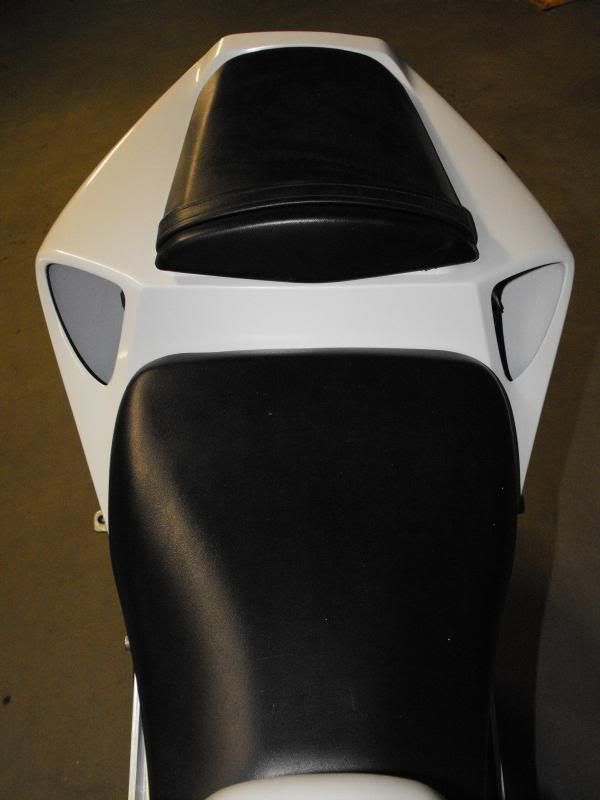

Starting to come together,
http://i1101.photobucket.com/albums/...0/DSCF5439.jpg
http://i1101.photobucket.com/albums/...0/DSCF5447.jpg
