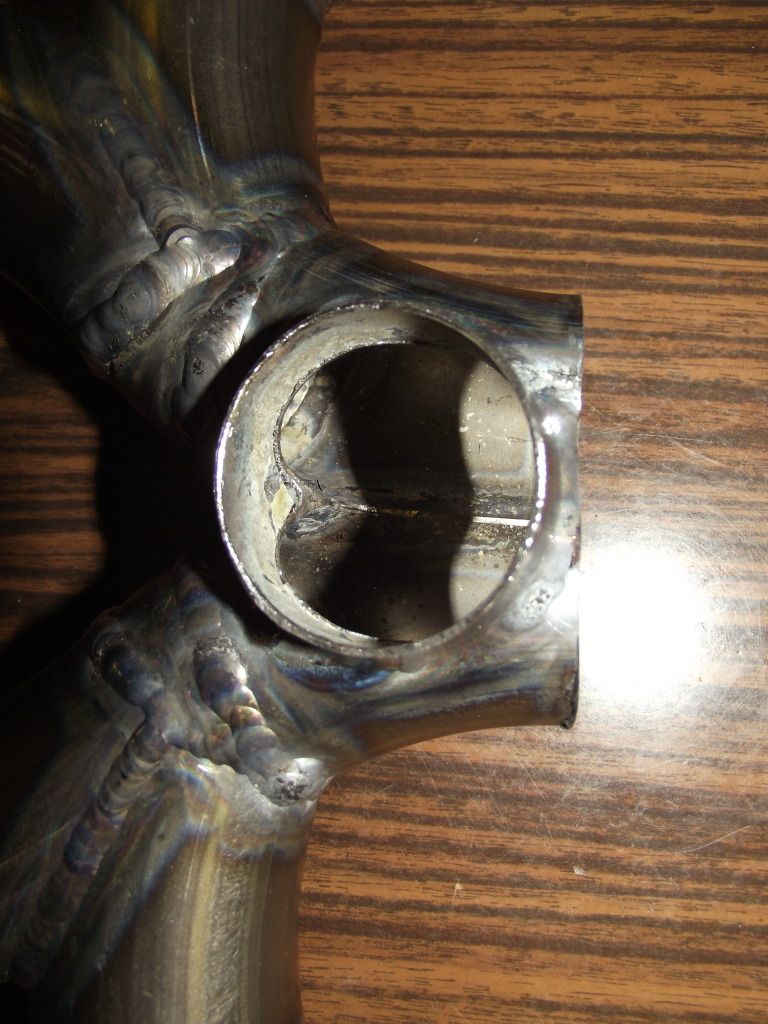

the hole for the wg runner's made and the merging ring or whatever u'd call it is welded to
http://i1175.photobucket.com/albums/...r/DSCF4738.jpg
the whole assembly can be removed as a one piece
http://i1175.photobucket.com/albums/.../DSCF4739r.jpg

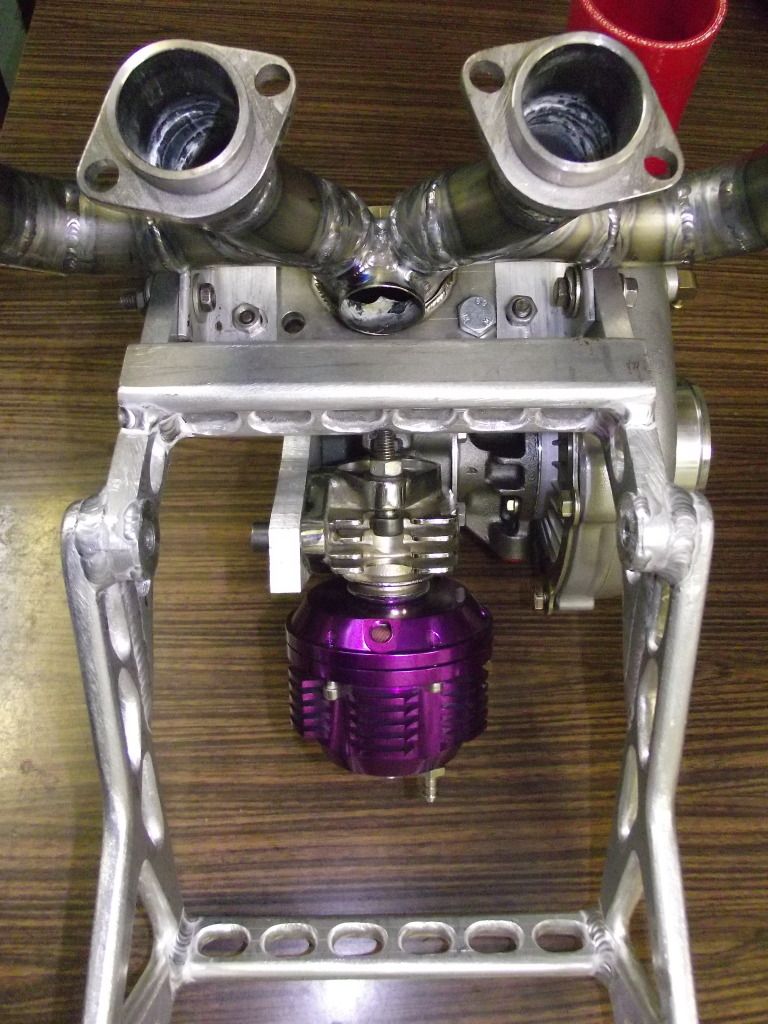

the task: to make a runner between the header and wg flange, its gunna be bent a bit and not in line: the merging ring 's displaced from wg flange for 5mm or so

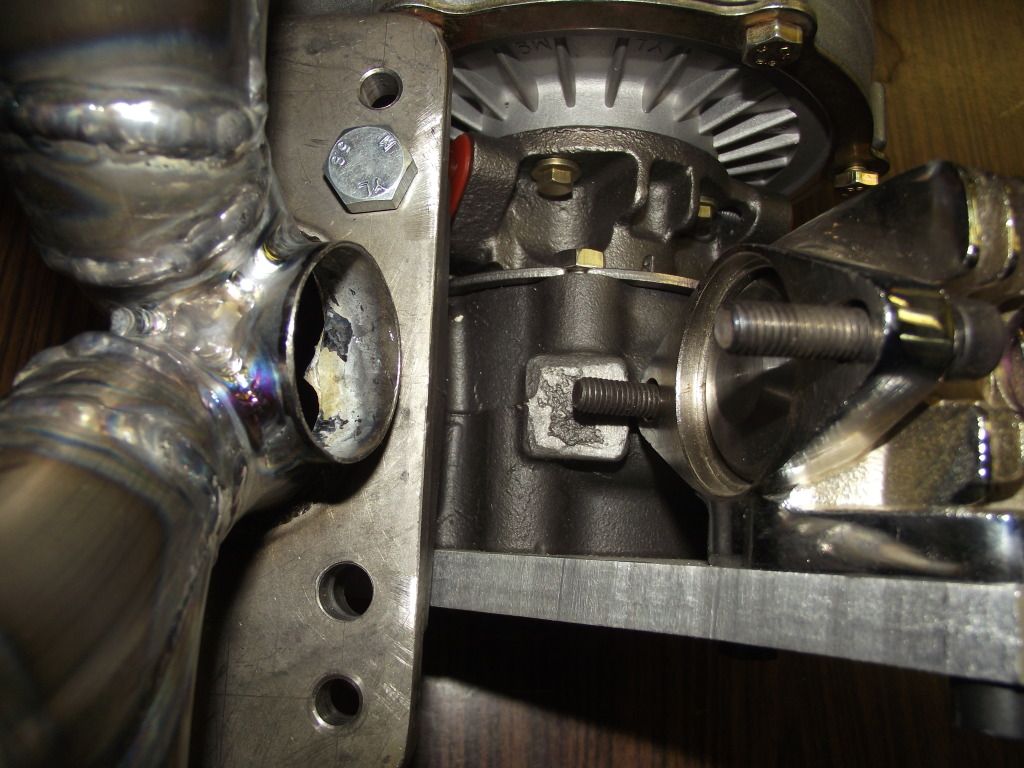

http://i1175.photobucket.com/albums/...r/DSCF4740.jpg
http://i1175.photobucket.com/albums/...r/DSCF4741.jpg

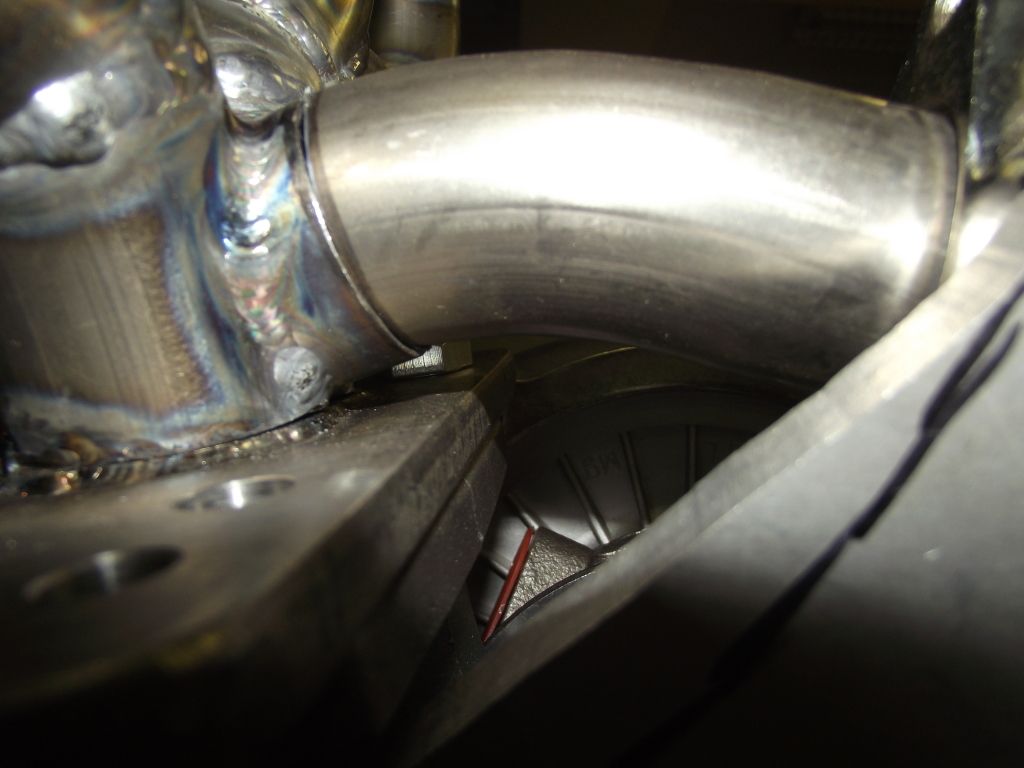

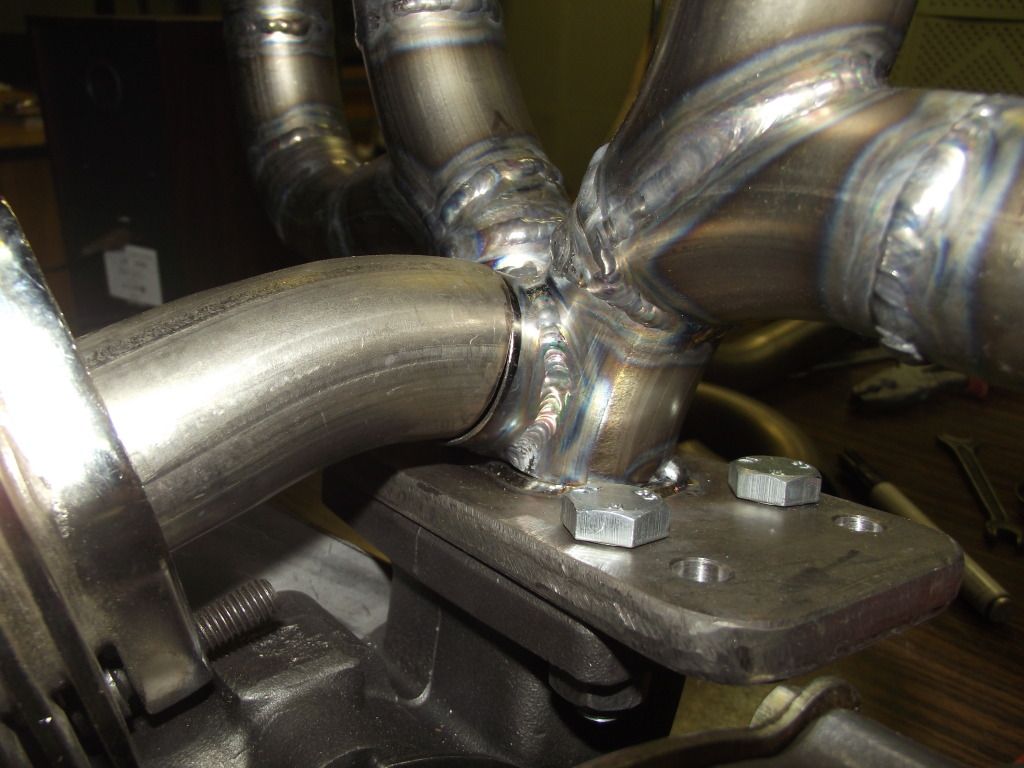

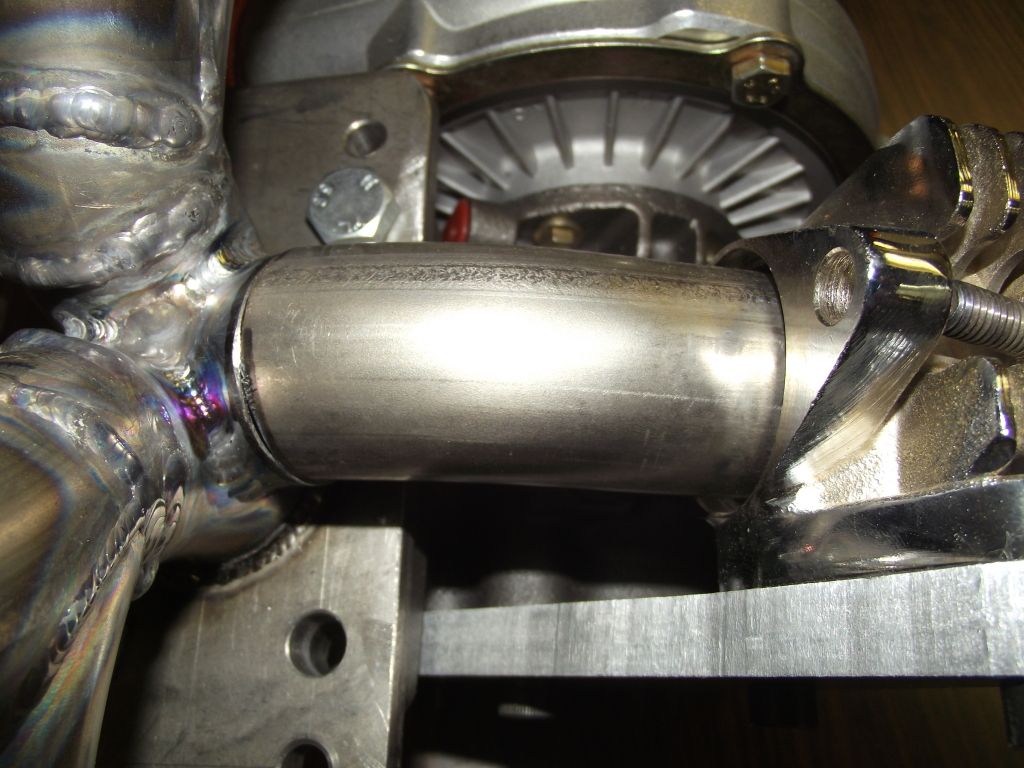

hawk eye - one cut one killed! managed to make a 1 piece runner - thought it'd take 2 pieces to say the least, perfect fitment, just the wg flage is gotta be made asap
http://i1175.photobucket.com/albums/...r/DSCF4742.jpg
http://i1175.photobucket.com/albums/...r/DSCF4743.jpg
http://i1175.photobucket.com/albums/...r/DSCF4744.jpg

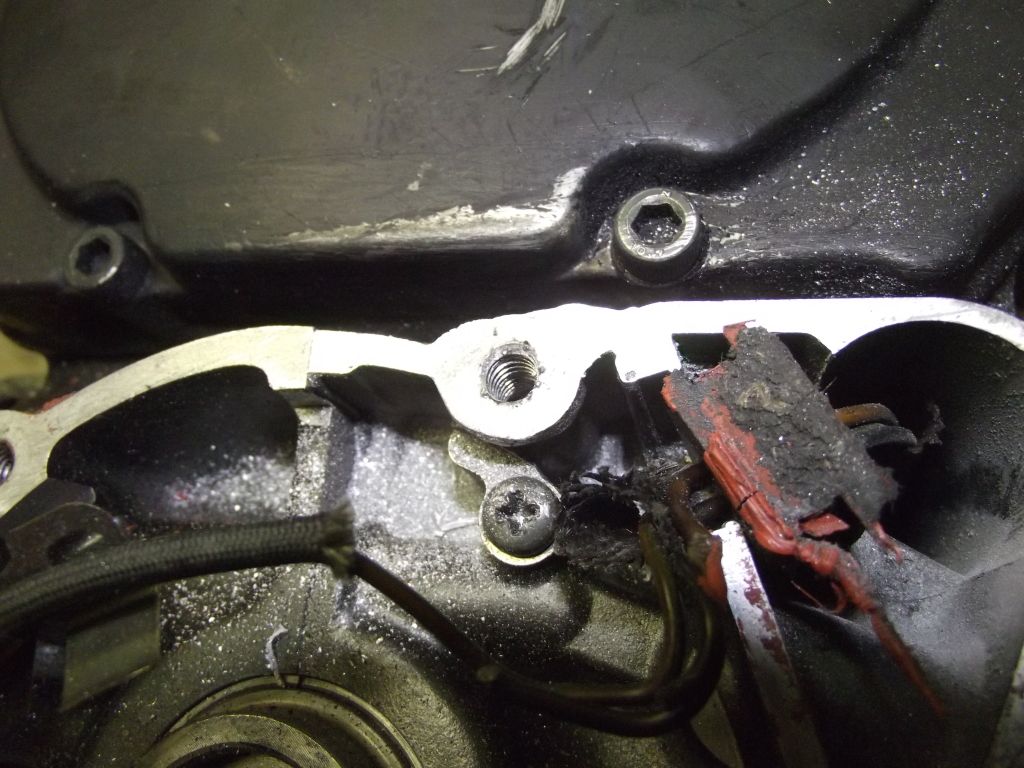

another cracked hole on the right side was restored hell'iluyah!
http://i1175.photobucket.com/albums/...r/DSCF4747.jpg
geez another cool kid with a turbo,lol ,good work fella
This is gold :-)Quote:
Originally Posted by Surt
the stem? not really just plated haha
going back... here Jon

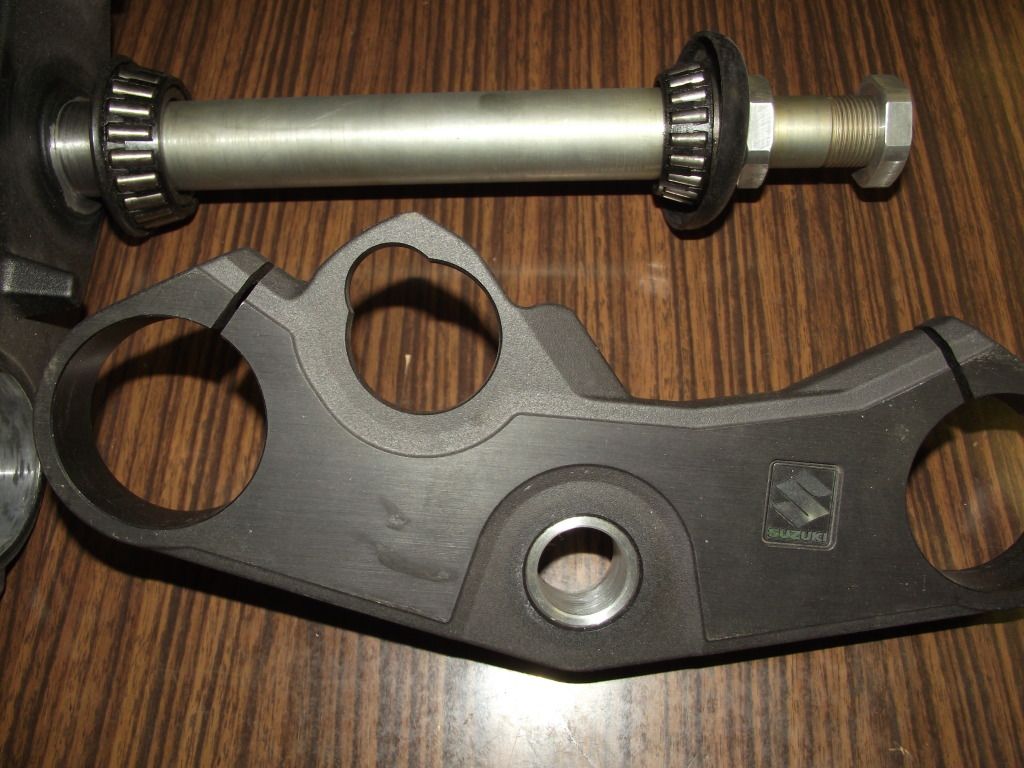

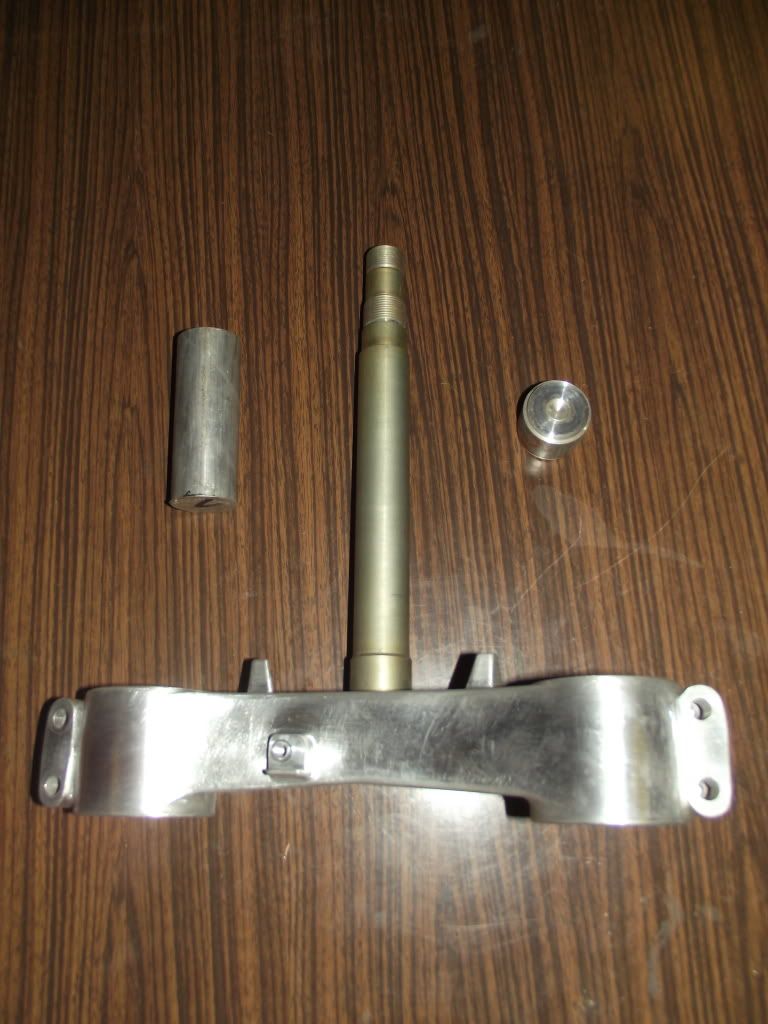

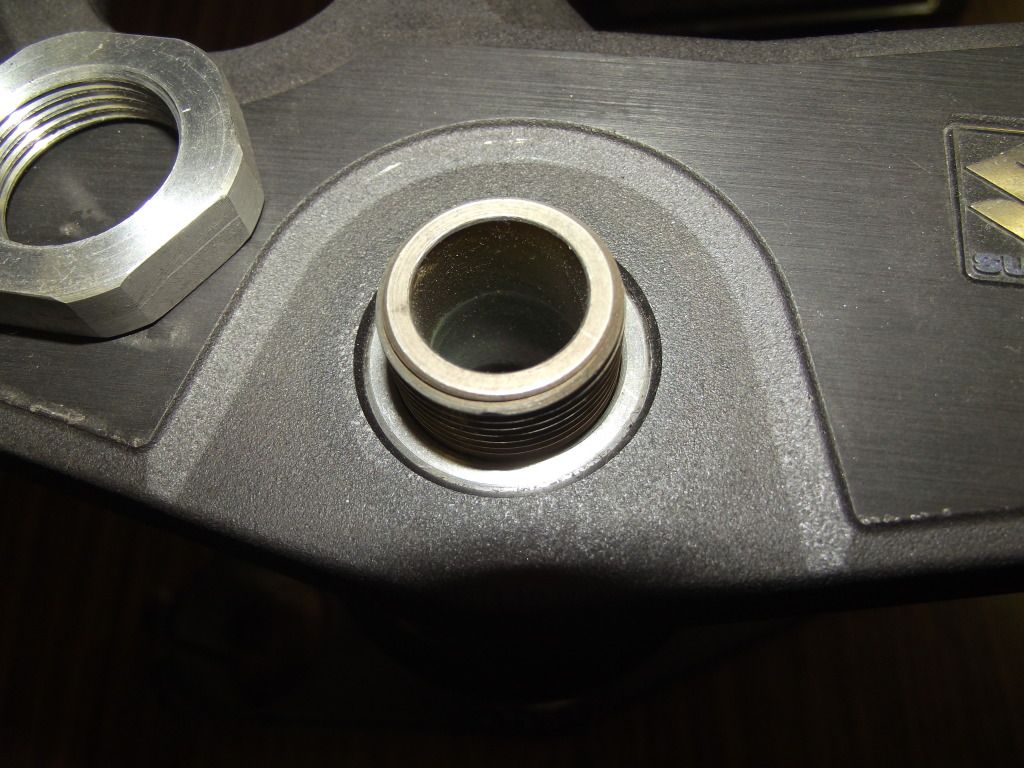

the insert pressed in the upper yoke
http://i1175.photobucket.com/albums/...r/DSCF4748.jpg
http://i1175.photobucket.com/albums/...r/DSCF4749.jpg
the assembly
http://i1175.photobucket.com/albums/...r/DSCF4750.jpg
http://i1175.photobucket.com/albums/...r/DSCF4751.jpg

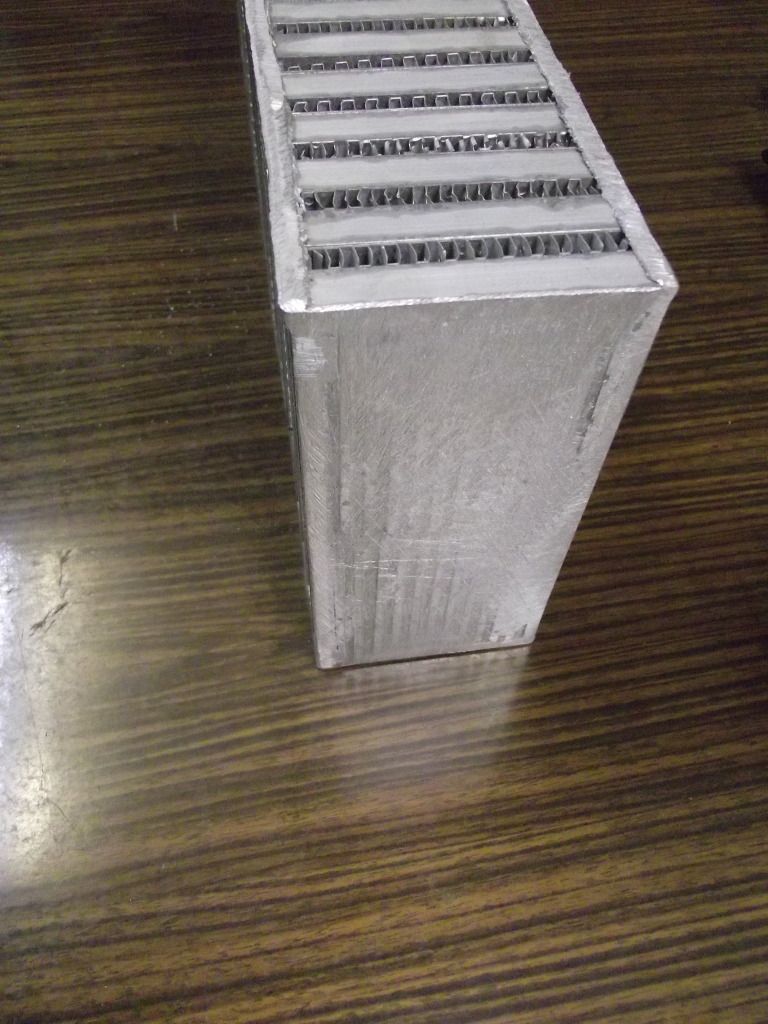

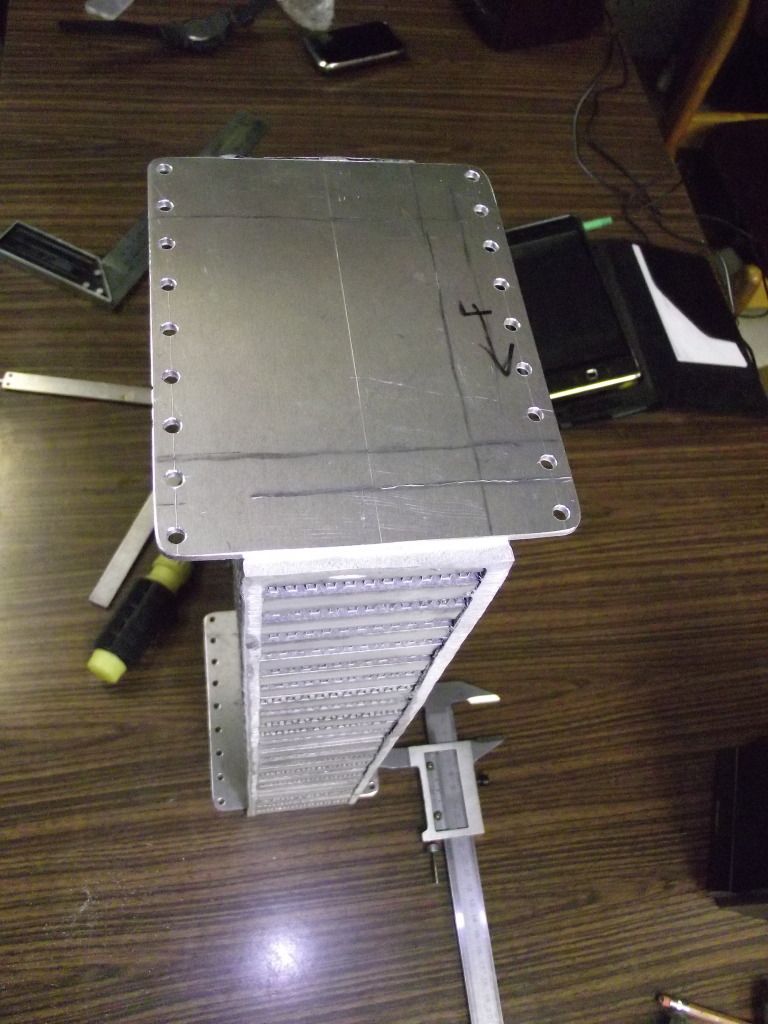

waitin for the dump pipes inserts to be made and yet preppin the ic for tomorrows weldin
http://i1175.photobucket.com/albums/...r/DSCF4752.jpg
http://i1175.photobucket.com/albums/...r/DSCF4753.jpg
fabbin the bov flange
just dont fuckin tell me of cnc mills, water jets and laser cutters
http://i1175.photobucket.com/albums/...psf7ee07dc.jpg
http://i1175.photobucket.com/albums/...ps52f881f4.jpg
http://i1175.photobucket.com/albums/...psab4a4dfc.jpg
http://i1175.photobucket.com/albums/...ps718f73d8.jpg
Top work mate, u got skills! keep it up
You went the tuffer route after all. Looks great !
Your a machine Surt!
surt - Mr CNC hands
thanks heaps mates! right, Surt CNC Hands haha
the headers been almost finished today, jusr a few seams left
http://i1175.photobucket.com/albums/...ps28c22a65.jpg
http://i1175.photobucket.com/albums/...ps08724c5d.jpg
about a 3mm gap between the bov runner and holder bracing
http://i1175.photobucket.com/albums/...ps3fb645b4.jpg
about 1 min to put the frame on
http://i1175.photobucket.com/albums/...ps06bd327e.jpg
then i tried to fit the ic in but failed - the bloody side walls didn't let it in, so i cut their front corners but still failed. prolly i'll cut of more from the front parts of the walls, no worries.
therefore i fitted the ic on the powerplant without frame
http://i1175.photobucket.com/albums/...pse0235d9a.jpg
http://i1175.photobucket.com/albums/...ps3e7c4ad2.jpg
http://i1175.photobucket.com/albums/...ps3f2bbf56.jpg
welded around inside the turbine flange
http://i1175.photobucket.com/albums/...r/DSCF4772.jpg

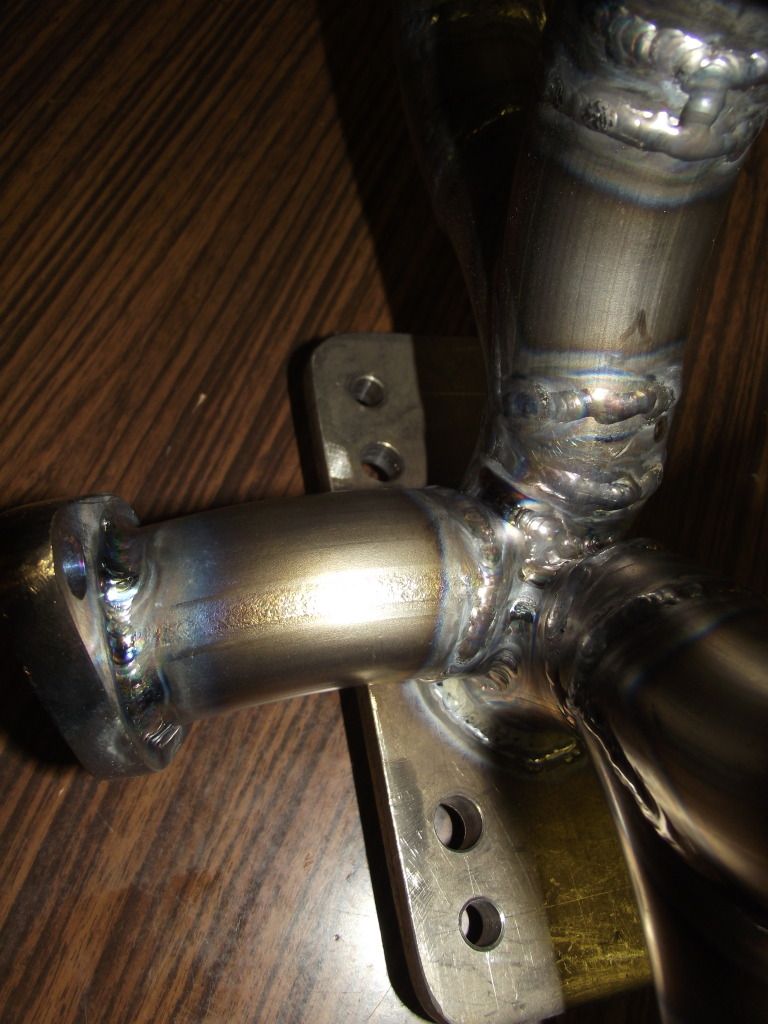

and same with the bov flange but outside
http://i1175.photobucket.com/albums/...r/DSCF4773.jpg

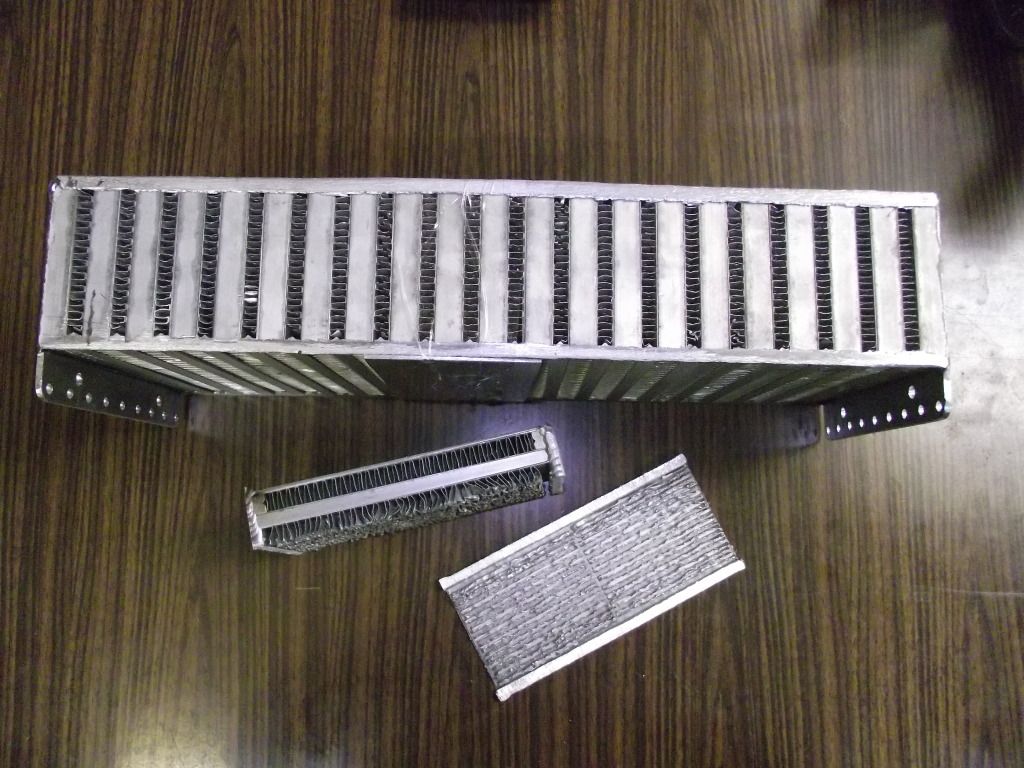

had to shorten the ic core again and again
http://i1175.photobucket.com/albums/...r/DSCF4774.jpg

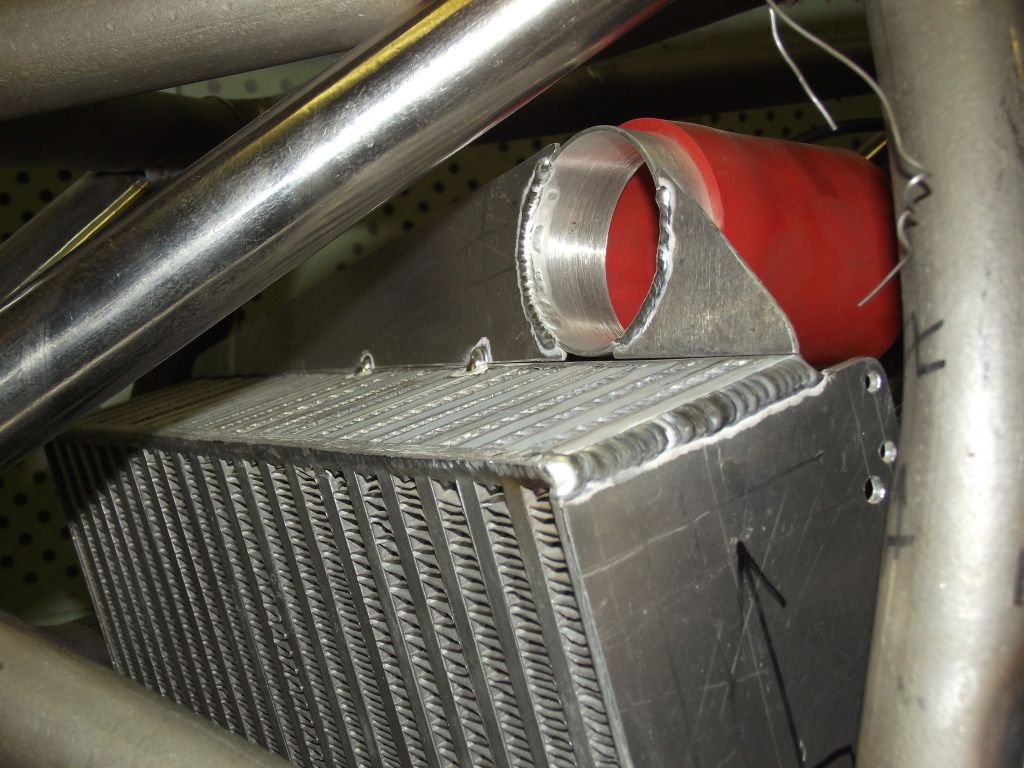

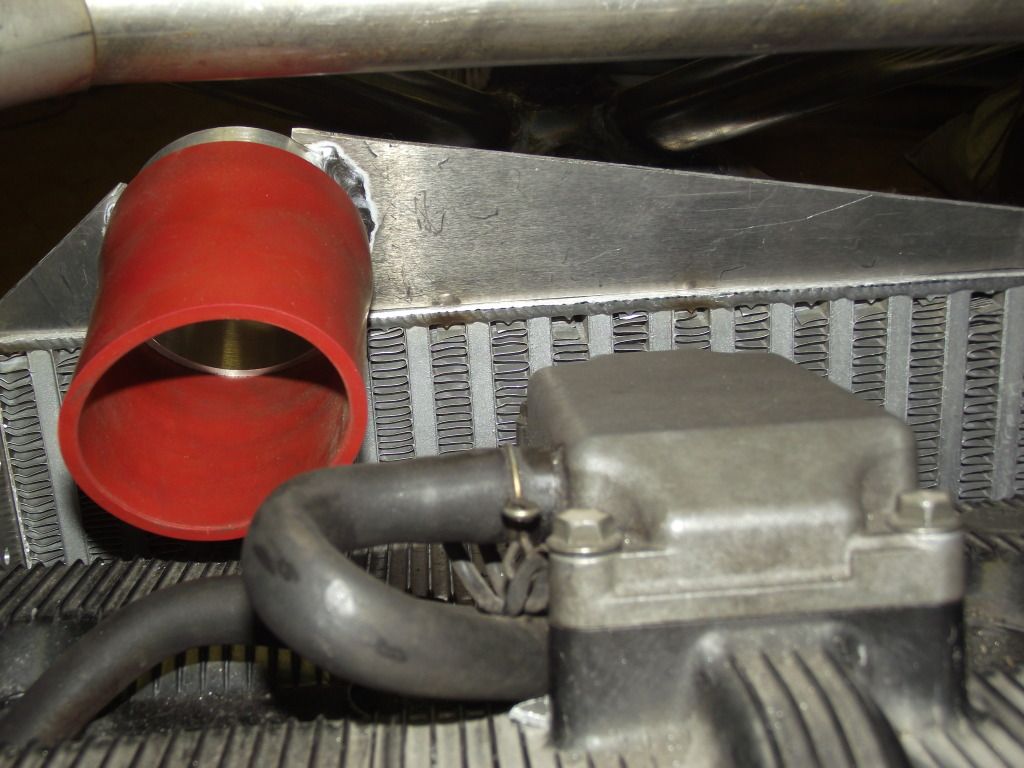

started fabbin the uppet tank
http://i1175.photobucket.com/albums/...r/DSCF4778.jpg
http://i1175.photobucket.com/albums/...r/DSCF4779.jpg

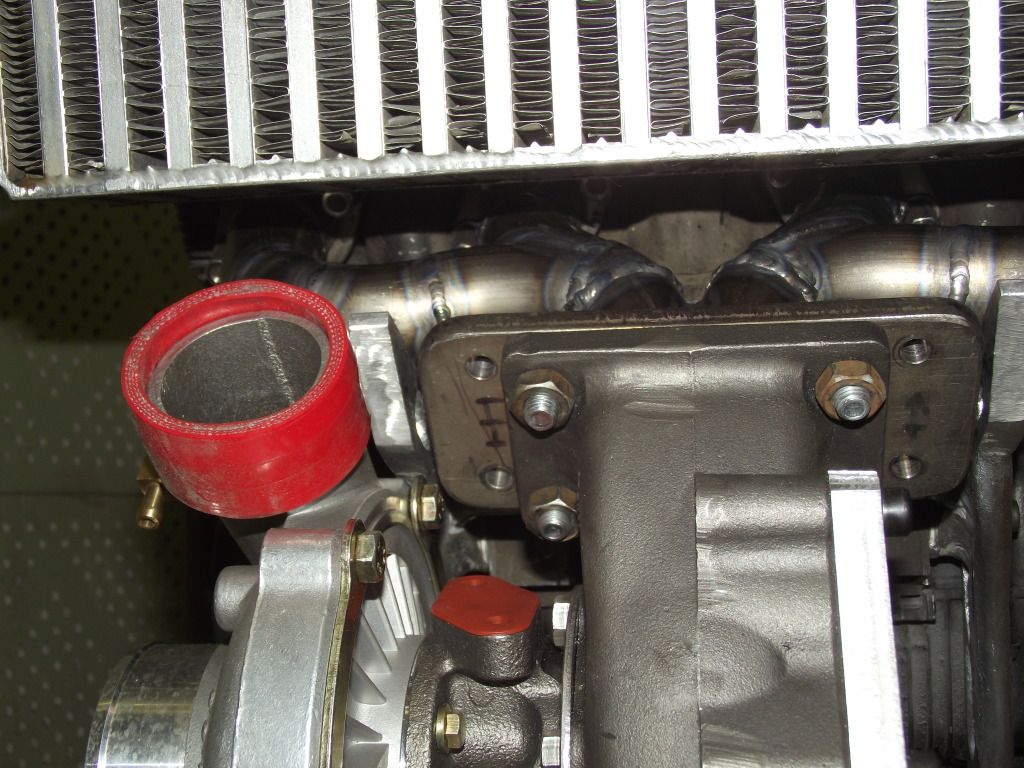

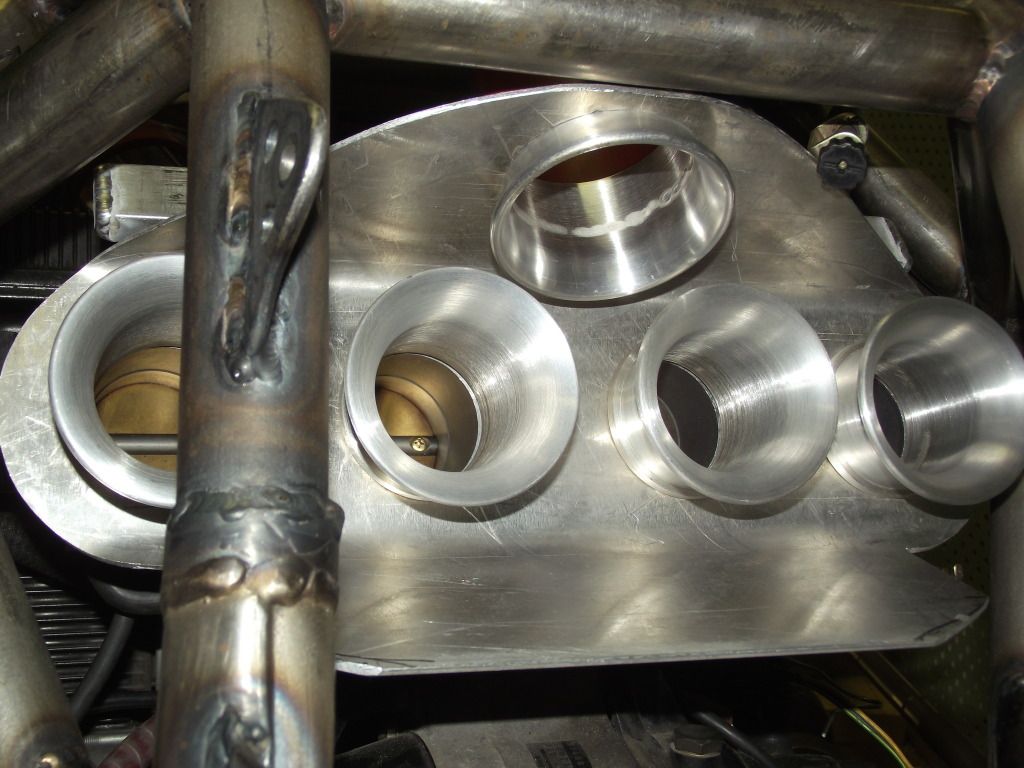

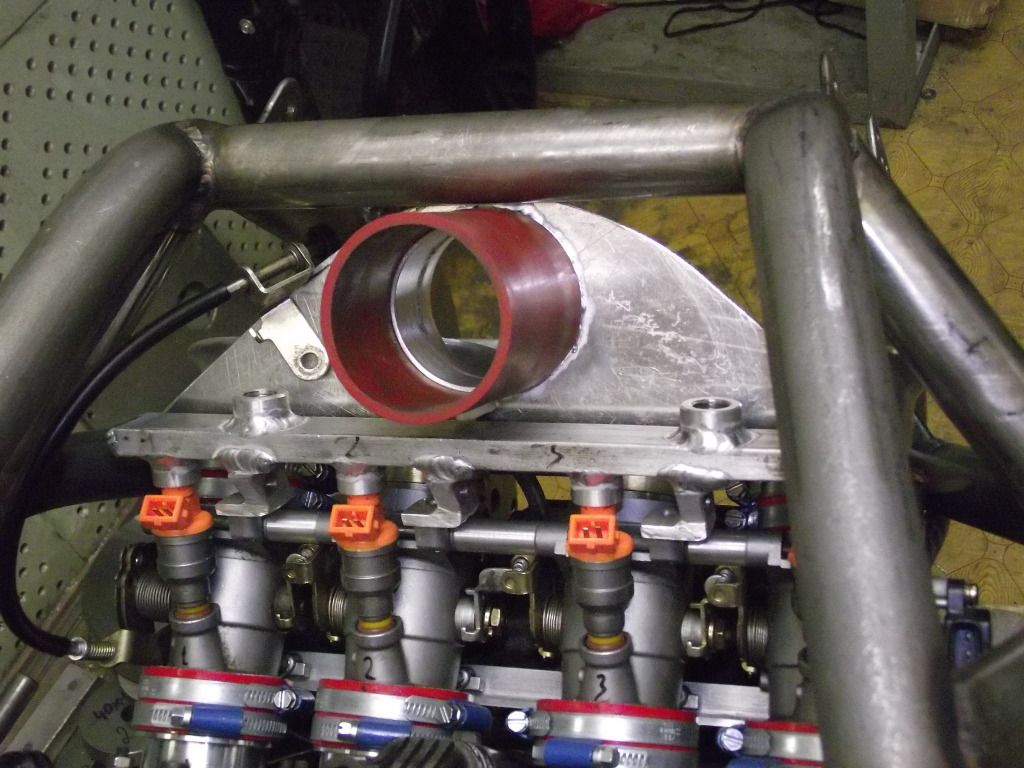

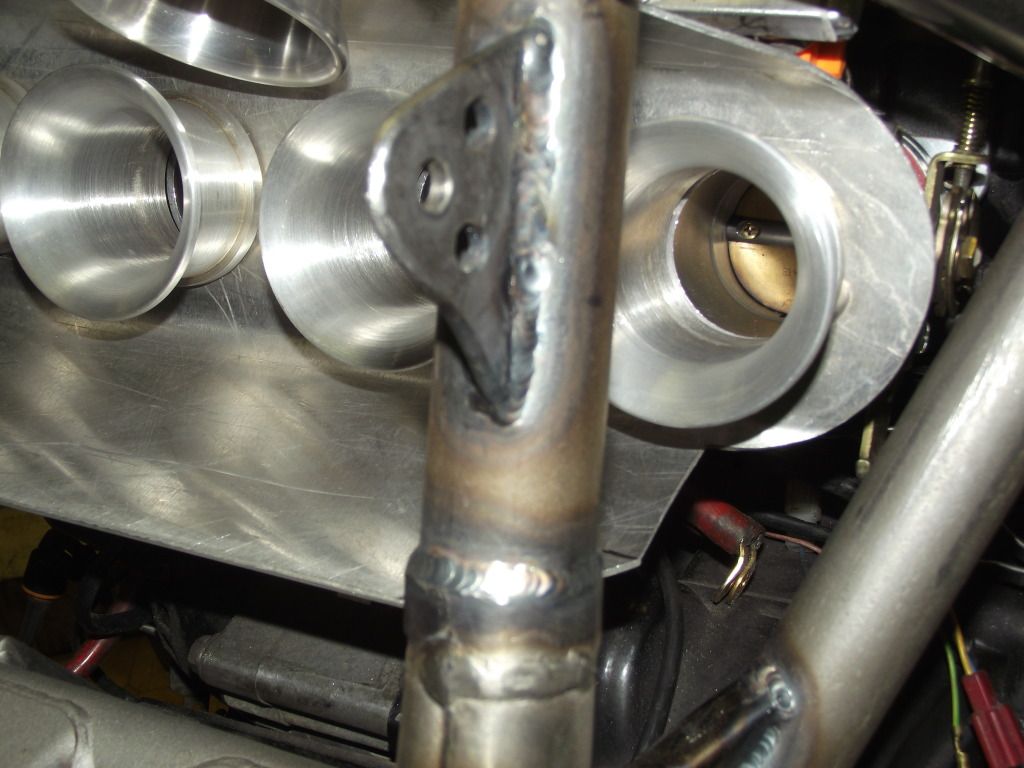

and getting an idea of the lower tank shape
http://i1175.photobucket.com/albums/...r/DSCF4780.jpg
