thats gunna look fucking good mate

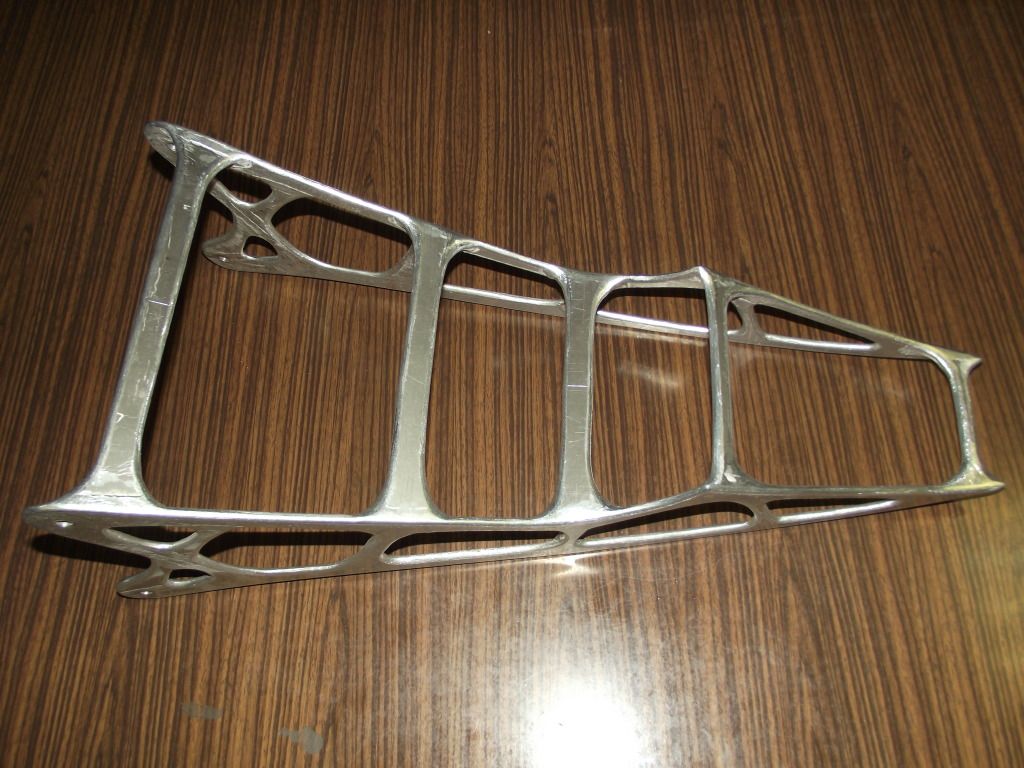

thanks rod, hopefully it is, at least thats wat i wanted to make, gunna be a single seater tho, i hate to maime it with passangers foot rests
http://i1175.photobucket.com/albums/...r/DSCF4619.jpg
http://i1175.photobucket.com/albums/...r/DSCF4623.jpg
http://i1175.photobucket.com/albums/...r/DSCF4624.jpg
http://i1175.photobucket.com/albums/...r/DSCF4626.jpg
http://i1175.photobucket.com/albums/...r/DSCF4628.jpg

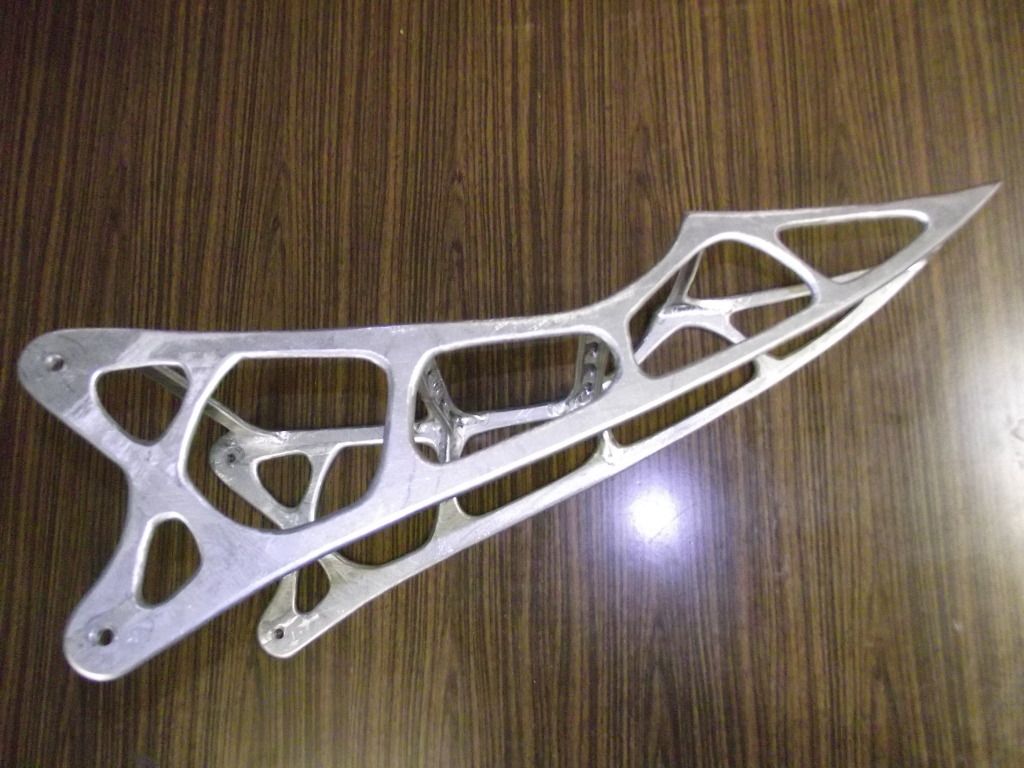

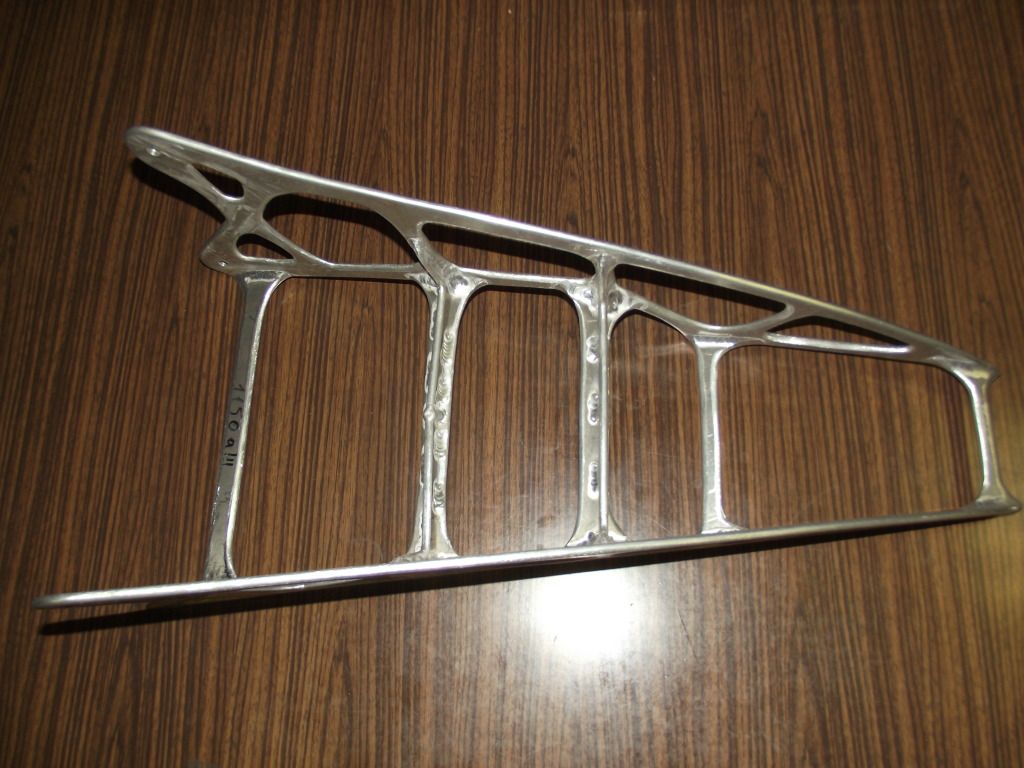

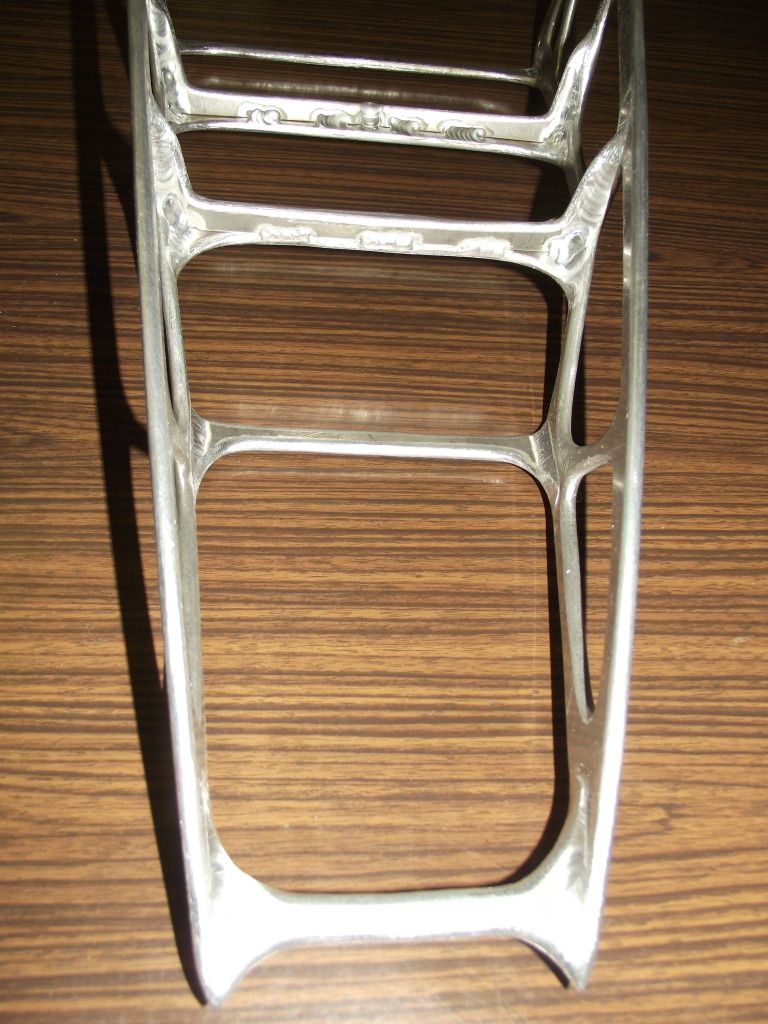

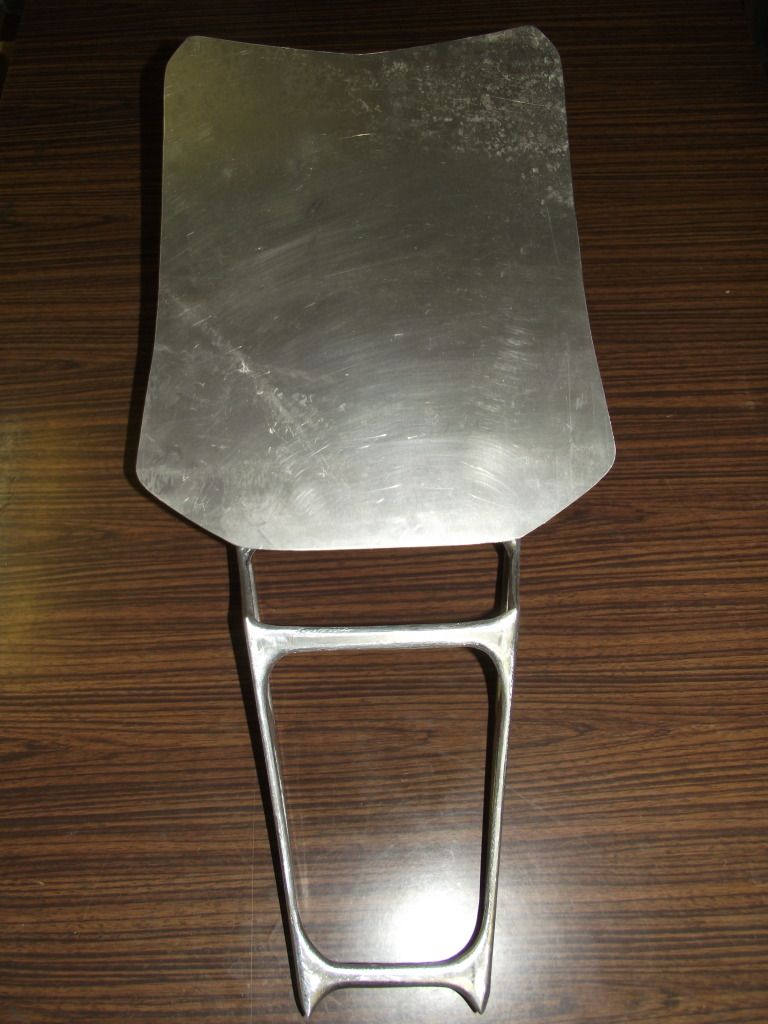

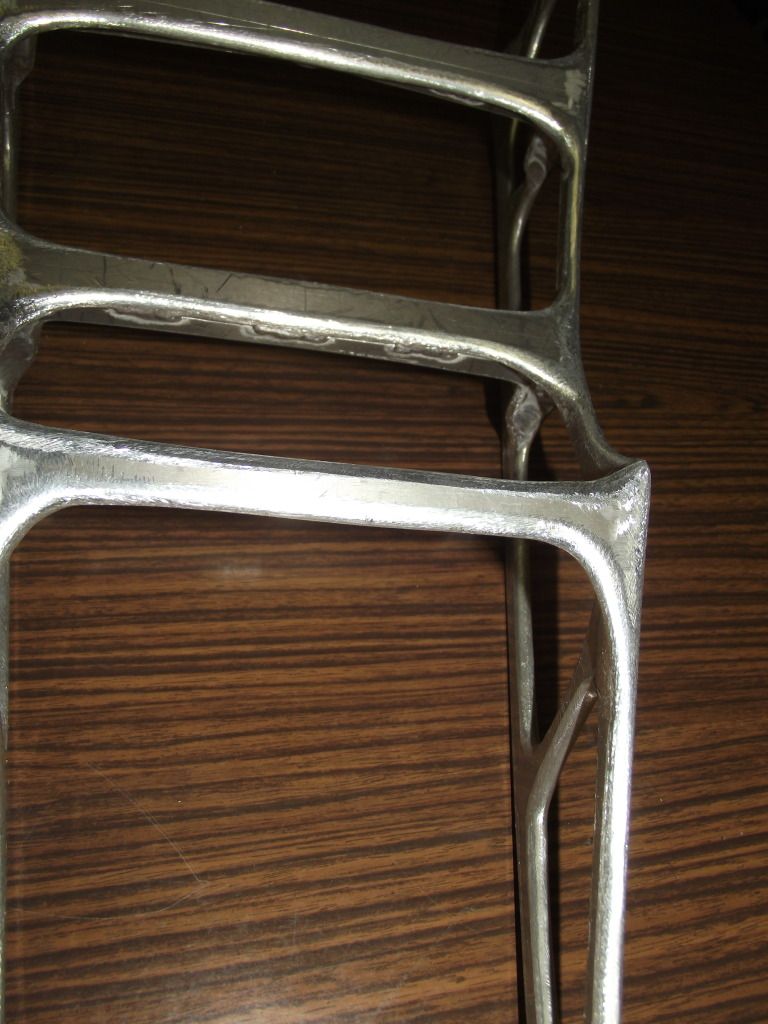

ps btw the subbie weighs in just 1.1kg!!!
thats fucking cool i like it
Nice mate
Nice work Surt !!! I was wondering where you had gotten to....
thanks heaps Dan, noice to know that there helluva thousands miles down under i have friends that have noticed my absence unlike my so called friends up here, well it just proves where i really belong to... have had wat we call "an asphalt sickness", a high side bad injuries mostly my poor head but kinda alright now just madder than ever bwahaha! like hell i'll croak before Oz but if i will id go straight to Valhalla somewhere in Queensland me thinks
anyway, long long time to have the header made so there we go

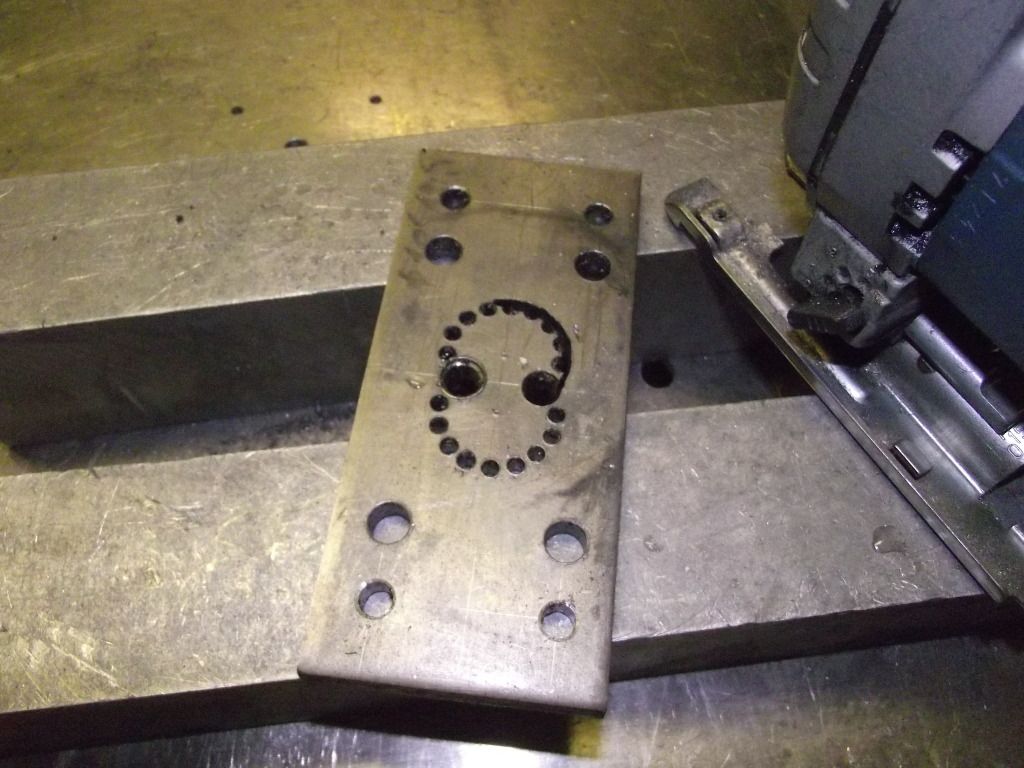

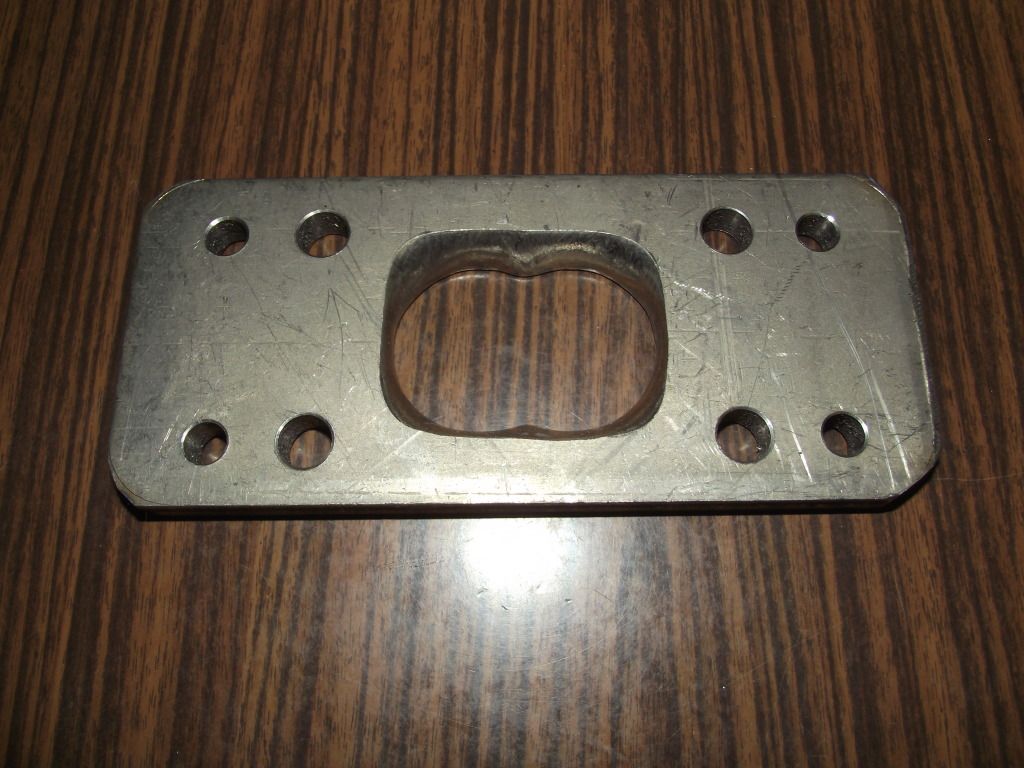

10mm thick titanium sheet for the flange... you should see wat happens to the jigsaw blades when sawing 10mm titanium haha! i'll shoot it on monday
http://i1175.photobucket.com/albums/...r/DSCF4568.jpg
4hs later
http://i1175.photobucket.com/albums/...r/DSCF4570.jpg
A thin hand pwered metal saw (junior hacksaw or coping saw) is much better for cutting Ti mate jigsaw has to high a blade speed for Ti as soon as it gets hot it eats the blade.
Loving this build Surt. Hope the head heals mate, wanna see u finish this beast and give that asphalt a bit of payback
yeh gunna burn it to the ground, thanks angel of death just gimme some time!
Adam i tryed cuttin tutanium with a hand saw, no go! and as for my jig saw i used low revs and cooling in water, it cut alright first then the teeth got rounded but i was a one smart fucker i laid 20mm and 40mm thick spacers under the jigsaw to use all sections of the blade not just the upper 1

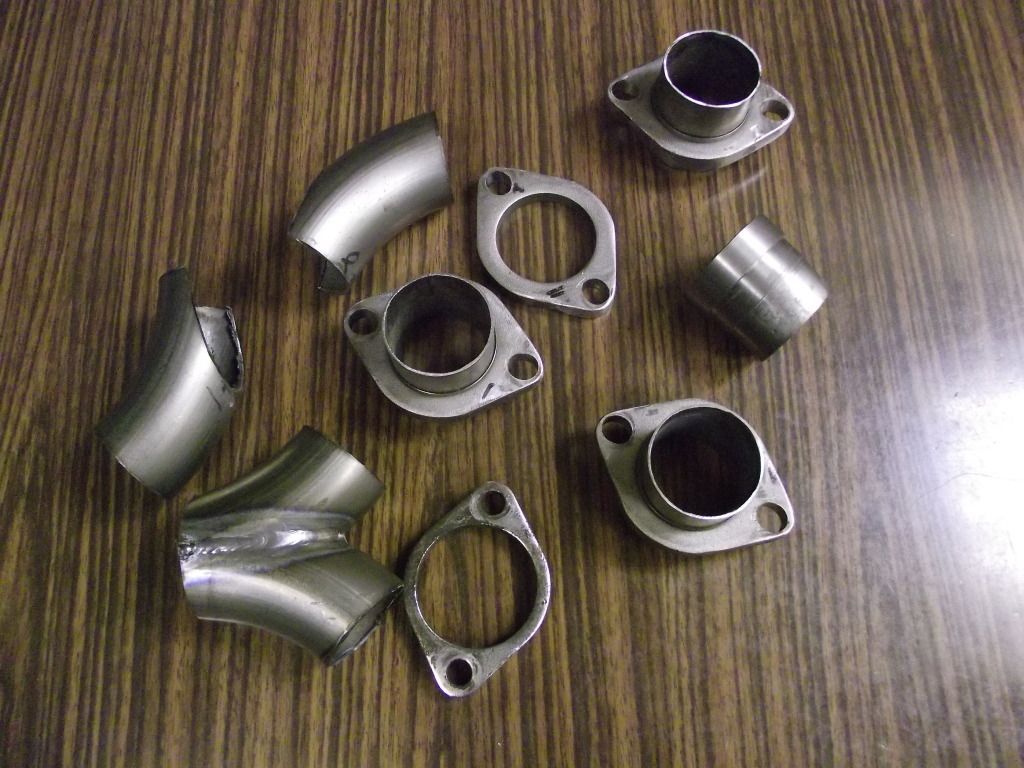

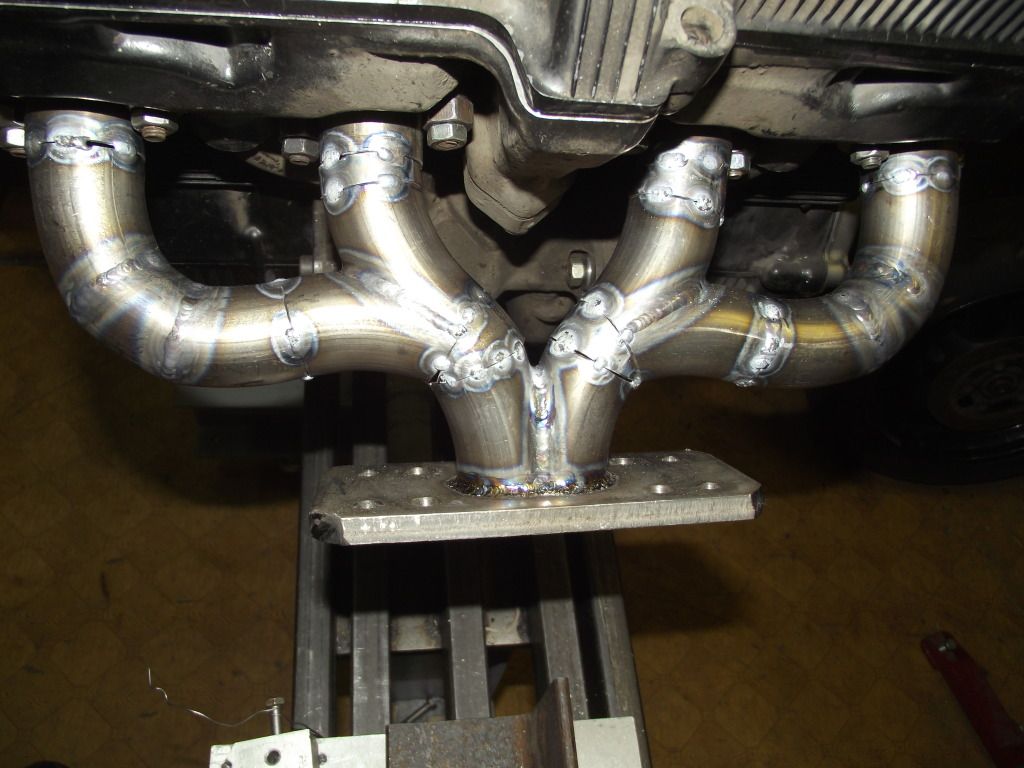

cbr954 titanium headers cut, ends were machined and flanges were re drilled and re shaped, making merge collectors now
http://i1175.photobucket.com/albums/...rr/zorst02.jpg

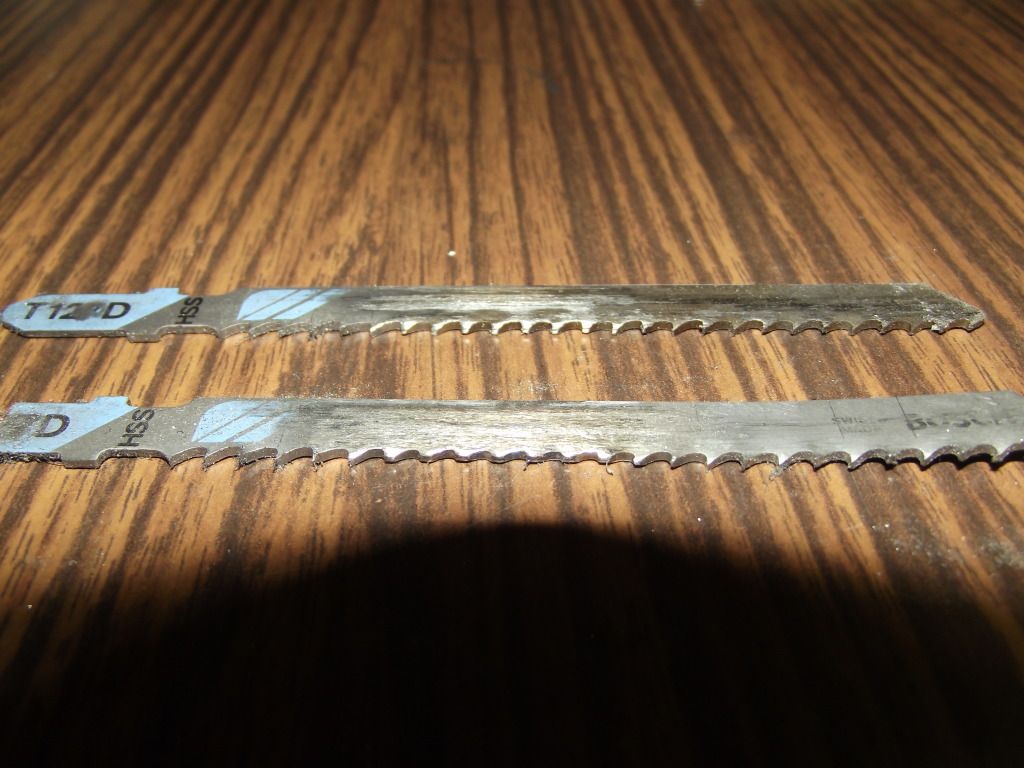

wats happenin' to jig saw blades meetin' titanium
http://i1175.photobucket.com/albums/...r/DSCF4645.jpg
Looking good mate , Not as hard to weld as I was told. Are you using extra bits of pipe for fill rod or do you have access to Ti welding wire ?
the 2nd option mate
hey surt good job AGAIN ,lol
Very nice bloke!
thanks heaps Pete and Matt!
the headers welded around but it needs an appendix for the wg
http://i1175.photobucket.com/albums/...rr/zorst04.jpg

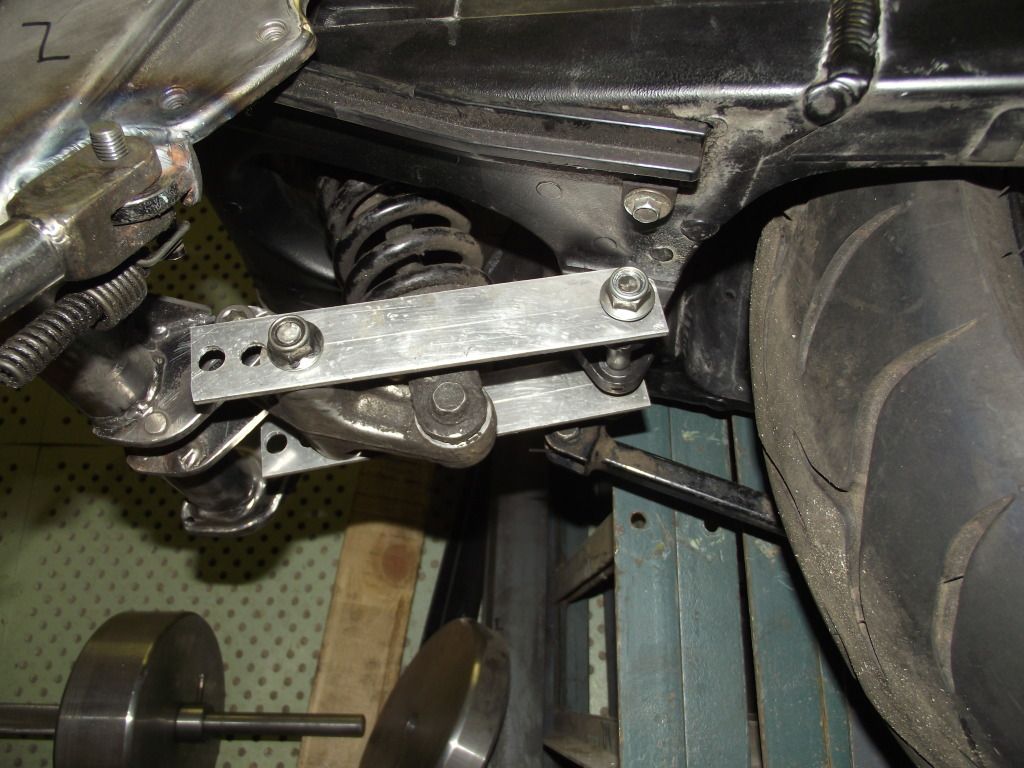

made mockup dog bones with 3 center to center distances but i gunna make threaded ones later
also used a front end to make a mockup roller from the Ozzlem project but justed the legs length to gixxers usd forks i use for Hades

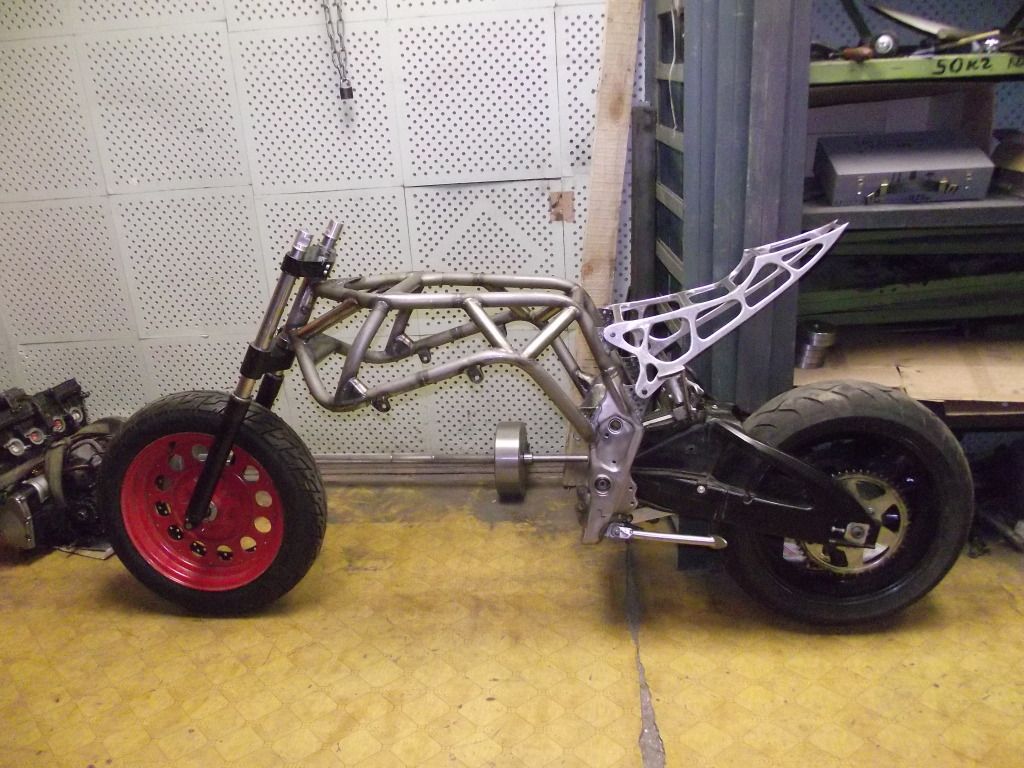

140mm center to center
http://i1175.photobucket.com/albums/...r/bones140.jpg
http://i1175.photobucket.com/albums/.../roller140.jpg

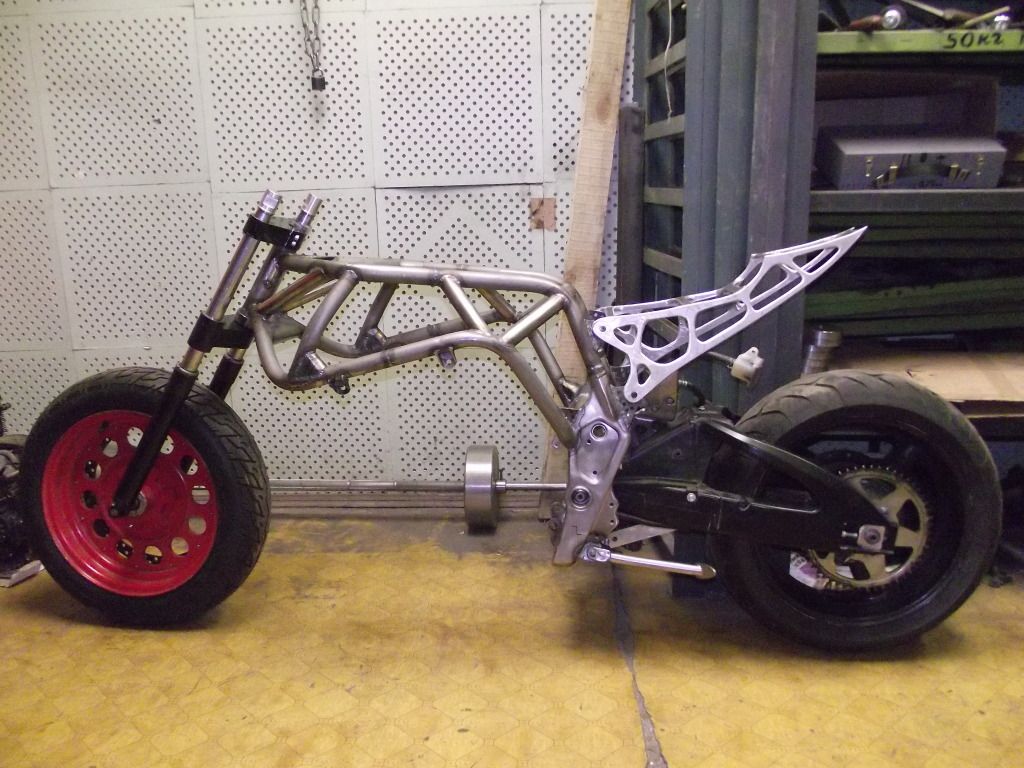

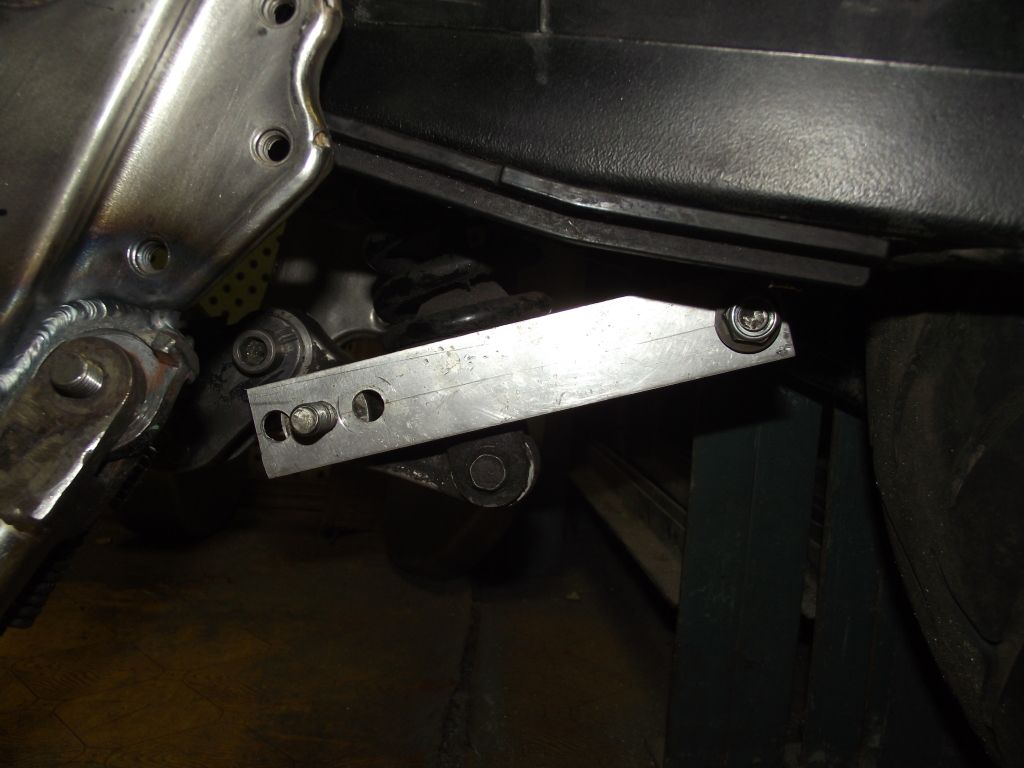

158mm center to center
and 50mm lower in the middle and without droppin the front end
http://i1175.photobucket.com/albums/...r/bones158.jpg
http://i1175.photobucket.com/albums/.../roller158.jpg
